Butterfly Valves: Key Features and Common Applications

Understanding Butterfly Valve Mechanics and Design

Core Components: Disc, Stem, and Seat Configurations

It is a complex mechanism which consists of essential parts including disc, stem and seat. Differences in disc design -- such as solid and perforate designs -- can have a significant impact on flow dynamics and dictate performance. For instance, the control of a solid disc does not lose much pressure, but also does not allow a good distribution of flow along the grid of the fluida"s movement, while the flow distribution of a perforated disc is superior and can be used in certain applications. The stem is important for sealing, no leakage for the performance of the operation, while ensuring that the disc is in the flow passage. Other seat options including resilient and metal seats also affect the valve’s endurance in different demands. Resilient seats provide great seal-ability and are preferred where tight shut-off is needed, and metal seats are more resistant to temperature and pressure, ensuring longer valve life in the most severe environments.

Quarter-Turn Operation: Simplified Flow Control

A characteristic of butterfly valves is that they open, close, and reorient in 90 degrees. This system minimizes response time and is effective in control operations where rapid control is required to avoid system breakdowns. A mere quarter turn operation makes for ease of use and enables less than five seconds of rest time between the operation of the various steps in the pneumatic system. Particularly, there is evidence that the use of quarter-turn butterfly valves in industrial settings results in a substantial reduction in energy consumption. Compact size and fast actuation reduce energy losses in systems in which flow switching is frequent. When optimized for efficiency and reliability, the quarter-turn butterfly valve is practical in a wide range of industrial applications.

Key Performance Features of Butterfly Valves

Compact Construction for Space-Constrained Installations

easy and space-saving installation thanks to the light and compact design of butterfly valves. Butterfly valves are unique in that they have a small footprint, which allows them to be easily used in confined piping system common to certain industries, like chemical processing and oil & gas. Their build enables them to slot perfectly into dense systems and work just as well for the operation. For instance, butterfly valves' use in compact offshore platforms when roon-iing space is scarce, demonstrates the preference for butterfly valves over bulkier valve-types such as gate valves. If one already has the footprints for the various valve types to choose from, butterfly have (in general) excellent 'forcfits' for the small-space TIVs.

High-Performance Sealing in Extreme Temperatures

Butterfly valves utilize high technology sealing systems that are capable of offering reliable performance under both high and low extremes of temperature. These sealing options, such as PTFE, reinforced elastomers, guarantee longevity and leakfree performance even under the harshest hot and cold conditions. These are critical attributes in power plants, where temperature ranges are extreme and failure can cause severe disruption to operations. Applications, such as power generation and aerospace, require valves that are able to withstand high heat without sacrificing the integrity of the valve. This paper uses a nuclear power plant case study to demonstrate that butterfly valves can provide a tight shut-off under severe temperature fluctuation, which results in no leakage while processing and better system performance.

Common Applications Across Industries

Water Treatment Plants: Flow Regulation and Isolation

Butterfly Valves are important to keep the water treatment plants running. These general purpose valves are commonly used to control the ON-OFF and throttling functions for water flow and to isolate treatment units to support reliable operation. Market Outlook As per the industry perspective, the expenditure on water and wastewater infrastructure has been growing, which makes cost-effective solutions such as butterfly valves all the more important. These valves are particularly flattering to flow-control and make important contribution towards improvements in efficiencies of systems. For example, the isolating functions of butterfly valves are essential to emergency actions, thus facilitating a fast shut-off in order to avoid contamination or system damage, thus contributing to the reliability and safety of water treatment services.

HVAC Systems: Energy-Efficient Air Handling

In air conditioning units butterfly valves play a key role in air flow control, hence they help reduce electrical and thermal energy consumption. Efficient air distribution and temperature control is critical to managing the optimal atmosphere of the indoor space and that’s exactly what these valves are designed to do. HVAC industry shows that HVAC systems with butterfly valves are more energy effiective than those with traditional type valve. According to published reports, the implementation of these advanced technology units in HVAC has been responsible for significant energy savings and aid in the pursuit of sustainability initiatives within larger corporations. Moreover, according to industry trends, more and more smart technologies are being used in HVAC for which butterfly valves demand will be increased to provide the functioning capability and efficiency boost.

Material Selection for Specific Environments

Stainless Steel vs. PTFE-Lined Valves

Two common choices for butterfly valve materials is stainless steel and PTFE-coated valves. Stainless steel valves are highly regarded for their strength and resistance to high temperature, making them the ideal valve for applications that require toughness. On the other hand, PTFE-lined controls are ideal for applications in which chemical resistance is a priority, providing superior defense against corrosive mediums. The choice among such materials often depends upon specific requirement of the application. For instance, the PTFE lined valve may have the advantage of a higher chemical resistance in industries where the chemicals are unfriendly in a dynamic chemical process as against stainless steel valves when there is the need for high mechanical strength and performance in a hardy condition. Industry statistics show that stainless steel valves usually last longer and need less maintenance in tough applications, while PTFE lined valves require more frequent service due to their softer lining material. Knowing where each one shines can help buyers make smart decisions.

Corrosion Resistance in Chemical Processing

When applied for chemical processing, the material of construction of the valve should be properly selected for avoiding the risk of long-term failure or malfunction. Materials such as PTFE and certain alloys are needed in this context, because they are capable of resisting the strong chemicals that are traditionally used here. According to research conducted by the Chemical Engineering Journal, valve issues caused by corrosion can cause massive hiccups in operations and downtime that can be extremely expensive. So, protecting your machinery with the best corrosion-resistant butterfly valve essential both from a safety and economic standpoint. Among the numerous types of industry standards are those developed and published by ASTM (the American Society for Testing and Materials), which establish the methodologies used in evaluating the performance and safety of chemicals in various environments. These are essential in terms of both performance and compliance. By following these guidelines, businesses will be able to mitigate the cost of replacing valves as well as suffering potential chemical spills.

Butterfly Valve Types and Specialized Configurations

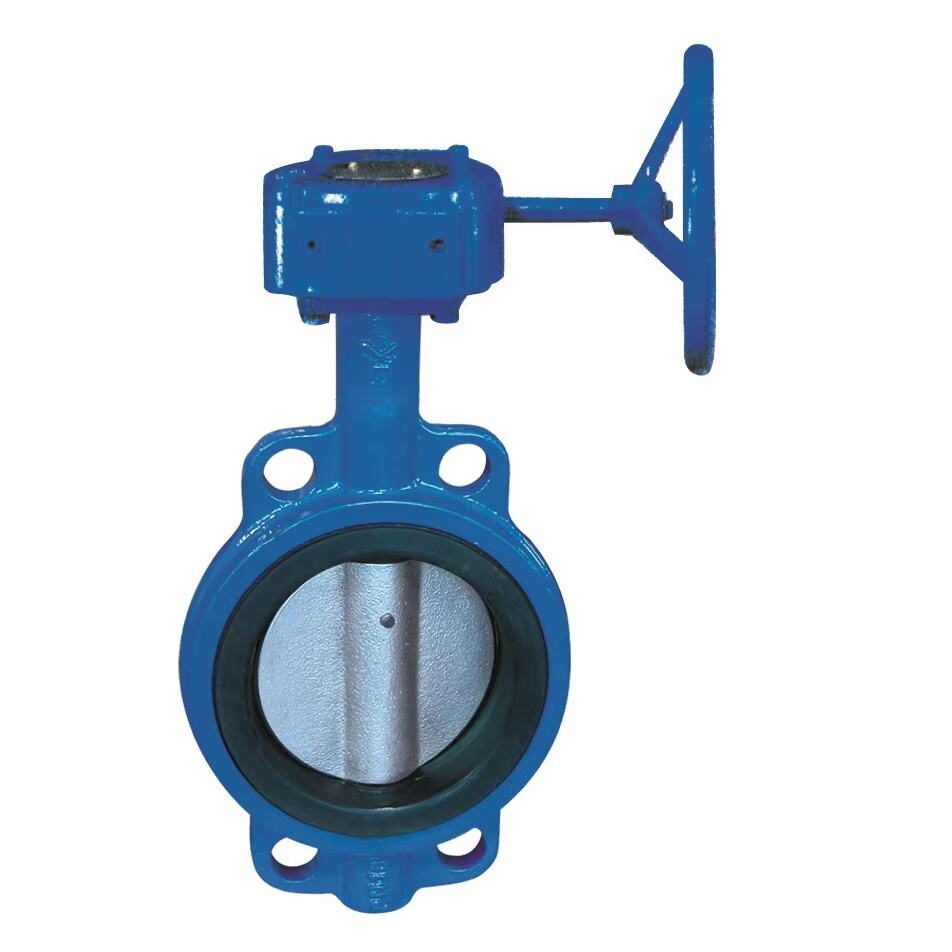

Wafer vs. Lug-Style Mounting Systems

Knowing the mounting configuration of butterfly valves is imperative when choosing the best fit for your application. The difference between wafer and lug type butterfly valve is only one: face to face dimension. Wafer style valves are meant to fit between standard flanges, using standard flange bolts to bolt the valve in place. This design is a small and lightweight design that is cost-effective and quick and easy to install. But these valves are not suitable for dead-end service. In comparison, lug-style valves have threaded inserts and can be installed using either side for bolting, which makes them ideal for end-of-line or dead-end service.

The installation conditions also determine the selection between these two kinds. Wafer style is frequently used for less stringent applications, water distribution systems for example, where cost is a concern. Lug style valves are a desired configuration where the valve may be a pipe-end valve, allowing maintenance or withdrawal of the valve for replacement without system shutdown. Valve manufacturers’ experts say that the decision to use wafer or lug is determined by whether your system needs pressure resilience and if it must be able to support different types of media.

Triple Offset Valves for Critical Services

Triple offset butterfly valves are one of the most important development in the valves technology, particularly for the high pressure service. The valves are constructed with an integrated engineering concept where metal surfaces of the control valve do not touch which reduces friction and extends life. The triple offset feature includes three offsets: two offsets for shaft orientation and a third for the geometry of the sealing surface wedge. This feature enables a tight, bubble-tight seal that is a mandate for critical service applications as evident in the oil and gas industries.

We Understand Harsh Service ConditionsThere's no question, triple offset valves are a necessity in industries like oil & gas, petrochemical, and power generation. They are designed to handle high pressure and a wide variety of fluids and materials and work well with high temperatures. Researches emphasize that such valves promote operational efficiency & minimize leakage and service requirements. Characterized by exceptional sealing performance, including zero leakage in API 598 testing, they are the ideal products for producing the peace of mind that comes with unparalleled safety–especially in critical service applications.

Operational Advantages Over Alternative Valves

Lower Maintenance Costs and Downtime

Butterfly type valves are preferred in the majority of industries as they require least maintenance as against gate / globes. These valves are of simple design and relatively few moving parts, which tends to keep wearing to a minimum and make for infrequent maintenance. Thus, businesses can save a lot due to the fact that maintenance can be less and cheaper intervention. Butterfly valves can reduce maintenance costs So reports Golf Courses Industry News according to industry research, compared to other valves, it is possible to save up to 30 percent on maintenance since they last longer, are easier to maintain and do not require so many parts to be replaced. The lasting life of butterfly valves also leads to longer service intervals, reducing plant downtimes and optimizing production stabilitity.

Superior Flow Capacity Compared to Gate Valves

Butterfly valves have a higher flow capacity than gate, globe, or ball valves of the same size. This is due to their unconventional disc design, allowing large flow area and low pressure loss in operation. The improved flow performance of butterfly valves increases system efficiency resulting in reduced system operating costs. As an example, in the fields of water conditioning and wastewaters treatment, very advantageous have results from the application of these valves, leading to a reduced energy consumption and increase equipment productivity. These benefits, aside from being practical, highlight their suitability in industries that require the optimal control of flow, making them a participant instead of gate valves.

Selection Criteria for Optimal Performance

Pressure Class Alignment with System Requirements

Selecting the proper pressure class is a critical element in the successful operation of a valve and for maintaining system integrity. Businesses will not experience costly downtimes when they apply butterfly valves according to the pressure class of the system to help ensure the integrity of their operations. Butterfly valves are available in multiple pressure ratings, such as class 150, class 300 and class 600, depending on the application they are for. Recommendations from professionals indicate that operating pressure, temperature and media type should be taken into account to determine the suitable pressure class for a project. This precise orientation reduces the potential for valve damage and system downtime risk and maximizes system performance.

Actuator Compatibility for Automation Integration

It's important to be able to automation the actuators and butterflies together in the most effective way. Butterfly valves can be actuated using a wide range of actuators such as electric, pneumatic, and a number of different types. Actuator selection is governed by such considerations as the necessary torque, environmental conditions, and desired precision of control. Industry cases illustrate the importance of actuator compatibility, for example in the oil and gas sector where accurate flow control is essential. Compatible modes of operation allow for smooth and efficient performance, increasing overall system efficiency and preventative maintenance.

FAQ Section

What is the primary function of a butterfly valve?

The primary function of a butterfly valve is to regulate and isolate flow within a system, allowing for precise control over fluid management in various industrial applications.

How does a quarter-turn operation benefit butterfly valve performance?

A quarter-turn operation allows for rapid opening and closing of the valve, enhancing response time and reducing physical effort, which is ideal for both energy savings and operational safety.

Which industries benefit most from using butterfly valves?

Industries such as water treatment, HVAC, chemical processing, and oil & gas benefit from the versatile and efficient performance of butterfly valves, especially in space-constrained and high-temperature conditions.

How do butterfly valves differ from gate valves in terms of flow capacity?

Butterfly valves provide superior flow capacity compared to gate valves due to their disc design, which offers a larger flow area, resulting in reduced pressure drops and improved efficiency.

What materials are best for harsh chemical environments?

PTFE-lined valves are ideal for harsh chemical environments due to their excellent chemical resistance, whereas stainless steel valves are chosen for their strength and durability in high-pressure settings.
