Exploring the Role of Valves in Fluid Control Systems
In the field of industrial fluid handling, selecting the right type of valve is essential for system efficiency, durability, and safety. Among the various valve types available, the butterfly valve is one of the most commonly used due to its simple structure, low cost, and versatility. Whether installed in water treatment facilities, chemical processing plants, or HVAC systems, butterfly valves offer dependable performance with minimal space requirements.
Their lightweight design, low-pressure drop, and rapid actuation make them suitable for both shut-off and throttling services. As industries continue to evolve, understanding the design principles and operational mechanisms of butterfly valves becomes increasingly important. This article will walk through their structural components, operating principles, classifications, applications, and maintenance insights, helping users make informed decisions for long-term valve performance.

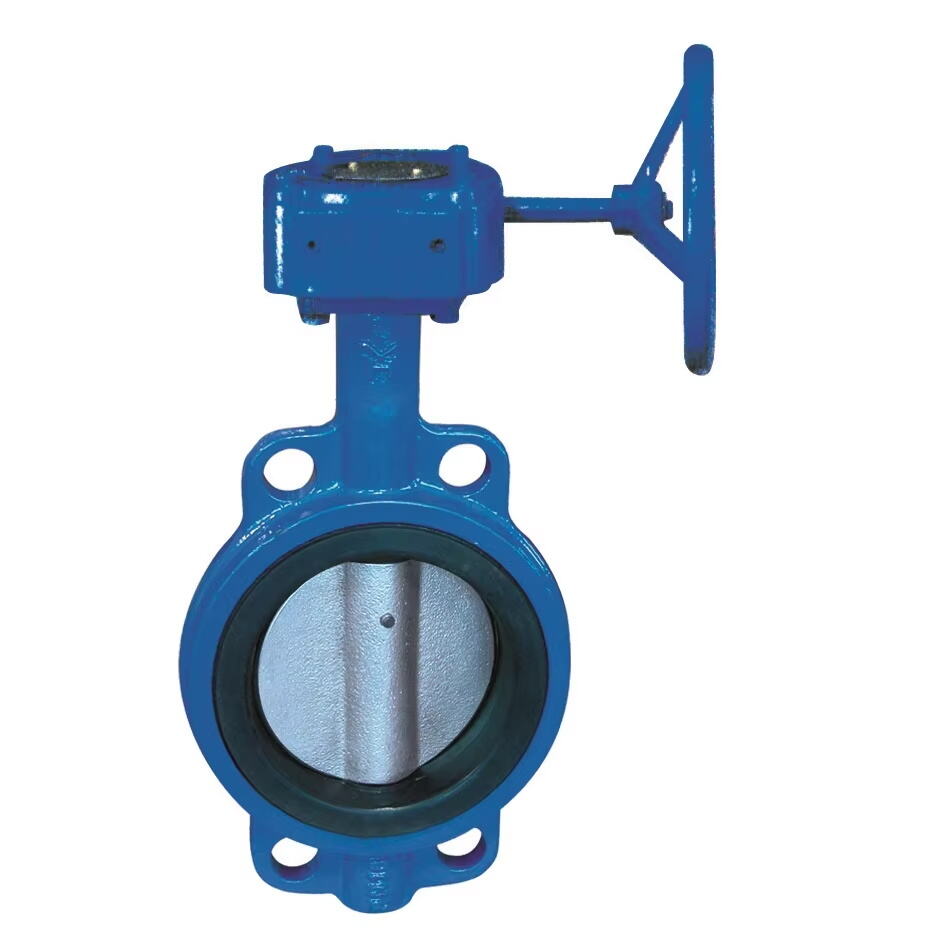

Structural Components of Butterfly Valves
The Valve Body and Disc
The valve body provides the framework that supports all other components of a butterfly valve. It is designed to be mounted between pipe flanges using various end connection types, such as lug, wafer, or flanged designs. The shape and size of the body impact how the valve integrates with the pipeline system.
At the core of the butterfly valve’s functionality is the disc, which rotates to regulate the flow of fluids. The disc is positioned centrally in the body and is connected to the actuator shaft. When the disc is turned, it either blocks or permits flow through the valve. Its shape and material composition directly influence sealing capability and flow efficiency.
The Shaft and Seal Assembly
The shaft, sometimes referred to as the stem, is responsible for rotating the disc inside the valve. It can be manually operated or automated using an actuator. Durability and corrosion resistance are essential for shafts since they are under constant mechanical stress and in contact with the process media.
Seals or seats are critical for preventing leakage around the valve disc. These are typically made from elastomeric materials like EPDM, NBR, or PTFE. Some designs feature a resilient-seated mechanism, while others use metal seats for high-temperature or high-pressure applications. A well-designed seal ensures tight shut-off and system reliability.
Operating Principles Behind Butterfly Valves
Quarter-Turn Motion Mechanics
Butterfly valves operate on a quarter-turn motion principle. Turning the valve handle or actuator 90 degrees rotates the disc from fully closed to fully open or vice versa. This fast operation is ideal for processes that require frequent or rapid on/off control.
Because the disc remains within the fluid flow even when open, there is always some pressure drop. However, the design is efficient enough to allow high flow rates with minimal resistance. The simplicity of the quarter-turn design also reduces mechanical wear and increases service life with proper use.
Flow Control Capabilities
While butterfly valves are often used for shut-off applications, they can also be used to throttle flow. The degree of opening determines how much fluid passes through the valve. Certain designs, particularly those with precision-machined discs and eccentric offsets, offer improved throttling control.
However, it’s important to note that not all butterfly valve types are ideal for throttling. Improper usage can lead to cavitation, noise, or seat damage. Understanding the application’s pressure, flow rate, and media characteristics is essential before using a butterfly valve for modulation purposes.
Classification and Types of Butterfly Valves
Concentric and Offset Designs
Concentric butterfly valves, where the stem passes through the center of the disc and the seat is in the center of the valve body, are commonly used in low-pressure applications. These valves rely on a rubber seat to provide a tight seal and are often used in water systems and general-purpose flow control.
Offset butterfly valves include single, double, and triple-offset designs. In these, the disc and stem are positioned off-center to reduce wear and improve sealing during operation. Triple-offset butterfly valves, for example, are used in high-temperature, high-pressure, or critical isolation systems because they create a frictionless seal using metal components.
Manual, Electric, and Pneumatic Variants
Butterfly valves can be operated manually using a lever or gear, or they can be automated with electric, pneumatic, or hydraulic actuators. Manual valves are suitable for small systems or where frequent actuation is not needed.
Automated butterfly valves are used in larger or more complex systems where remote operation and feedback control are required. The choice of actuator depends on factors like available power sources, response time requirements, and control system integration. Regardless of the actuation method, the butterfly valve's core function remains consistent.
Applications Across Industries
Water and Wastewater Management
One of the most common uses for butterfly valves is in water and wastewater treatment systems. Their corrosion-resistant materials, compact size, and low maintenance requirements make them ideal for these environments. They are used to regulate the flow of clean water, grey water, and sludge with high efficiency.
Butterfly valves are also preferred in systems requiring large-diameter piping due to their reduced weight compared to other valve types. Their ability to perform reliably in submerged or partially buried installations adds to their utility in municipal projects.
Chemical and Process Industries
In the chemical industry, butterfly valves are used to control aggressive or hazardous fluids. The choice of materials—such as PTFE-lined discs and stainless steel bodies—ensures compatibility with corrosive substances. Valves must also be designed to handle extreme temperatures and pressures.
These valves are often integrated into process automation systems, allowing operators to remotely manage fluid distribution. High-cycle applications benefit from the robust design and quick response of butterfly valves, ensuring both safety and operational efficiency.
Advantages of Using Butterfly Valves
Space and Cost Efficiency
Butterfly valves are generally more compact and lighter than other valve types, such as gate or globe valves. This makes them easier to install and maintain, especially in space-constrained environments. The cost of materials and production is also typically lower, offering budget-friendly options without sacrificing quality.
Their design allows for minimal structural support requirements, which can reduce the total cost of pipeline construction. Additionally, their straightforward mechanism means fewer parts to fail, resulting in lower maintenance costs over time.
Versatility and Customization
From water systems to food-grade applications, butterfly valves are incredibly versatile. Their components can be customized to meet industry-specific standards, such as sanitary-grade finishes for food processing or fire-safe designs for petroleum applications.
Manufacturers often offer a wide range of sizes, materials, and accessories. This level of customization ensures that the butterfly valve can be tailored to suit any operational requirement without compromising performance.
Maintenance and Operational Best Practices
Routine Inspection Guidelines
Regular inspections help ensure that butterfly valves continue operating smoothly. Check for signs of leakage, corrosion, or irregular disc movement. Verify that seals are intact and that the actuator functions correctly if present.
Inspection intervals vary by application, but a general rule is to perform visual checks monthly and detailed servicing every six to twelve months. Record all findings to monitor wear patterns and predict potential failures.
Cleaning and Component Replacement
Clean the valve interior and disc regularly, especially in systems with viscous or abrasive media. Accumulated debris can impede flow and damage the disc or seat. Use appropriate cleaning agents that won’t degrade the valve material.
When components like seals or seats show signs of wear, replace them promptly. Using OEM replacement parts is recommended to maintain the butterfly valve’s performance characteristics and avoid compatibility issues.
Design Trends and Innovations
Advances in Sealing Technology
Recent improvements in sealing materials and geometries have greatly enhanced the performance of butterfly valves. Multi-layer seals, metal-to-metal contact surfaces, and temperature-resistant elastomers now allow for tighter shut-offs and longer service life.
These innovations help reduce emissions, prevent leakage, and improve reliability in demanding applications. Advanced sealing designs also simplify maintenance and reduce downtime during servicing.
Integration with Smart Systems
Butterfly valves are increasingly being integrated with smart sensors and IoT-based monitoring platforms. These systems provide real-time data on valve position, torque, flow rate, and condition. Predictive maintenance becomes more achievable with accurate diagnostics and performance tracking.
Such integration enhances operational efficiency, especially in industries with complex fluid networks. Smart butterfly valve systems reduce the need for manual checks and allow centralized control across large facilities.
Frequently Asked Questions
What is the primary function of a butterfly valve?
The main function of a butterfly valve is to regulate or isolate fluid flow within a piping system using a rotating disc.
Its quarter-turn mechanism makes it suitable for fast shut-off and efficient flow control in various industrial settings.
What materials are commonly used in butterfly valve construction?
Common materials include stainless steel, ductile iron, PVC, and PTFE, depending on the application and media being handled.
Selecting the correct material ensures durability, corrosion resistance, and compatibility with process conditions.
Can a butterfly valve be used for throttling?
Yes, butterfly valves can be used for throttling, especially if they have precision offsets or are designed for modulating flow.
However, it is important to evaluate the application parameters to avoid seat wear or cavitation.
