Why Check Valves Are Critical in Pumping Systems

The Importance of Backflow Prevention in Fluid Systems

Pumping systems are essential in various industrial, commercial, and residential applications. Their efficiency and durability rely heavily on the components used within the system, especially the check valve. Acting as a gatekeeper to ensure one-way flow, the check valve is indispensable when it comes to maintaining operational integrity and protecting equipment from damage. Understanding its role in depth helps system designers and engineers make informed decisions.

Basic Functions of Check Valves

Preventing Backflow to Protect Equipment

One of the primary purposes of a check valve is to prevent backflow in the system. Backflow can result in contamination, pressure buildup, and equipment failure. A properly installed check valve ensures that fluid flows in only one direction, preventing potentially costly repairs and system downtime. In some systems, even brief reverse flow can damage sensitive components or cause calibration errors in instruments.

Maintaining Pressure Stability

Check valves are also crucial for pressure management. By preventing reverse flow, they help maintain consistent pressure levels within the system. This is especially important in multi-stage pump systems where pressure consistency is critical for performance. Sudden pressure drops or fluctuations can disrupt the process and reduce operational efficiency.

Applications Across Industries

Water and Wastewater Management

Check valves play a key role in municipal and industrial water systems. They help prevent contamination of clean water supplies and ensure wastewater flows correctly through treatment stages. In these systems, the reliability of a check valve is non-negotiable. Emergency backups, surge tanks, and booster stations all depend on them.

Oil and Gas Operations

In oil and gas environments, a malfunctioning check valve can lead to hazardous situations. These valves manage fluid movement through pipelines, ensuring safety and efficiency during extraction and transport. Their resilience in high-pressure settings is a major factor in their widespread use. They also help control flow direction during drilling, fracturing, and injection processes.

HVAC and Building Systems

Heating, ventilation, and air conditioning (HVAC) systems rely on check valves to manage the direction of refrigerants and water. In large buildings or commercial complexes, maintaining efficiency and avoiding cross-flow between systems are key responsibilities of check valves.

Food and Beverage Processing

In hygienic environments like food processing plants, check valves ensure that clean-in-place (CIP) systems work as intended, avoiding contamination between different fluid lines. Stainless steel sanitary check valves with smooth surfaces are often required by regulatory bodies.

Enhancing System Efficiency

Reducing Energy Consumption

Efficient flow control through the use of check valves contributes to lower energy usage. Pumps do not have to work as hard against backflow pressures, which reduces operational costs and extends the life of pumping equipment. Over time, this energy savings can represent a significant portion of a facility's budget.

Minimizing Downtime and Maintenance

Well-designed check valve systems minimize the need for frequent maintenance. By reducing stress on pumps and associated components, they help prolong service intervals and increase overall system uptime, which is crucial in mission-critical operations. A system with properly functioning check valves is less prone to pressure shocks and pump failures.

Types of Check Valves for Different Needs

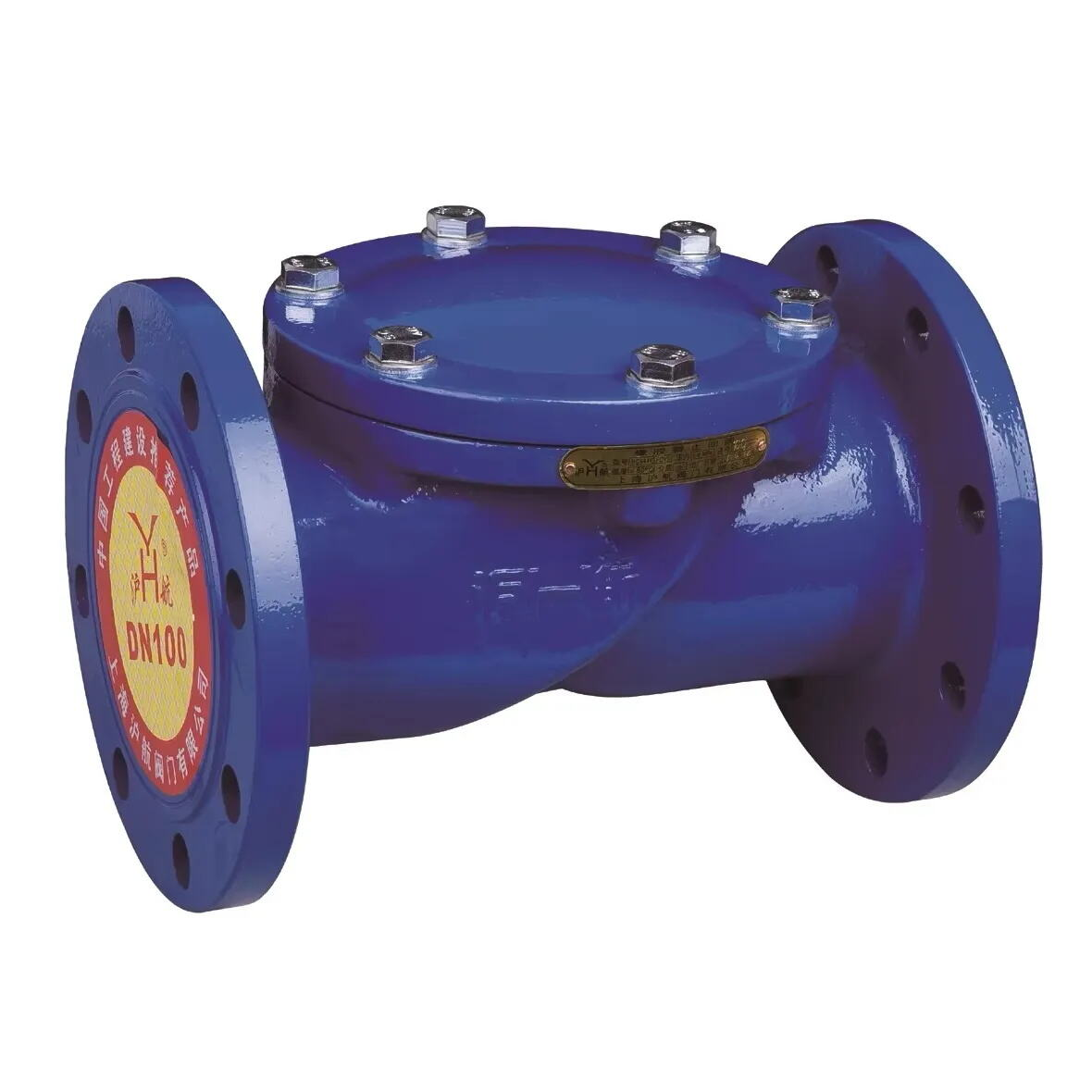

Swing Check Valves for Low-Pressure Applications

Swing check valves are commonly used in systems where pressure conditions are relatively low. Their simple design makes them cost-effective and easy to maintain, making them suitable for non-critical applications. They are often found in drainage, irrigation, and sump pump systems.

Ball and Piston Check Valves for High-Pressure Environments

For systems under high pressure or involving aggressive media, ball and piston check valves offer better sealing and reliability. These valves are often found in industrial processing plants and energy production facilities. They handle compressible and non-compressible fluids efficiently, even under extreme conditions.

Dual Plate and Wafer Check Valves for Compact Systems

In systems where space is limited, dual plate or wafer check valves are preferred due to their slim profiles. They are lightweight, easy to install, and can handle a variety of media. Their design also contributes to low pressure drop, helping improve system efficiency.

Material Considerations in Valve Selection

Corrosion Resistance in Harsh Environments

The material used in a check valve must be compatible with the fluid and the operating conditions. For corrosive media, stainless steel or specially coated materials ensure longevity and prevent leakage that could compromise safety. In marine or chemical applications, using the wrong material can lead to rapid failure.

Weight and Cost Trade-Offs

While metal valves offer durability, plastic or composite check valves may be more suitable in applications where weight and cost are concerns. Choosing the right material balances performance, cost, and longevity. Thermoplastics are often used in chemical processing plants because of their excellent corrosion resistance.

Temperature and Pressure Ratings

Different materials have specific limitations in terms of temperature and pressure. Selecting a check valve that meets or exceeds the system’s requirements is critical to avoid deformation, cracking, or malfunction over time.

Design and Installation Best Practices

Proper Orientation and Placement

Incorrect installation of a check valve can lead to malfunction. Proper orientation relative to flow direction and strategic placement within the system ensures optimal performance and prolongs component life. Always follow manufacturer guidelines to prevent installation errors.

Considering Flow Velocity and Pressure Drops

When selecting a check valve, flow velocity and potential pressure drops must be considered. Oversizing or undersizing the valve can lead to inefficiencies or mechanical failures, undermining the purpose of having a check valve in the first place. Engineers often perform detailed simulations to get sizing right.

Avoiding Water Hammer Effects

Check valves should be chosen and installed to minimize water hammer—a surge of pressure caused by a sudden change in flow direction. Slow-closing valves or those with built-in dampening systems help mitigate this risk.

Innovations in Check Valve Technology

Smart Valve Integration

Recent advancements have led to the development of smart check valves with monitoring capabilities. These can provide real-time data on flow, pressure, and valve status, allowing predictive maintenance and system optimization. Integration with industrial IoT platforms is becoming more common.

Improved Sealing Mechanisms

New sealing materials and designs reduce leakage risk and improve overall reliability. Enhanced seals mean fewer system interruptions and reduced risk of contamination, especially in sanitary or pharmaceutical settings. Elastomeric and Teflon seals are being engineered for longer life and higher resistance.

Noise and Vibration Reduction

New designs are being tested for their ability to reduce noise and vibration within piping systems. These benefits enhance workplace safety and comfort, especially in commercial and high-occupancy buildings.

Environmental and Regulatory Compliance

Supporting Green Infrastructure

By preventing leaks and optimizing energy use, check valves contribute to sustainable pumping system design. They are integral in meeting green building standards and environmental regulations. Using check valves in graywater and rainwater harvesting systems can improve LEED certification scores.

Meeting Industry Standards

Check valves must comply with a variety of standards depending on their use case. Whether it’s NSF certification for potable water or API standards in the oil sector, compliance ensures safety and performance. Understanding these standards also facilitates global product distribution.

Reducing Emissions and Waste

Check valves help reduce fluid and gas emissions by maintaining system integrity. This supports efforts to minimize environmental impact and meet government regulations, such as those from the EPA or local environmental agencies.

Cost-Benefit Analysis in Long-Term Operations

Upfront Investment vs. Lifecycle Costs

While some check valves may come with a higher initial cost, their long-term savings in energy, maintenance, and system downtime make them a smart investment. Lifecycle cost analysis highlights the true value of a reliable check valve. Forward-thinking companies often factor in total ownership costs.

Avoiding Hidden Operational Risks

Ignoring the role of a check valve can lead to unexpected failures and emergency shutdowns. Integrating high-quality check valves into your system design is a proactive strategy that prevents future losses. Choosing the right model can also simplify future upgrades or expansions.

Return on Investment through Performance Reliability

A reliable check valve minimizes disruptions and allows systems to operate at peak efficiency. This boosts productivity, reduces emergency costs, and can generate a measurable return on investment in industries that rely heavily on uptime.

Frequently Asked Questions

What is the primary purpose of a check valve in a pumping system?

The main purpose of a check valve is to prevent reverse flow, ensuring that fluid moves in only one direction through the system.

How do I choose the right check valve for my application?

You should consider factors such as fluid type, pressure, flow rate, and environmental conditions. Material compatibility and valve design are also critical.

Can a check valve fail, and what are the signs?

Yes, check valves can fail due to wear, corrosion, or improper installation. Common signs include system pressure fluctuations, backflow, or unusual noises.

Are there maintenance requirements for check valves?

Although check valves are generally low-maintenance, periodic inspections can help ensure they are functioning correctly and extend their lifespan.

Are smart check valves worth the investment for small systems?

Smart check valves can be beneficial even in small systems, especially where monitoring and preventive maintenance are priorities. They can help reduce unplanned outages and maintenance costs.

What role do check valves play in green infrastructure?

Check valves prevent leaks and optimize fluid control, which supports water conservation and energy efficiency goals in sustainable infrastructure projects.
