Huhang C2F force transfer compensation joint consists of a flange loose sleeve compensation joint

Huhang C2F force transfer compensation joint consists of a flange loose sleeve compensation joint

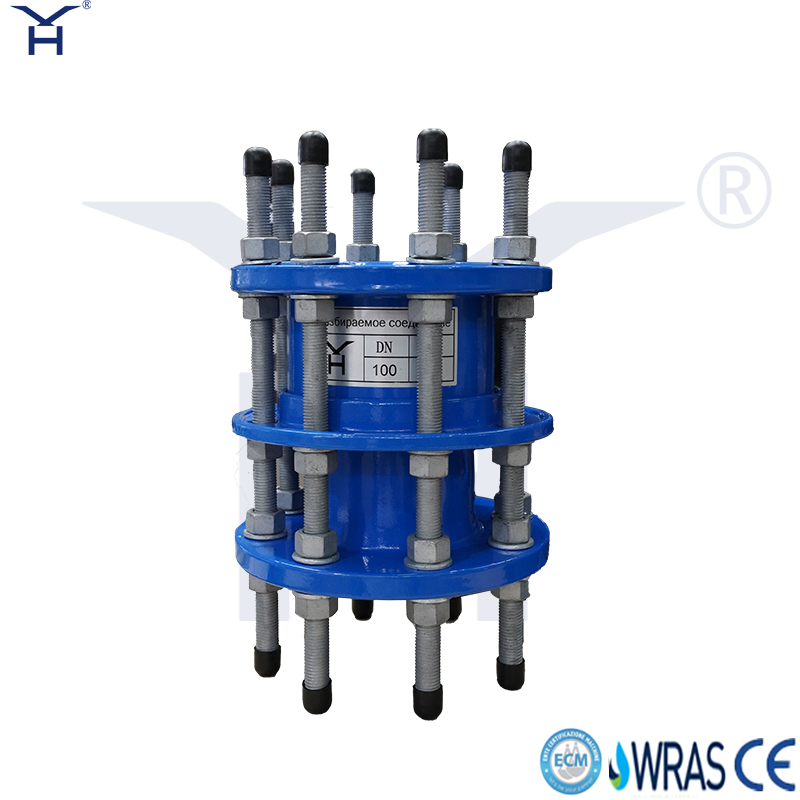

The C2F force transfer compensation joint consists of a flange loose sleeve compensation joint, a short pipe flange, force transfer screws and other
components. It transmits the pressure thrust of the connected parts and compensates for pipeline installation errors, without absorbing axial displacement. It is a dedicated device mainly used for the loose sleeve connection with accessories such as pumps and valves.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Features

Helps absorb axial forces generated at pipeline ends and blind flanged connections, reducing stress on the piping system.
Transfers pressure thrust from connected equipment to the pipeline support structure.
Allows for minor alignment differences during pipeline installation.
Provides flexibility for installing, servicing, or replacing pumps and valves.
Offers strong resistance to tension and compression, with reliable sealing performance.
Installing a force transmission joint near pump outlets and pipeline elbows helps distribute thrust and reduce the risk of impact damage to nearby pipes or equipment.

Technical Specifications

Flange standards: The flange connections are designed in accordance with GB/T 17241.1-2024 and GB/T 9124.1-2019.
Testing requirements: Strength and sealing performance are tested in accordance with GB/T 12465-2017.
Product data: Key specifications, main component materials, and overall dimensions are provided in Tables 1, 2, and 3, respectively.

Table 1:Technical Parameters Table
PN	0.6MPa		1.0MPa	1.6MPa	2.5MPa
Body Test	0.9MPa		1.5MPa	2.4MPa	3.75MPa
Seal Test	0.75MPa		1.25MPa	2.0MPa	3.13MPa
Temperature	0℃-80℃
Table 2:Main Component Materials
Part Name		Materials
Body、Gland、Stub Flange		Ductile Iron/Carbon Steel/Stainless Steel
Stud Bolt、Tie Rod、Nut		Carbon Steel/Stainless Steel
Sealing Ring		NBR/EPDM

DN	φD				ΦK				N-Φ				L	L1
	φD				ΦK				N-Φ						δ
	PN6	PN10	PN16	PN25	PN6	PN10	PN16	PN25	PN6	PN10	PN16	PN25			δ
50	140	165			110	125			4-φ1 4	4-Φ19(18)			330±5	200	20
65	160	185			130	145			4-14	4-Φ19(18)		8-Φ19(18)
80	190	200			150	160			4-φ19(18)	8-φ19(18)
100	210	220		235	170	180		190	4-Φ19(18)	8-φ19(18)		8-φ23(22)
125	240	250		270	200	210		220	8-φ19(18)	8-Φ19(18)		8-φ28(26)
150	265	285		300	225	240		250	8-Φ19(18)	8-φ23(22		8-φ28(26)	340±5
200	320	340		360	280	295		310	8-Φ19(18)	8-φ23(22)	12-Φ23(22)	12-φ28(26)
250	375	395	405	425	335	350	355	370	12-φ19(18)	12-Φ2322	12-φ28(26)	12-φ3130
300	440	445	460	485	395	400	410	430	12-φ 23(22	12-φ23(22	12-φ28(26)	16-φ31(30	370±5	220	25
350	490	505	520	555	445	460	470	490	12-φ23(22	16-φ23(22	16-φ28(26)	16-φ34(33	370±5
400	540	565	580	620	495	515	525	550	16-φ23(22	16-φ28(26)	16-Φ31(30)	16-φ3736)	380±5
450	595	615	640	670	550	565	585	600	16-φ23(22	20-φ28(26)	20-φ31(30)	20-φ3736)
500	645	670	715	730	600	620	650	660	20-φ23(22	20-φ2826)	20-φ34(33)	20-φ3736)
600	755	780	840	845	705	725	770	770	20-φ28(26)	20-φ3130)	20-φ37(36)	20-Φ4139)	420±5	240
700	860	895	910	960	810	840	840	875	24-φ28(26)	24-φ31(30)	24-φ37(36)	24-Φ44(42	420±5	240
800	975	1015	1025	1085	920	950	950	990	24-φ31(30)	24-φ34(33)	24-Φ41(39)	24-05048)	560±5	350	30
900	1075	1115	1125	1185	1020	1050	1050	1090	24-φ31(30)	28-①3433)	28-φ41(39)	28-φ50(48)
1000	1175	1230	1255	1320	1120	1160	1170	1210	28-φ31(30)	28-φ3736)	28-Φ44(42)	28-φ5756)
1100	1305	1340	1355	1420	1240	1270	1270	1310	28-φ34(33)	32-φ3736)	32-Φ44(42)	32-05756)	600±5	370
1200	1405	1455	1485	1530	1340	1380	1390	1420	32-φ34(33)	32-Φ41(39)	32-Φ50(48)	32-5756)	600±5
1300	1520	1575	1585	1645	1450	1490	1490	1530	32-φ3736)	32-Φ44(42	32-φ50(48)	32-φ6260)	630±5
1400	1630	1675	1685	1755	1560	1590	1590	1640	36-φ3736)	36-Φ44(42	36-Φ50(48)	36-Φ6260)	630±5
1500	1730	1785	1820	1865	1660	1700	1710	1750	36-φ3736)	36-Φ44(42	36-φ57(56)	36-Φ6260)	670±5	380
1600	1830	1915	1930	1975	1760	1820	1820	1860	40-φ3736)	40-φ50(480	40-φ57(56)	40-Φ6260)	670±5	380
1800	2045	2115	2130	2195	1970	2020	2020	2070	44-Φ4139)	44-①50(48)	44-057(56)	44-φ70	690±5	400
2000	2265	2325	2345	2425	2180	2230	2230	2300	48-Φ44(42	48-φ50(48)	48-Φ62	48-φ70	690±5
2200	2475	2550	2555	2640	2390	2440	2440	2510	52-Φ44(42	52-φ56	52-Q62	52-φ70	730±5
2400	2685	2760	2765	2850	2600	2650	2650	2720	56-Φ44(42	56-φ56	56-62	56-φ70	730±5
2600	2905	2960	2965		2810	2850	2850		60-φ50(48)	60-056	60-Q62		820±5	450	40
2800	3115	3180	3210	-	3020	3070	3100	-	64-φ50(48)	64-056	64-①62	-	820±5
3000	3315	3405	3450		3220	3290	3330		68-50(480	68-φ62	68-φ70		840±5
3200	3525	3610	3650	-	3430	3495	3530		72-φ50(48)	72-Φ62	72-φ70
3400	3735	3815	3850		3640	3700	3730		76-φ5048)	76-Φ62	76-Φ70
3600	3970	4020	4050	-	3860	3905	3930	-	80-φ5756)	80-Φ62	80-φ 70	-
3800	4180	4260			4070	4130			84-φ5756)	84-φ70
4000	4380	4460	-		4270	4330	-	-	88-5756)	88-φ70	-	-

Precision Valve Manufacturing

Professional Valve Manufacturer | Integrated Manufacturing

Raw Material

We select high-quality raw materials according to product specifications and international standards. All incoming materials are carefully inspected to ensure chemical composition, mechanical properties and traceability.

Forging & Casting

Advanced forging and casting processes are used to produce strong and reliable valve bodies and components. Strict process control ensures uniform structure, dimensional accuracy and excellent mechanical performance.

CNC Machining

Our CNC machining equipment provides precise and consistent processing of valve components. Critical dimensions, threads and sealing surfaces are strictly controlled to ensure accurate assembly and reliable sealing performance.

Shot Blasting & Coating

Valve surfaces are professionally shot blasted to remove rust, scale and impurities. Protective coatings are then applied according to customer requirements, providing excellent corrosion resistance and a durable surface finish.

Pressure Testing

Every valve undergoes strict pressure testing before shipment. Body and seat tests are performed according to applicable standards and customer specifications to verify pressure resistance and sealing reliability.

Quality Inspection

Our quality control team conducts comprehensive inspections throughout the production process. Finished valves are checked for dimensions, appearance, materials, pressure performance and overall quality before final approval and shipment.

Ordering Information
Please specify the nominal diameter (DN), pressure rating (PN), flange standard, working medium, operating temperature and required quantity when sending an inquiry. If you have a drawing or special material requirements, please share them with us for confirmation.

FAQ

Q1: What is a force transmission joint used for?
It connects pipeline components while transferring pressure thrust to the supporting structure. It can also provide limited axial adjustment during installation.

Q2: Where is it commonly installed?
Typical locations include pump outlets, valve connections, and pipeline elbows. The installation position and support arrangement should be determined by the piping design.

Q3: Can it compensate for pipeline misalignment?
It can accommodate axial installation tolerances within its specified adjustment range. It is not intended to correct significant angular or lateral misalignment.

Q4: Does the joint eliminate the need for pipe supports or anchors?
No. Pipe supports and anchors must be designed to withstand the forces in the pipeline system.

Q5: What information is needed for a quotation?
Please provide the nominal diameter (DN), pressure rating (PN), flange standard, working medium, operating temperature, quantity, and any special material requirements. A drawing or project specification is also helpful.
