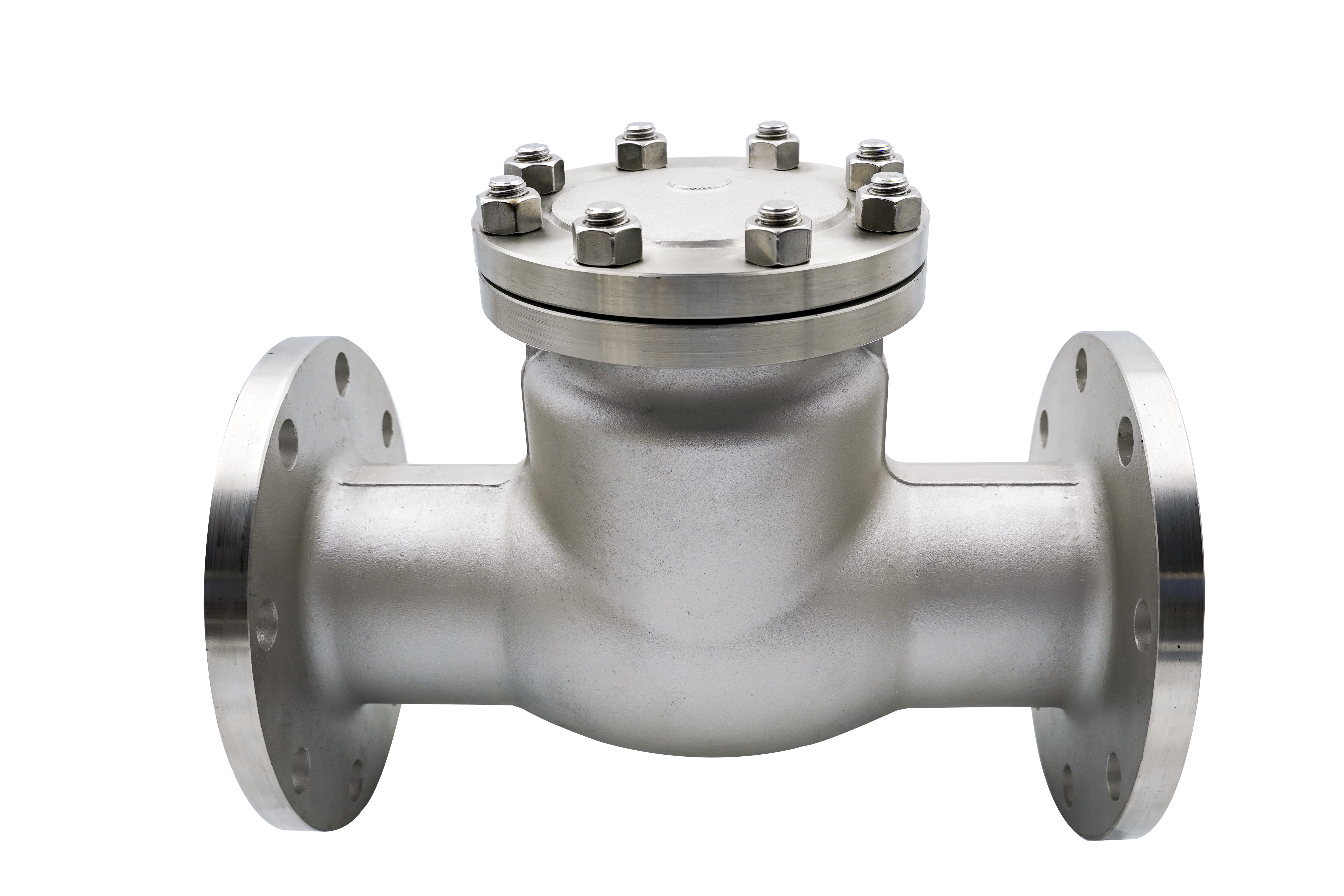

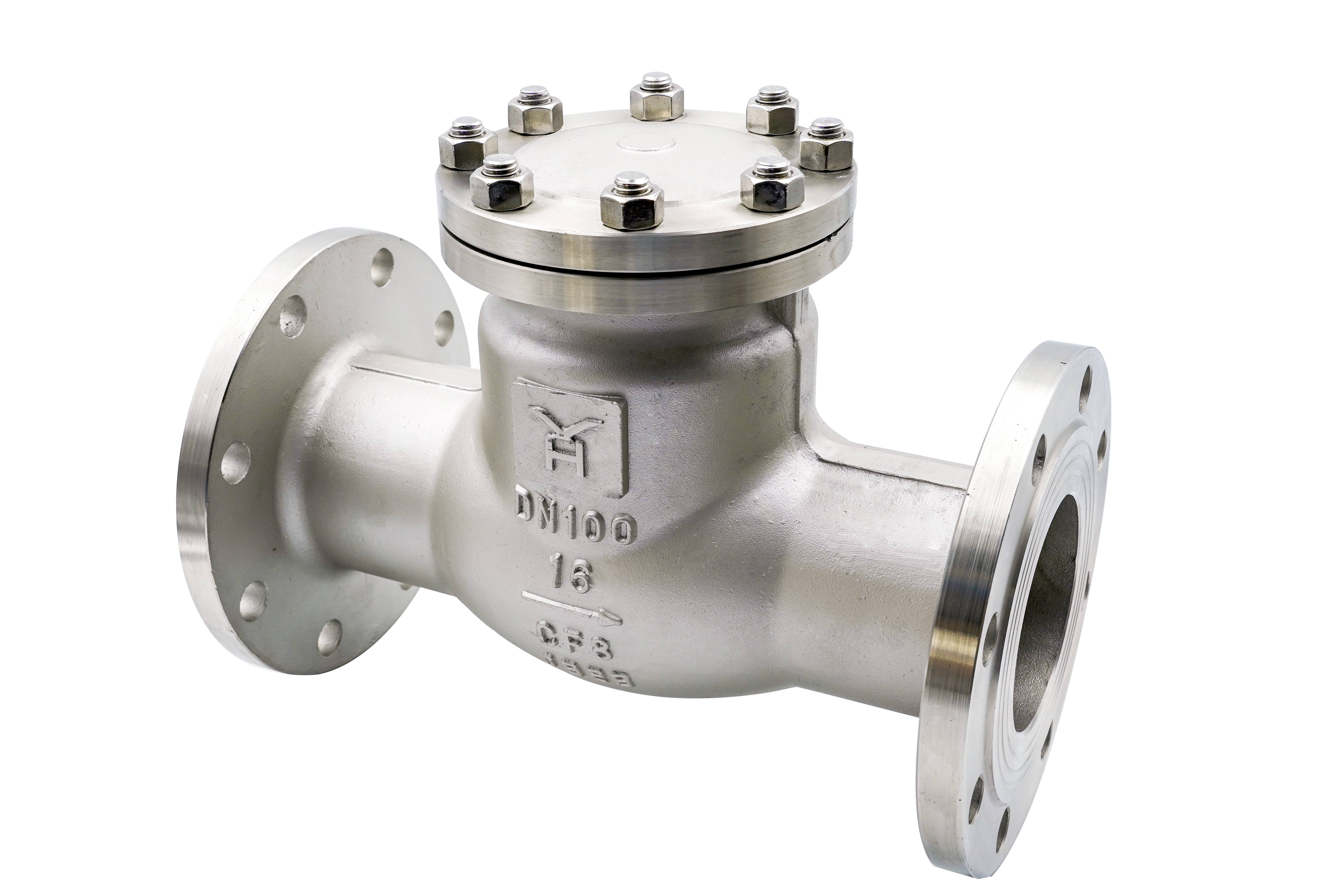

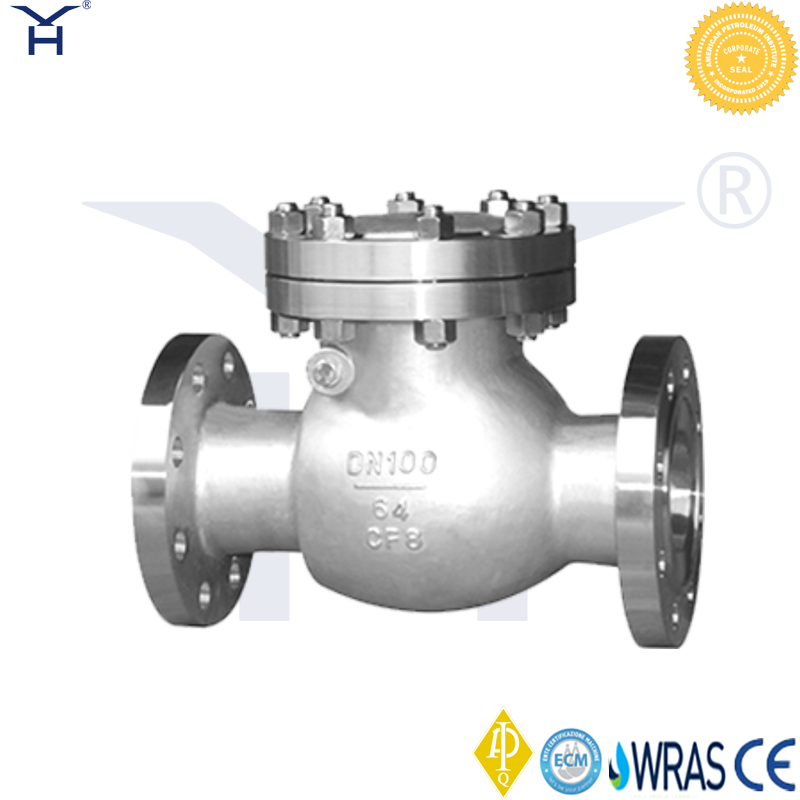

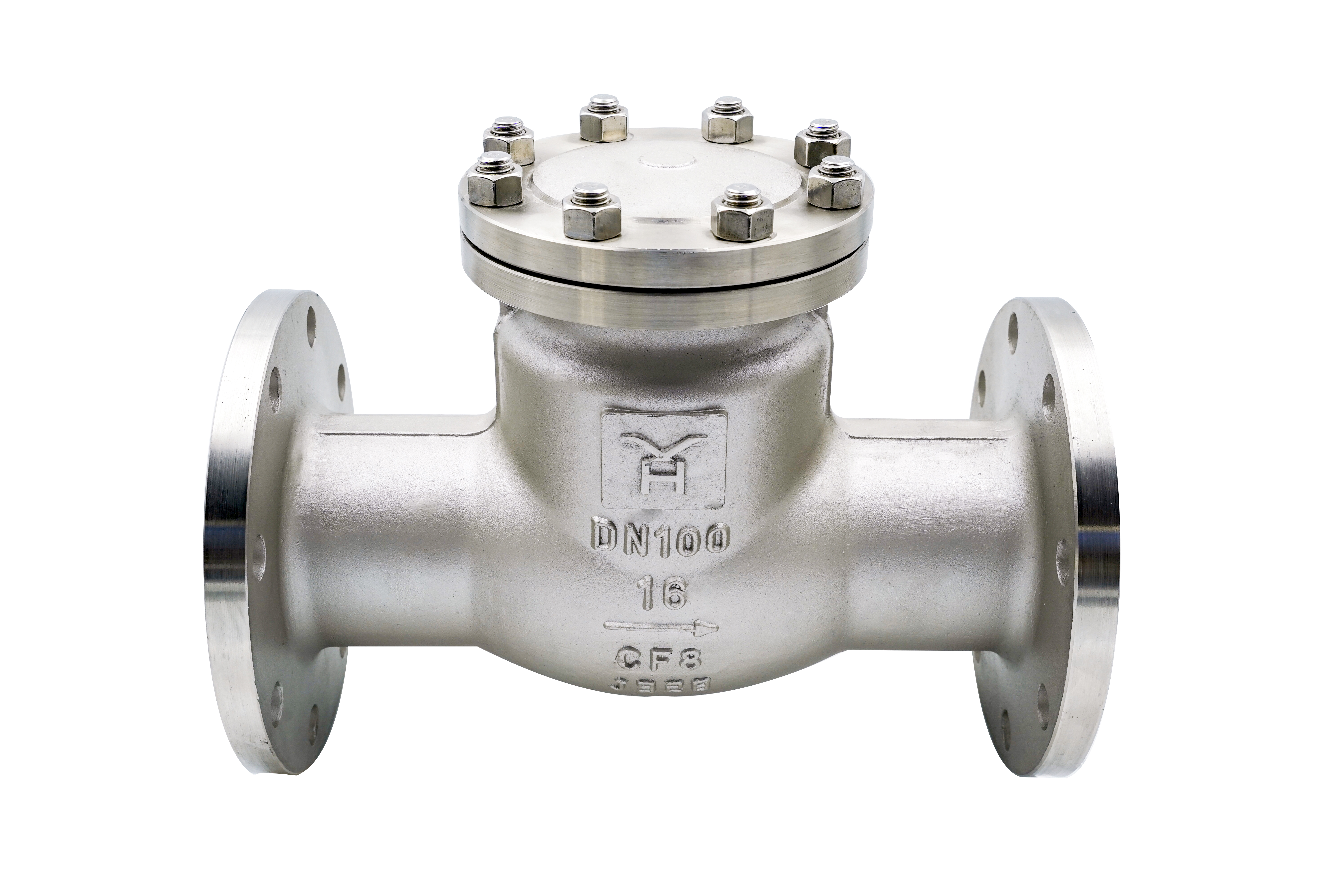

Product Description

Engineered for reliable industrial fluid control, our Cast Steel Swing Check Valve Flange Type is a specialized non-return valve designed specifically for pipeline backflow prevention. This valve operates automatically, utilizing the flow of the medium to open and close the disc, effectively preventing the reverse flow of fluids. By doing so, it protects critical equipment like pumps and drive motors from damage and prevents the unintended discharge of container media. Constructed from durable cast steel, it provides long-lasting structural integrity and pressure resistance, making it an essential component for demanding industrial environments and complex piping networks.

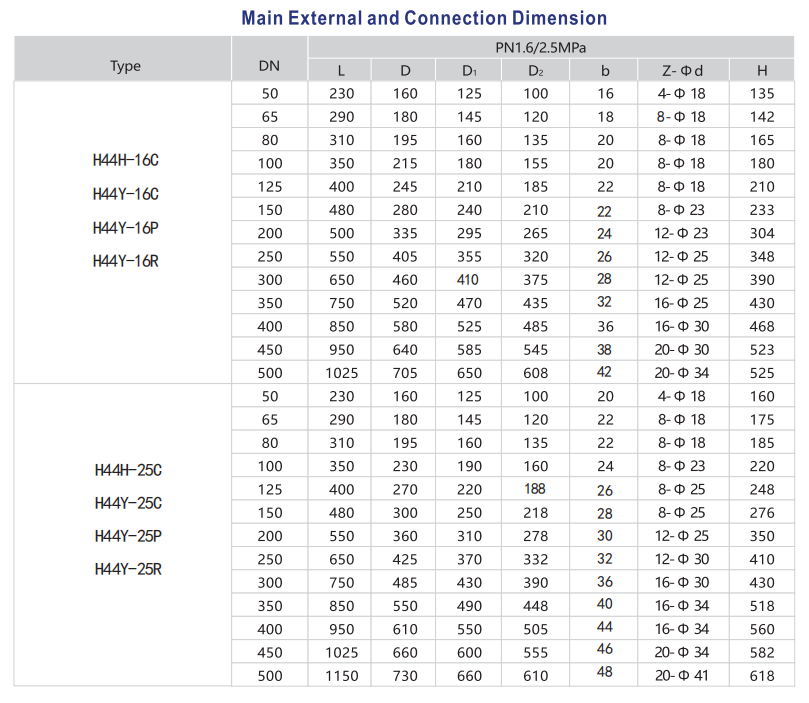

Our flanged non-return check valves are manufactured and tested in strict accordance with national and international standards. The comprehensive specification and material options detailed below ensure reliable integration into your existing piping systems, delivering long-term operational stability under varying temperatures and media conditions.

Main Features & Engineering Advantages

• Low flow resistance with full‑open flow passage: The internal structural design provides an unobstructed, full-bore flow path when fully open. This significantly minimizes pressure drop and reduces energy consumption across the pipeline system, supporting efficient fluid transportation.

• Gentle opening‑closing action, less water hammer: Engineered with a precisely balanced swing arm and disc, the valve responds smoothly to flow changes. This gentle mechanical action effectively mitigates water hammer effects, protecting the pipeline infrastructure and downstream equipment from hydraulic shocks.

• Available for large size pipeline: The durable cast steel construction and standard flanged end connections make this non-return valve highly adaptable for large-diameter pipelines. It provides a secure, leak-proof seal even under high-volume flow conditions.

• Low noise during operation: The streamlined internal contours and stable disc movement prevent excessive turbulence and vibration, resulting in quiet operation. This is particularly beneficial for facilities with strict occupational noise regulations.

Typical Applications & Use Cases

This cast steel swing check valve is highly versatile and designed to meet the rigorous demands of various industrial sectors. By preventing media backflow, it secures system integrity and reduces maintenance downtime across multiple fluid control applications.

• Horizontal piping system: Designed for standard horizontal pipeline installations where fluid dynamics require a dependable, automatic shut-off mechanism against reverse flow.

• Pump outlet main lines: Crucial for installation at the discharge side of industrial pumps. It prevents the reverse rotation of the pump impeller and motor when the system is powered down, extending the lifespan of critical pumping equipment.

• Heating, water supply and petrochemical pipelines: Thanks to the wide selection of body materials (WCB, WC6, LCB, CF8) and temperature adaptability (-46℃ to 550℃), this valve is highly suitable for handling water, steam, oil, nitric acid, propane, and ethene in municipal water plants, district heating networks, and heavy petrochemical processing facilities.

For more products, please contact us

As a dedicated provider of industrial fluid control solutions, we offer a comprehensive range of valves beyond the cast steel swing check valve. Our extensive product line is designed to meet diverse pipeline requirements, ensuring reliable performance across various demanding industrial applications and helping you consolidate your procurement process.

Explore Our Comprehensive Valve Solutions

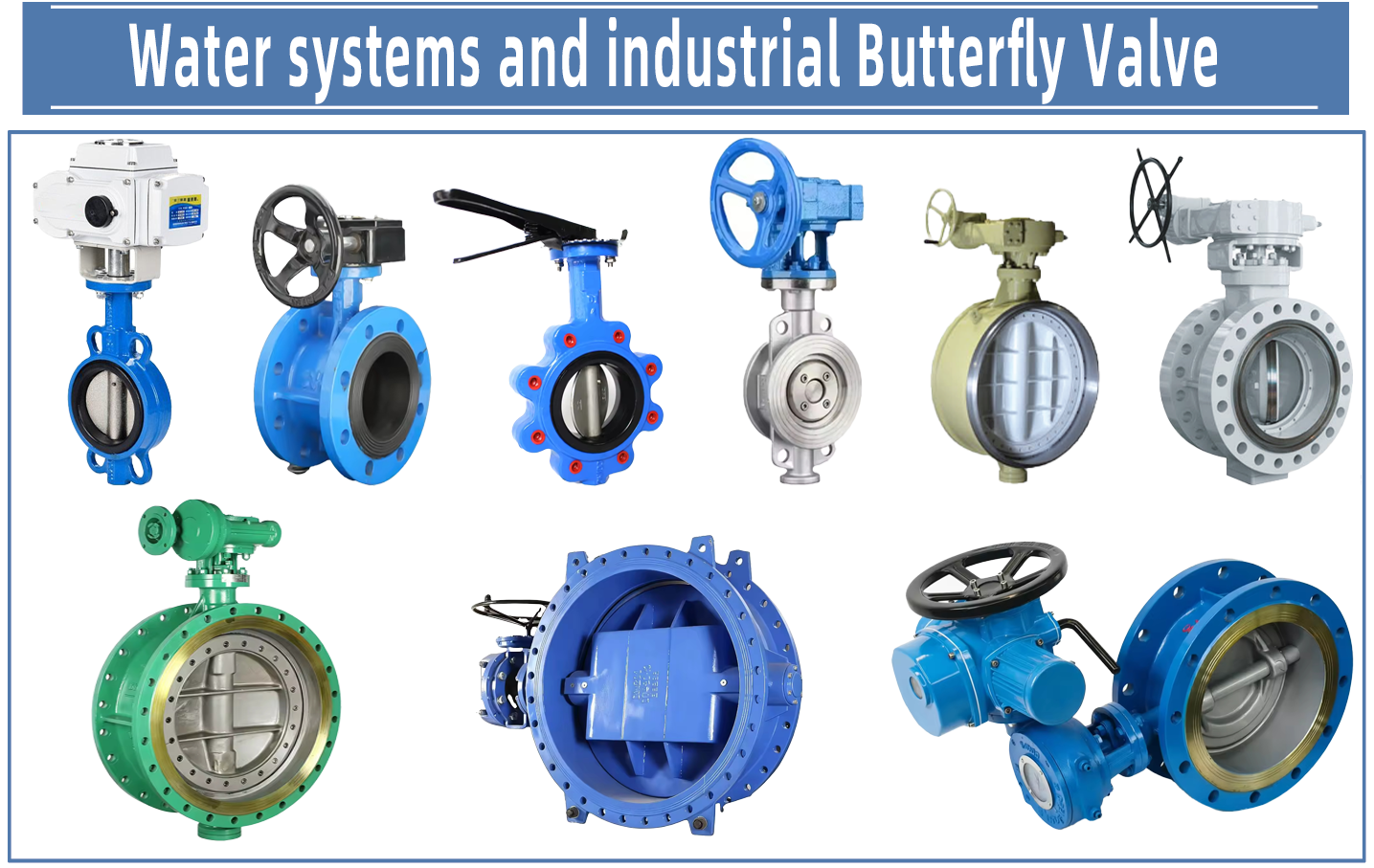

In addition to pipeline backflow prevention valves, our supply capabilities cover a wide spectrum of industrial valves, including industrial butterfly valves and other essential flow control equipment. We are committed to delivering tailored solutions that support stable pipeline operations, enhance system efficiency, and accommodate specific project demands across different sectors.

Get in Touch for Professional Support

Whether you require detailed specifications for our cast steel valves, custom configurations for special pipeline environments, or bulk procurement assistance, our experienced team is ready to help. We prioritize efficient communication and reliable supply capabilities to ensure your purchasing process is smooth and your project stays on track. Reach out to us through our contact channels below to discuss your specific requirements and receive a prompt, customized quotation.
