Stainless Steel LH45X Pilot Operated Flow‑Limiting Check Valve Hydraulic Control Valve Slow Close Anti‑Water‑Hammer Valve For Water Pump Outlet

Stainless Steel LH45X Pilot Operated Flow‑Limiting Check Valve Hydraulic Control Valve Slow Close Anti‑Water‑Hammer Valve For Water Pump Outlet

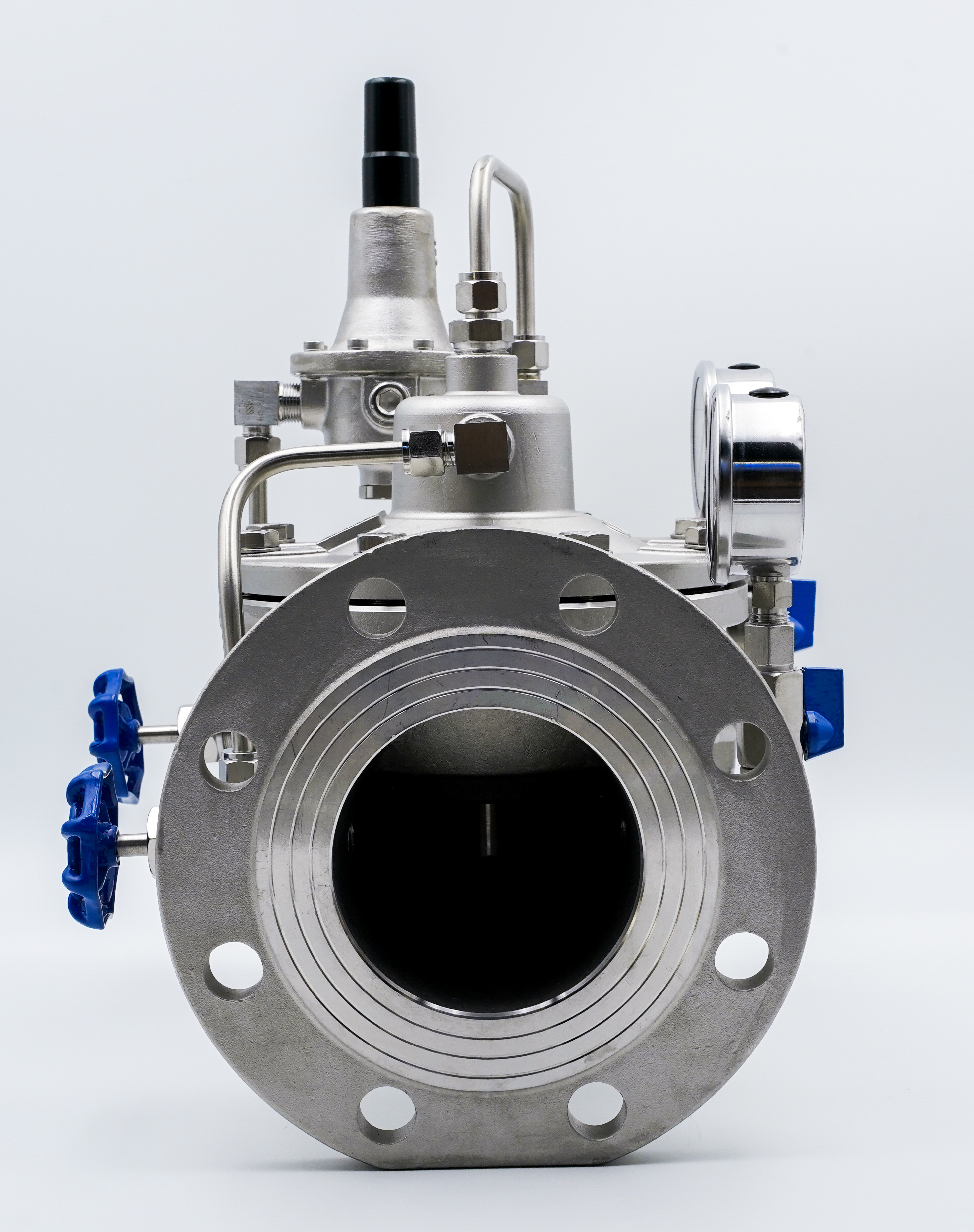

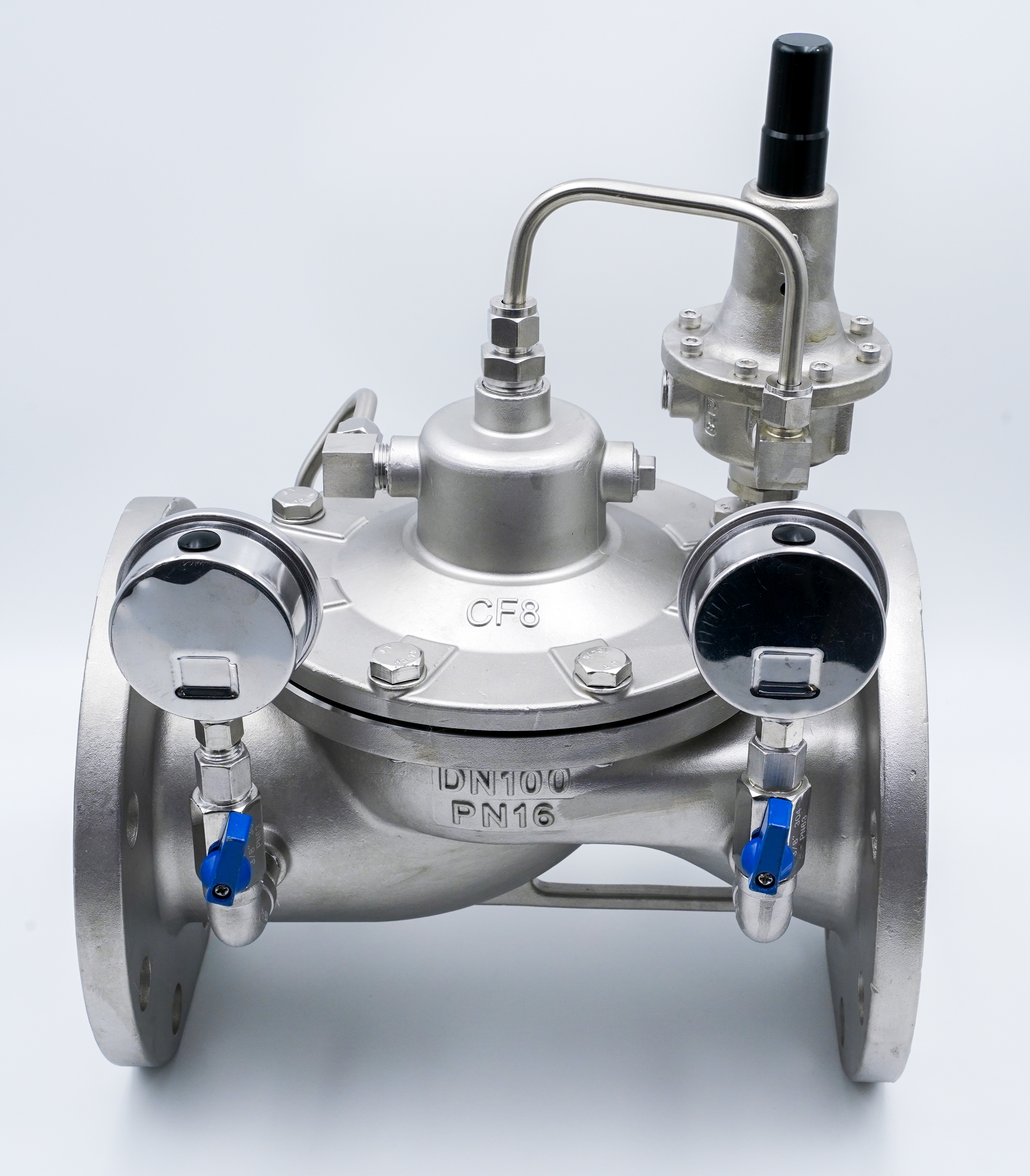

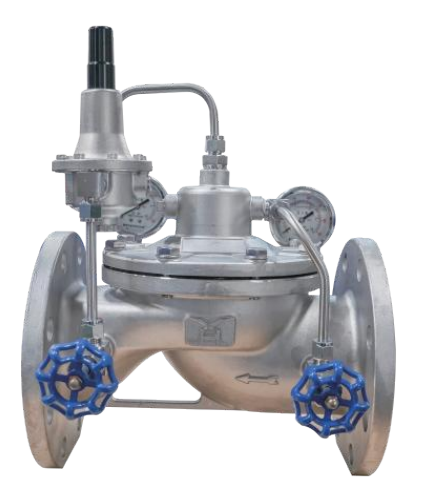

The SK200X Adjustable Pressure Reducing Valve consists of a main valve, pilot
valve, needle valve, micro-filter, ball valve, pressure gauge and other components. During operation, once the outlet pressure is set, the valve can automatically maintain a constant outlet pressure.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Technical Parameters

1.Flanged connection shall comply with the standards GB/T 17241.1-2024 and GB/T 9124.1-2019.

2.Strength and sealing tests shall comply with the standard GB/T 13927-2022.

3.Relevant technical parameters are listed in Table 1, materials of main components in Table 2, overall dimensions in Table 3.

Table 1:Technical Parameters Table

PN

1.0MPa

1.6MPa

2.5MPa

Body Test

1.5MPa

2.4MPa

3.75MPa

Seal Test

1.1MPa

1.76MPa

2.75MPa

Temperature

0℃~80℃

Multiple Models Available

Self-actuated

Table 2:Main Component Materials

Part Name

Materials

Body,Bonnet,Disk

Stainless Steel

Spring

Stainless Steel

Stem,Fasteners

Stainless Steel

Sealing Ring

NBR/EPDM

ExternalConnecting Pipe

Stainless Steel/Copper Alloy

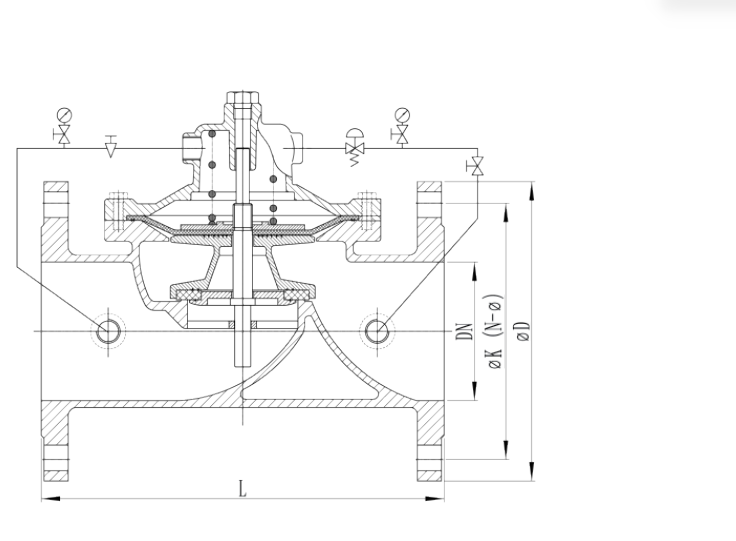

Table 3:Overall Dimensions mm								External Connecting Pipe StainlessSteel/CopperAlloy
DN	φD			φK			N-				L
	PN10	PN16	PN25	PN10	PN16	PN25	PN10		PN16	PN25
40	150			110			4-φ18				205±2
50	165			125			4-φ18				205±2
65	185			145			4-φ18			8-φ18	219±2
80	200			160			8-φ18				241±2
100	220		235	180		190	8-φ18			8-φ22	292±2
125	250		270	210		220	8-φ18			8-φ26	325±2
150	285		300	240		250	8-φ22			8-φ26	355±2
200	340		360	295		310	8-Φ22		12-Φ22	12-φ26	458±2
250	395	405	425	350	355	370	12-φ22		12-Φ26	12-φ30	530±2
300	445	460	485	400	410	430	12-φ22		12-Φ26	16-30	615±3
