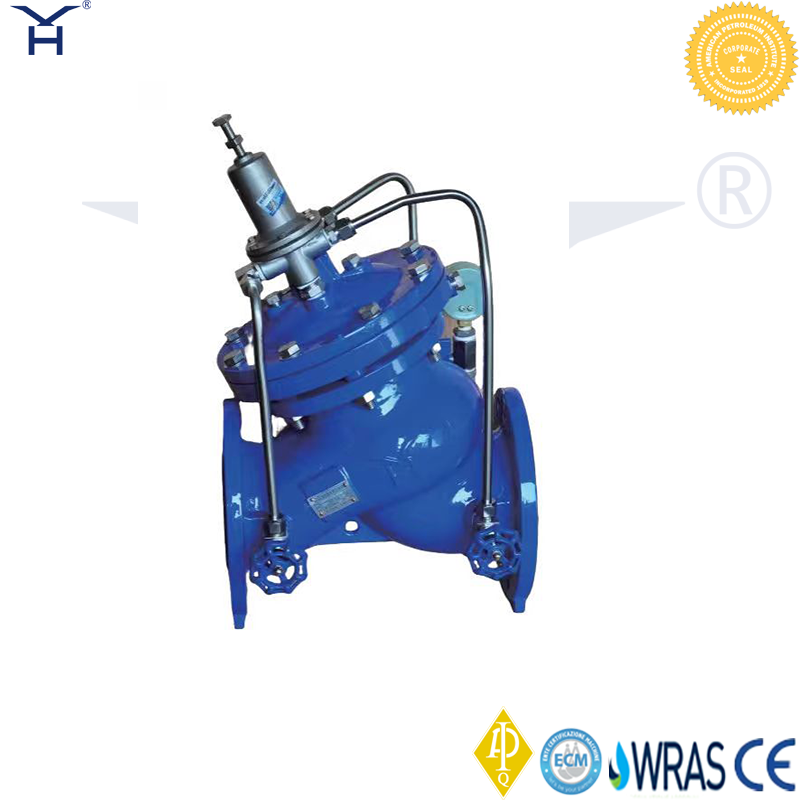

The SK741X flanged pressure control valve automatically maintains consistent downstream pressure in water supply systems. Its reliable pilot-operated design minimizes water hammer, prevents pipe damage, and ensures long-term continuous operation for municipal and infrastructure applications.

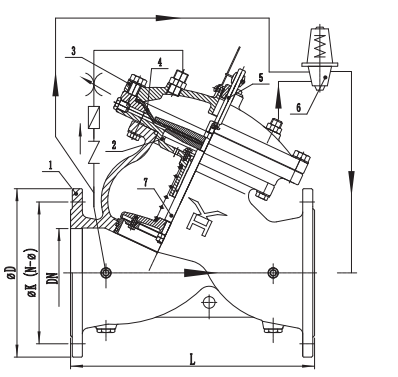

Figure 1 Structure Diagram

1-Valve Body                                               2-Lower Control Chamber

3-Upper Control Chamber                         4-Diaphragm

5- Opening Indicator                                  6-Pilot Valve Assembly

7-Closure Member

Engineering Standards & Compliance

• Flange Dimensions: Engineered to align with GB/T 17241.1-2024 connection guidelines.

• Pressure & Leakage Verification: Undergoes rigorous structural integrity and seat tightness testing according to GB/T 13927-2022 specifications.

• Data Reference: Comprehensive performance ratings are detailed in Table 1, core material selections in Table 2, and physical outer dimensions in Table 3.

Core Highlights

• Corrosion-Resistant Ductile Body: Cast from high-grade ductile iron with a protective epoxy finish, ensuring long-term durability in liquid distribution lines.

• Self-Powered Hydraulic Control: Driven by internal system pressure through a pilot-diaphragm setup—eliminates the need for outside electrical or pneumatic power sources.

• Dual Protection Capability: Performs both pressure relief and back-pressure maintenance tasks within a single safety unit.

• Fast Surge Mitigation: Instantly actuates when line pressure surpasses designated safety limits to shed transient peak surges.

• Field-Adjustable Interface: Outfitted with fine-tuning needle controls and integrated pressure gauges for straightforward on-site calibration.

• Low-Friction Flow Path: Streamlined internal passage lowers head loss while ensuring quiet, cushioned shut-off to dampen shock waves.

• Integrated Line Strainer: Includes an inline filter in the pilot circuit to stop debris from fouling control orifices.

• In-Line Serviceability: Standard flanged connections allow internal maintenance and component inspection without pulling the housing off the main line.

Ideal Applications

• Municipal pump stations and booster facilities

• High-rise residential headers and fire-protection supply loops

• Water treatment plants and industrial process networks

• Closed-loop cooling and utility distribution piping

• Pressure surge relief for high-volume pumping equipment

• Hydraulic shock mitigation during pump startup, shutdown, or power loss events
