Technical Parameters

All flanged connection dimensions strictly follow GB/T 17241.1‑2024 specification, ensuring perfect matching with mainstream pipeline flanges for smooth on‑site installation and stable connection performance. Product strength inspection and sealing performance testing are fully implemented in accordance with GB/T 13927‑2022. Every unit undergoes rigorous pressure‑resistance and leak‑proof tests before delivery to guarantee reliable operation under rated working conditions.

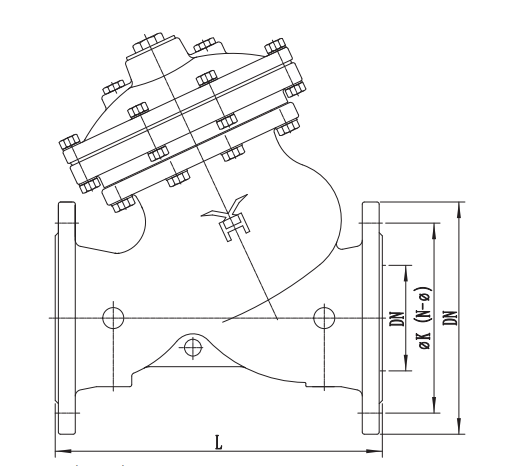

Full sets of technical reference data are sorted in dedicated tables for your quick check: Table 1 covers core technical specifications, Table 2 displays material configuration of each key component, and Table 3 presents detailed overall installation dimensions for pipeline design and layout reference.

Main Features

• Ductile iron body with epoxy coating, excellent anti‑corrosion for water medium

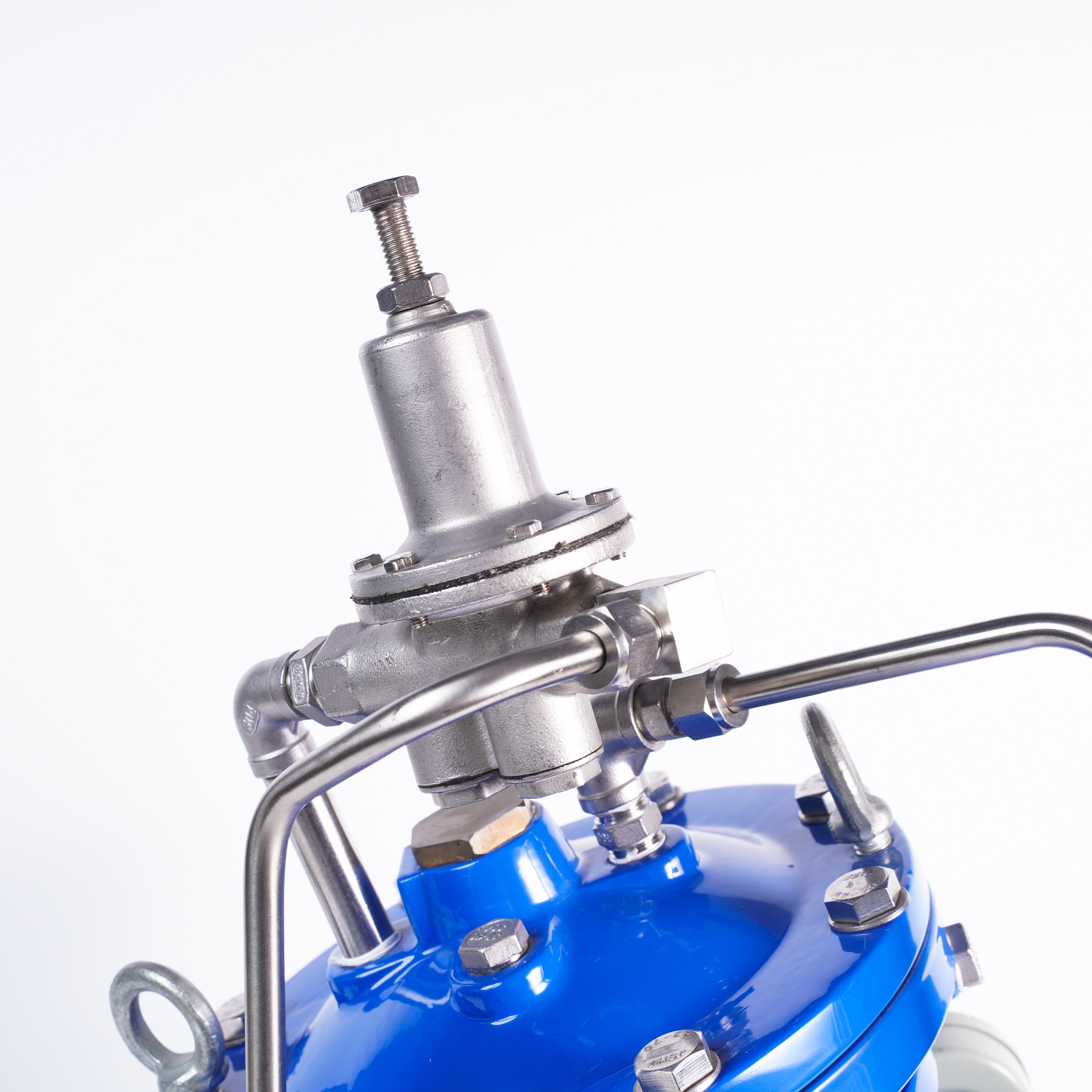

• Pilot‑operated hydraulic diaphragm structure, no external power supply required

• Continuously adjustable downstream outlet pressure on site

• Stable pressure output even with fluctuating upstream inlet pressure

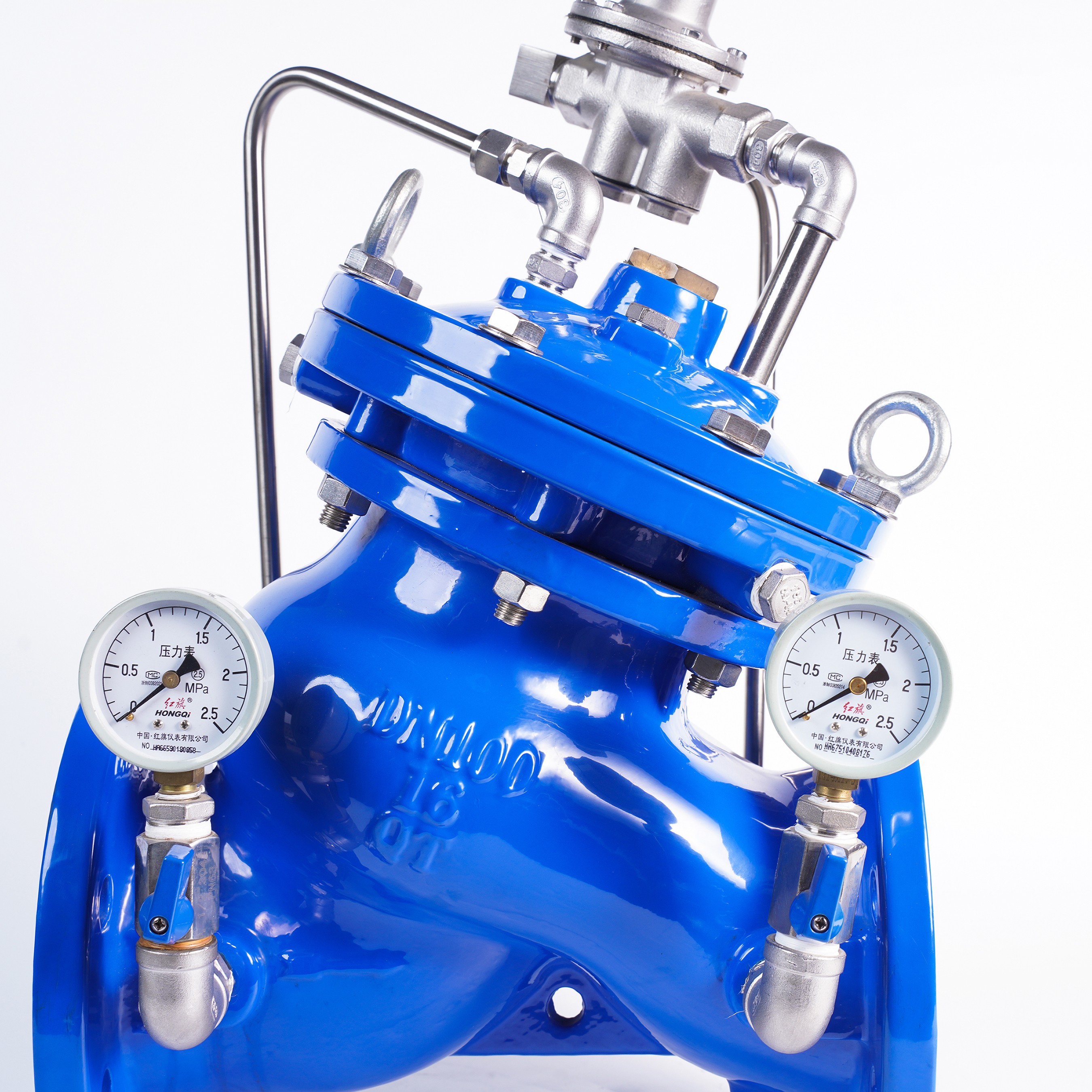

• Equipped with pressure gauge and needle valves for convenient commissioning

• Flange connection, simple structure, easy installation and maintenance

• Wide pressure adjustment range for different water supply requirements

Application

• Municipal water‑supply pipeline networks：City‑wide municipal water distribution pipe networks for public urban water supply infrastructure

• Building water‑pressure stabilization projects：Hydraulic pressure stabilization projects for multi‑story and high‑rise building water supply

• Water plant and pumping station pipelines：Pipeline systems for water treatment plants and pump stations, covering water transmission of pumping equipment

• Industrial circulating water systems：Factory process circulating water systems, adapt to closed‑loop circulating water working conditions of industrial sites

• Residential district water supply pipelines：Water supply piping for residential communities, meet daily domestic water transport demands of residential areas

• Fire‑fighting water supply pipelines：Complete fire‑service water supply pipeline systems for fire safety engineering projects
