How Does a Butterfly Valve Enable Quick Shutoff and Flow Regulation?

In industrial applications where precise flow control and rapid shutoff capabilities are essential, the butterfly valve stands as one of the most versatile and efficient solutions available. This quarter-turn valve design has revolutionized fluid handling systems across numerous industries, from water treatment facilities to petrochemical plants. The butterfly valve operates through a simple yet effective mechanism that positions a rotating disc perpendicular to the flow path, enabling operators to achieve complete shutoff or variable flow regulation with minimal effort. Understanding how this valve technology works and its practical applications can help engineers and facility managers make informed decisions about their flow control systems.

Fundamental Design and Operating Principles

Core Components and Construction

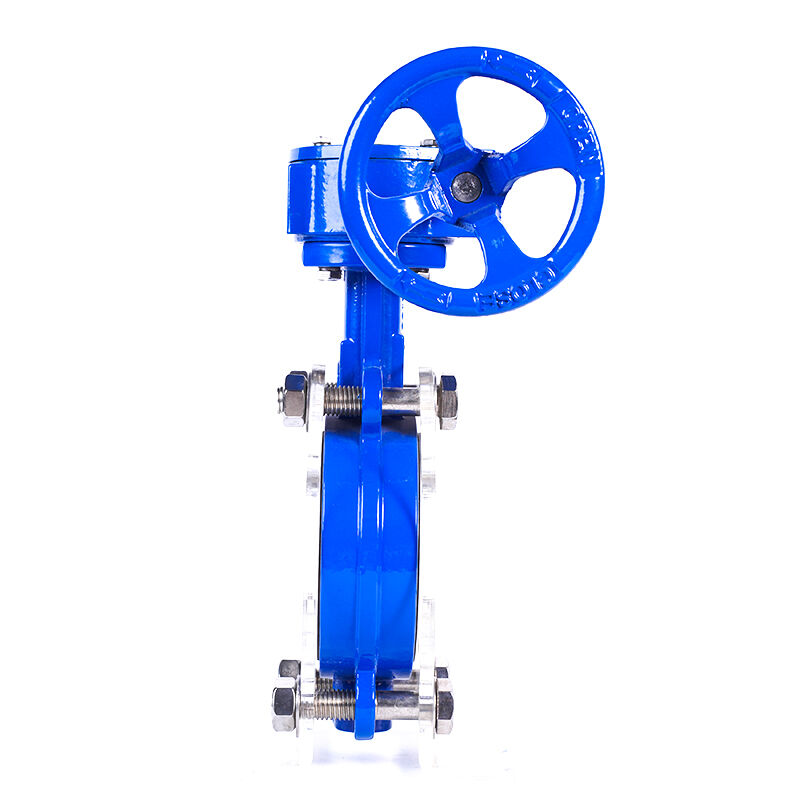

The butterfly valve consists of several key components that work together to provide reliable flow control functionality. At its heart lies the disc, a circular plate that rotates on a central shaft to regulate fluid passage. This disc is typically manufactured from materials such as stainless steel, cast iron, or specialized alloys depending on the application requirements. The valve body houses the disc and provides the connection points for pipeline integration, while the stem transmits rotational force from the actuator to the disc assembly.

The seat arrangement in a butterfly valve creates the sealing interface when the valve reaches the closed position. Modern designs often incorporate resilient seats made from elastomeric materials like EPDM, NBR, or PTFE, which compress against the disc edge to prevent leakage. The stem seal system ensures that no fluid escapes around the rotating shaft, typically employing O-rings or packing arrangements depending on pressure and temperature requirements. This construction allows the butterfly valve to maintain excellent sealing performance while enabling smooth operation across thousands of cycles.

Quarter-Turn Operation Mechanics

The distinctive quarter-turn operation of a butterfly valve provides its primary advantage in rapid response applications. When the actuator rotates the stem through 90 degrees, the disc moves from fully open to completely closed position, or vice versa. This quick-acting characteristic makes the butterfly valve ideal for emergency shutoff scenarios where immediate flow isolation is critical. The rotational movement requires significantly less torque compared to linear motion valves, enabling the use of smaller actuators and reducing overall system costs.

During intermediate positions, the butterfly valve disc creates a variable orifice that controls flow rate proportionally to the opening angle. The flow characteristics follow a specific curve that depends on the disc design, with some configurations optimized for linear flow response while others provide equal percentage characteristics. This versatility allows operators to fine-tune system performance by selecting the appropriate disc profile for their specific application requirements.

Flow Control Mechanisms and Performance

Variable Flow Regulation Capabilities

The butterfly valve excels in applications requiring variable flow regulation due to its inherent throttling capabilities. As the disc rotates from the closed position, it gradually opens the flow passage, creating increasingly larger flow areas. The relationship between disc position and flow rate can be engineered to match specific control requirements, whether linear, equal percentage, or quick-opening characteristics are desired. This flexibility makes the butterfly valve suitable for both on-off service and precise flow modulation applications.

Advanced butterfly valve designs incorporate features that enhance flow control precision, such as characterized discs or offset configurations. These modifications help minimize turbulence and pressure drop while maintaining stable flow control across the operating range. The relatively low pressure drop characteristics of a butterfly valve compared to globe or gate valves make it particularly attractive for applications where energy efficiency is paramount. When properly sized and configured, a butterfly valve can provide years of reliable flow control service with minimal maintenance requirements.

Shutoff Performance and Sealing Technology

When rapid and complete flow isolation is required, the butterfly valve delivers exceptional shutoff performance through its advanced sealing technologies. The combination of disc design, seat materials, and closing mechanisms ensures reliable shutoff even in challenging service conditions. Modern butterfly valve designs achieve leakage rates that meet or exceed industry standards such as API 598 or ISO 5208, providing confidence in critical isolation applications.

The sealing mechanism in a butterfly valve relies on the compression of the resilient seat material against the disc perimeter. This metal-to-elastomer interface creates an effective barrier against fluid passage while accommodating minor surface irregularities and thermal expansion. Fire-safe designs incorporate secondary metal sealing surfaces that engage when the primary elastomeric seal is compromised, ensuring continued isolation capability even under extreme conditions. These safety features make the butterfly valve suitable for hazardous service applications where leak-tight shutoff is non-negotiable.

Industrial Applications and Advantages

Water Treatment and Distribution Systems

Water treatment facilities rely heavily on butterfly valve technology for efficient system operation and maintenance. These valves provide excellent service in applications ranging from raw water intake systems to treated water distribution networks. The corrosion-resistant materials and coatings available for butterfly valve construction ensure long-term reliability in water service environments. The quick-acting nature of butterfly valve operation proves invaluable during emergency situations or routine maintenance procedures where rapid isolation is essential.

Large diameter butterfly valve installations in water systems benefit from the reduced weight and compact design compared to traditional gate or ball valve alternatives. This weight advantage simplifies installation procedures and reduces structural support requirements, particularly in elevated installations or tight spaces. The bi-directional sealing capability of most butterfly valve designs provides operational flexibility in water distribution systems where flow direction may vary based on demand patterns or system configuration changes.

Chemical and Process Industry Applications

The chemical processing industry demands valve solutions that can handle corrosive media while maintaining reliable operation and safety standards. Butterfly valve technology meets these requirements through specialized material selections and coating systems designed for aggressive chemical environments. The smooth flow path through an open butterfly valve minimizes turbulence and reduces the risk of erosion or cavitation damage in high-velocity applications.

Process control applications benefit from the predictable flow characteristics and rapid response times achievable with butterfly valve installations. The ability to integrate with automated control systems enables precise flow regulation that maintains optimal process conditions while minimizing energy consumption. Many chemical plants utilize butterfly valve technology in both isolation and control service, taking advantage of the versatility and cost-effectiveness of this valve design across multiple application scenarios.

Selection Criteria and Sizing Considerations

Material Selection and Compatibility

Proper material selection is crucial for butterfly valve performance and longevity in specific service conditions. The valve body, disc, and seat materials must be compatible with the process fluid while withstanding the operating temperature and pressure requirements. Stainless steel grades such as 316 or duplex alloys provide excellent corrosion resistance for many applications, while exotic materials like Hastelloy or Monel may be required for extreme chemical environments.

Seat material selection requires careful consideration of temperature limits, chemical compatibility, and required leakage rates. Elastomeric seats offer superior sealing performance at moderate temperatures, while metal seats may be necessary for high-temperature applications or fire-safe requirements. The butterfly valve manufacturer typically provides detailed compatibility charts and material recommendations to ensure optimal performance in specific service conditions.

Sizing and Performance Optimization

Proper sizing of a butterfly valve installation requires analysis of flow requirements, pressure drop limitations, and control characteristics. The valve coefficient (Cv) must be calculated based on maximum flow rates, allowable pressure drop, and fluid properties to ensure adequate capacity while maintaining controllability. Oversized butterfly valve installations may exhibit poor control characteristics at low flows, while undersized valves create excessive pressure drop and potential cavitation issues.

Advanced computational fluid dynamics analysis helps optimize butterfly valve selection and installation details for specific applications. Factors such as upstream and downstream piping configuration, flow profile, and turbulence levels all influence valve performance and should be considered during the sizing process. Proper butterfly valve sizing ensures optimal system performance while minimizing energy costs and maintenance requirements over the valve lifecycle.

Maintenance and Operational Benefits

Reduced Maintenance Requirements

The simple design of a butterfly valve translates directly into reduced maintenance requirements compared to more complex valve types. With fewer moving parts and no sliding surfaces under pressure, butterfly valve designs minimize wear points and extend service intervals. The quarter-turn operation creates less mechanical stress on sealing surfaces, contributing to extended seat life and reduced replacement frequency.

Routine maintenance procedures for butterfly valve installations typically involve periodic actuator lubrication, stem packing adjustment, and visual inspection of external components. Many modern butterfly valve designs incorporate maintenance-friendly features such as accessible packing glands, removable actuators, and in-line repairable seats that minimize downtime during service procedures. The ability to perform most maintenance activities without removing the valve from the pipeline provides significant operational advantages in continuous process environments.

Cost-Effectiveness and Energy Efficiency

The economic advantages of butterfly valve technology extend beyond initial purchase price to include installation, operation, and maintenance costs. The lightweight design reduces installation time and eliminates the need for heavy lifting equipment in many applications. Lower operating torque requirements enable the use of smaller actuators, reducing both capital and operating costs while improving system response times.

Energy efficiency benefits result from the low pressure drop characteristics inherent in butterfly valve design. When fully open, a properly designed butterfly valve creates minimal flow restriction, reducing pumping costs and system energy consumption. This efficiency advantage becomes particularly significant in large-scale installations where small pressure drop reductions translate into substantial energy savings over the system lifecycle.

FAQ

What are the main advantages of using a butterfly valve over other valve types

Butterfly valve technology offers several key advantages including quarter-turn operation for rapid shutoff, lightweight construction for easier installation, low pressure drop in the open position for energy efficiency, and cost-effective manufacturing that reduces overall system costs. The simple design also provides excellent reliability with minimal maintenance requirements, making it ideal for applications requiring frequent operation or long service intervals.

Can a butterfly valve provide tight shutoff for critical isolation applications

Modern butterfly valve designs can achieve excellent shutoff performance that meets industry leakage standards such as API 598 Class VI or ISO 5208. The sealing effectiveness depends on proper seat material selection, disc design, and installation quality. For critical applications requiring zero leakage, double-offset or triple-offset butterfly valve configurations provide metal-to-metal sealing that ensures reliable isolation even under challenging service conditions.

How does disc position affect flow control characteristics in a butterfly valve

The butterfly valve disc position directly controls the effective flow area and resulting flow rate through the valve. Different disc designs create varying flow characteristics, with some providing linear relationships between position and flow while others offer equal percentage or quick-opening responses. The flow curve can be customized during design to match specific control requirements, enabling precise flow regulation across the entire operating range.

What factors should be considered when selecting butterfly valve materials

Material selection for butterfly valve applications must consider process fluid compatibility, operating temperature and pressure limits, environmental conditions, and required service life. The body, disc, seat, and stem materials should all be evaluated for corrosion resistance, mechanical properties, and thermal stability. Industry standards and manufacturer recommendations provide guidance for material selection based on specific service conditions and performance requirements.
