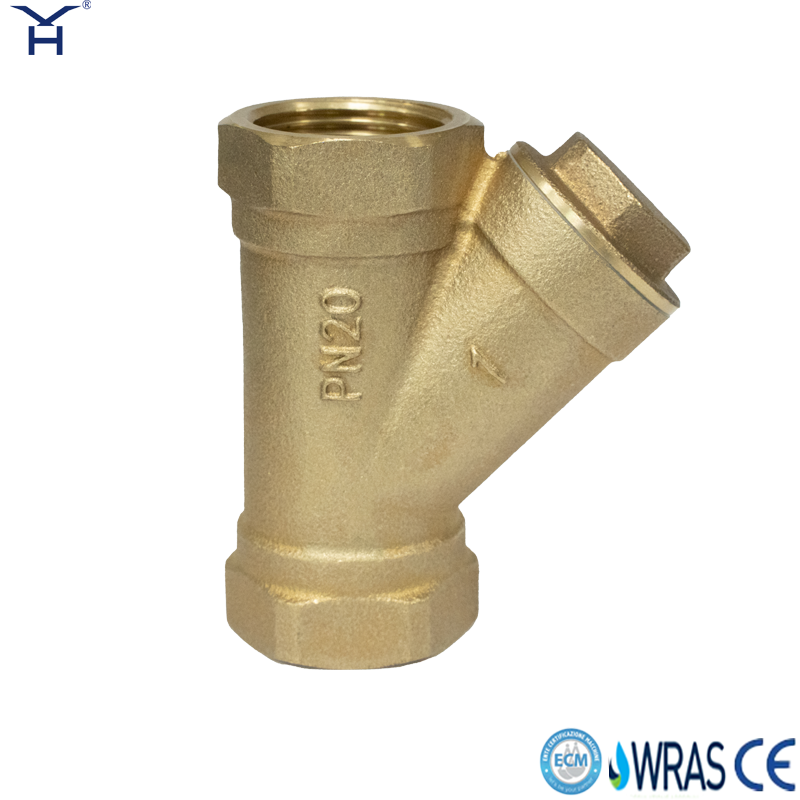

DN15‑DN50 Brass Y‑Strainer WRAS CE Certified Threaded Y‑Filter For Plumbing & Fire‑Fighting System

Technical Specifications:

1、Nominal Pressure:1.6MPa;

2、Working Medium:Water,non-corrosive liquids;

3 、Working Temperature:0℃~100℃;

4、Thread Standard:Complies with GB/T7307 and ISO228 standards;

Main features

• Heavy-Duty Forged Brass: Pressure-molded brass construction ensures exceptional tensile integrity and long-term resistance against fluid corrosion.

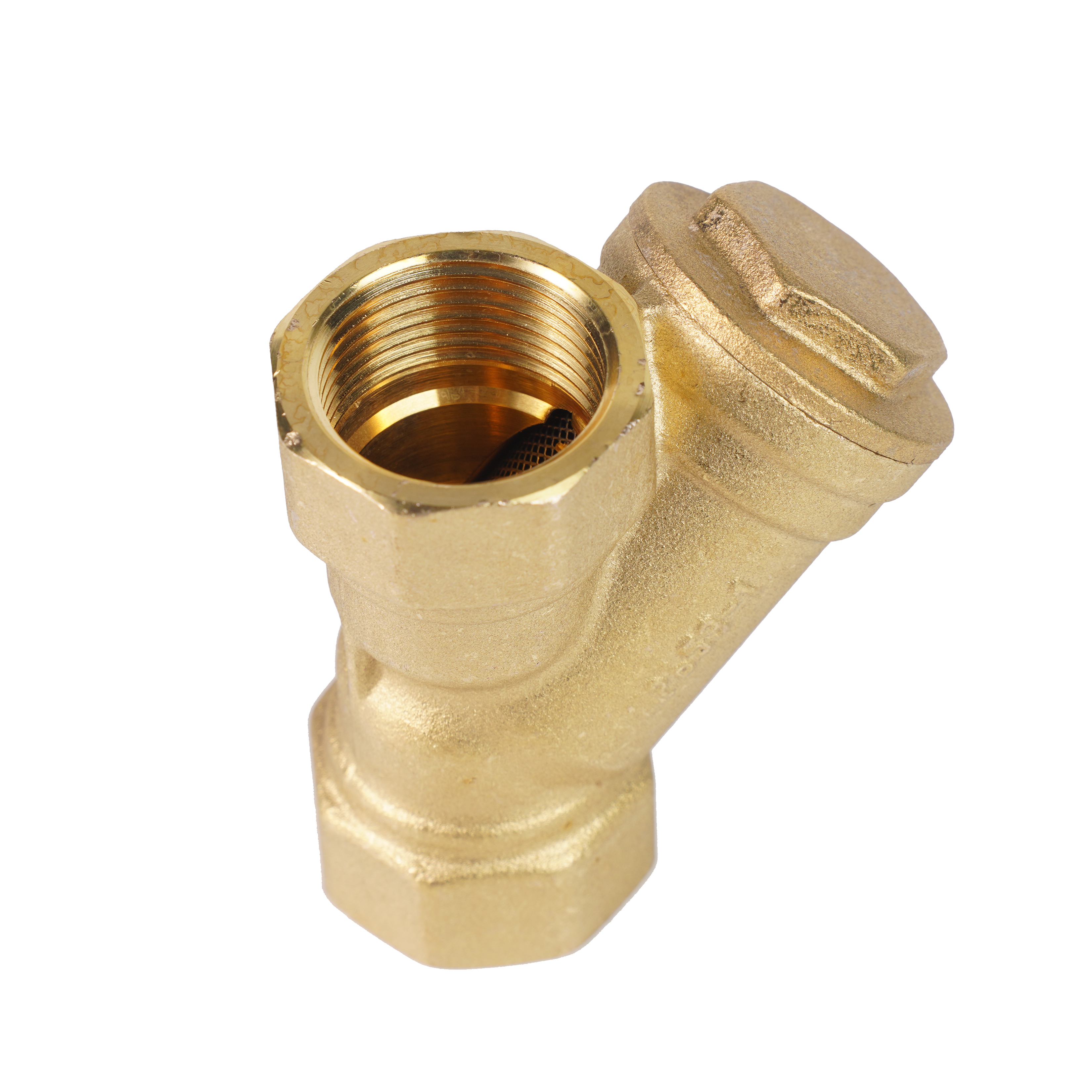

• Dual Internal Threading: Precision female NPT/BSP end connections enable fast, reliable coupling onto standard small-diameter piping headers.

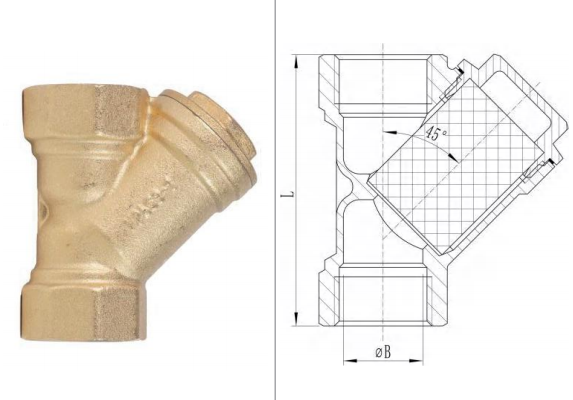

• Y-Pattern Flow Geometry: Angled internal chamber layout captures suspended solids and scale with minimal pressure drop across the screen.

• Accessible Strainer Element: Features a removable filter mesh cap to streamline quick, hassle-free debris flushing during routine servicing.

• 16-Bar Rating (PN16): Engineered for continuous operational stability under high static line pressures in domestic and commercial circuits.

• Compact Footprint & Wide Size Range: Space-saving profile offered from DN15 to DN50 to fit tight utility chases and varied system scales.

Application

Mainly used in civil residential water supply, hotel plumbing, heating pipeline,
fire‑fighting auxiliary pipeline and general industrial water pipeline. It filters sediment,
rust particles and other debris in water, to protect valves, pumps and other follow‑up pipeline equipment.

Precision Valve Manufacturing

Professional Valve Manufacturer | Integrated Manufacturing

Raw Material

Qualified brass are selected. Alloy composition is checked by spectrometer to guarantee pressure‑resistance and dezincification‑resistance performance.

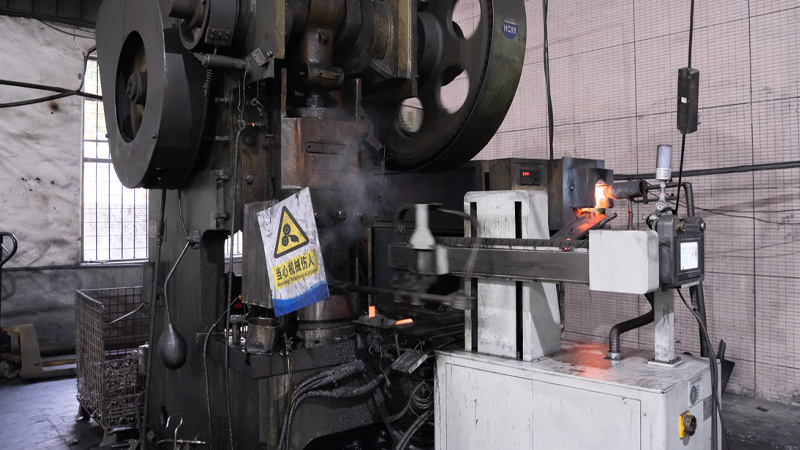

Hot Forging Die‑Casting for Blanks

Heated brass material is formed into valve body blanks by hot forging or die‑casting. Remove flash and burrs to obtain dense valve blanks.

CNC Machining

Our CNC machining equipment provides precise and consistent processing of valve components. Critical dimensions, threads and sealing surfaces are strictly controlled to ensure accurate assembly and reliable sealing performance.

Surface Treatment

Brass Valve will Deburring and polishing. Passivation or nickel/chrome plating is applied to improve anti‑corrosion property and avoid copper oxidation.

Assembly &Pressure Testing

Every valve undergoes strict pressure testing before shipment. Body and seat tests are performed according to applicable standards and customer specifications to verify pressure resistance and sealing reliability.

Quality Inspection

Our quality control team conducts comprehensive inspections throughout the production process. Finished valves are checked for dimensions, appearance, materials, pressure performance and overall quality before final approval and shipment.
