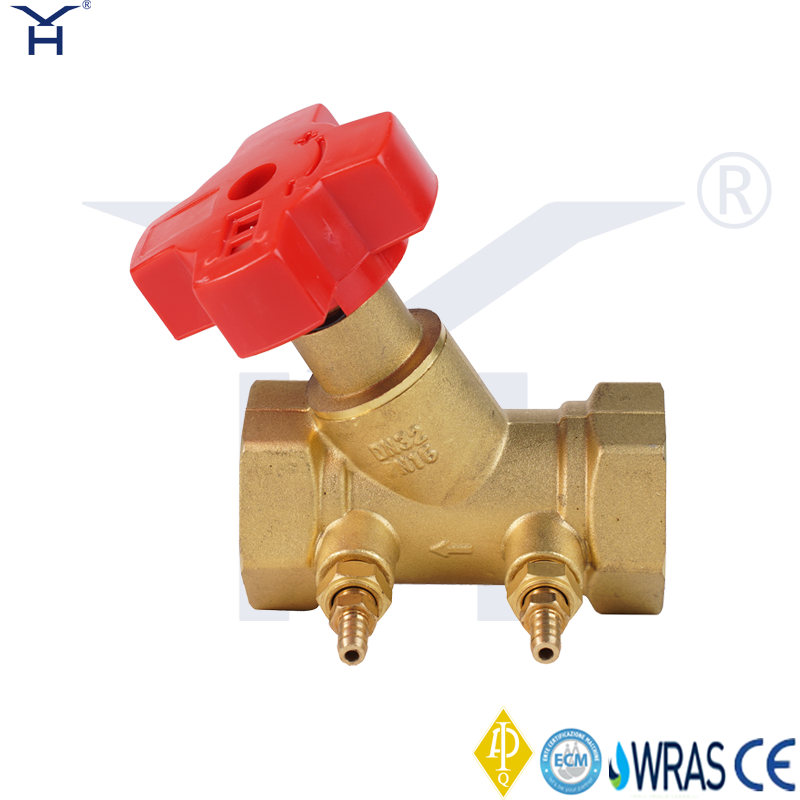

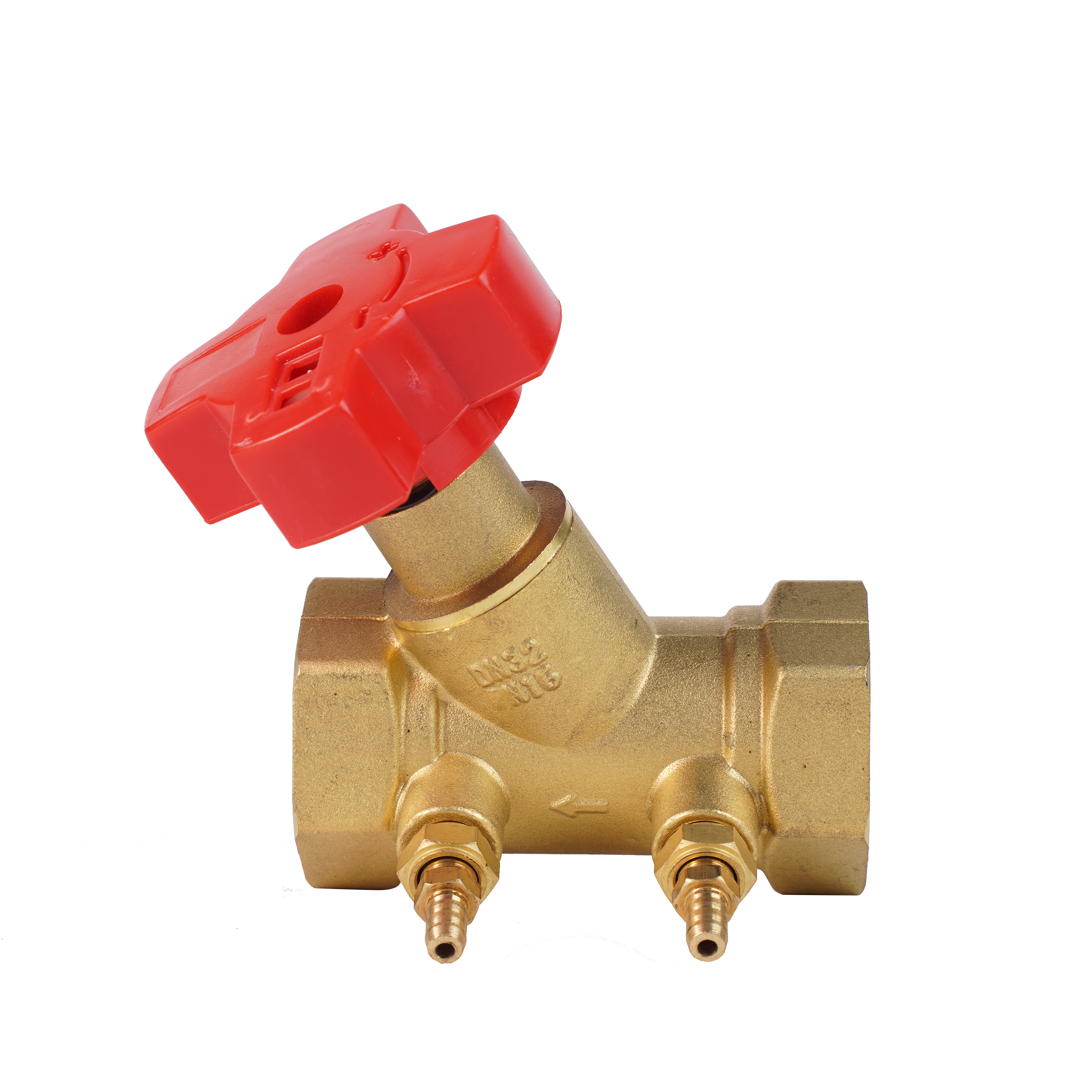

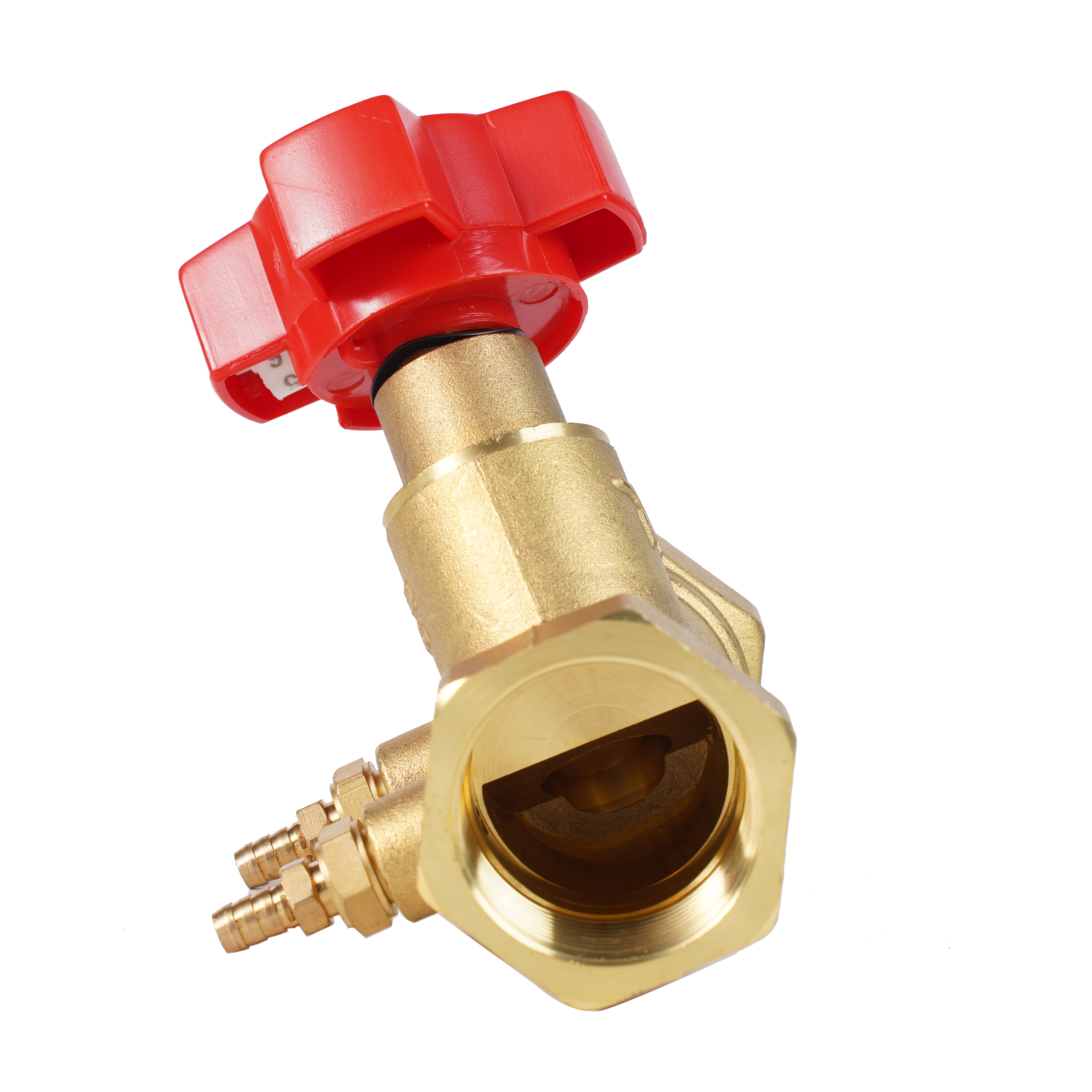

Brass Static Balancing Valve, Female Thread Manual Flow Balancing Valve for HVAC Heating Water System

Product Description

Product Overview

The Brass Static Balancing Valve is a highly reliable control component explicitly designed for HVAC, heating, and cooling water systems. As a manual flow balancing valve, it plays a critical role in maintaining hydraulic equilibrium across complex piping networks. By ensuring the correct flow rate in each system loop, this valve helps prevent uneven temperature distribution, reduces energy consumption, and enhances the overall operational stability of residential and commercial plumbing systems. Engineered with precision, it provides project contractors and system integrators with a dependable solution for accurate flow regulation and pipeline debugging.

Technical Specifications

The SPF-16 series is manufactured to meet rigorous industry standards, ensuring safe and efficient operation under PN16 nominal pressure. The table below details the core technical parameters to assist in precise product selection for your engineering projects.

Main Features & Engineering Advantages

Designed with practical application in mind, this manual flow balancing valve incorporates several structural and material advantages to facilitate easier installation, precise control, and long-term durability.

• Forged Brass Valve Body: Constructed from high-strength forged brass, the valve offers excellent corrosion resistance and structural integrity. This ensures stable performance and a prolonged service life even during long-time running in demanding hot and cold water systems.

• Red Plastic Handwheel with Scale: The ergonomically designed handwheel features a clear, easy-to-read numeric scale. This allows operators to realize accurate flow adjustment and secure position locking, significantly reducing commissioning time during system setup.

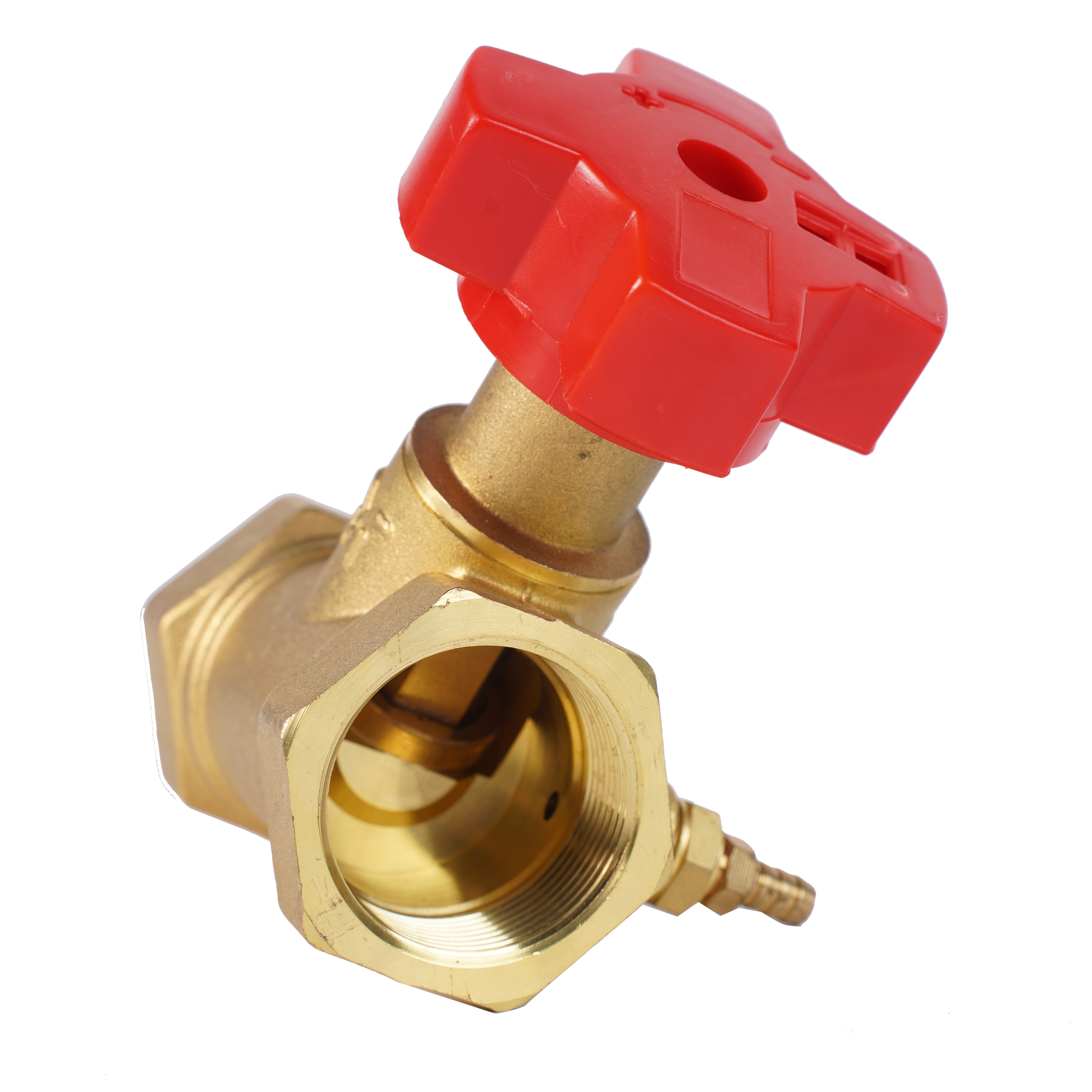

• Y‑Type Internal Structure: The optimized Y-pattern design provides a streamlined flow path that results in small flow resistance and minimal pressure drop. This structure is highly convenient for pipeline flow debugging and ensures efficient fluid dynamics.

• Female Thread Connection: Standardized female threading ensures a secure, leak-proof fit. It allows for easy installation, maintenance, and replacement, particularly suitable for small‑caliber pipelines ranging from DN15 to DN50.

• Hydraulic Balance Optimization: The valve is engineered to realize the hydraulic balance of branch pipelines. By effectively balancing the flow of each loop in a heating or cooling system, it prevents energy waste and ensures consistent thermal comfort throughout the building.

• Compact Appearance: Its space-saving design makes it highly suitable for the narrow installation spaces often found in modern plumbing systems, manifolds, and HVAC equipment rooms.

Application Scenarios

This brass static balancing valve is a versatile component suitable for a wide array of fluid control projects. It is designed to meet the rigorous demands of modern building infrastructure, ensuring optimal fluid distribution in the following typical scenarios:

• Central heating & cooling water circulation pipelines: Maintaining consistent flow rates to maximize chiller and boiler efficiency.

• Residential and commercial building HVAC pipe networks: Ensuring balanced water delivery across multiple floors and zones.

• Floor heating branch water distribution systems: Regulating precise water volume to manifolds for uniform radiant heating.

• Air‑conditioning water system hydraulic balance adjustment: Preventing over-pressurization and optimizing the performance of fan coil units (FCUs) and air handling units (AHUs).

• Building plumbing and heating engineering projects: Serving as a dependable flow control solution for new constructions and retrofitting upgrades.

Manufactured under strict quality control processes, this product complies with CE and ISO9001 certification standards, providing procurement professionals and project managers with confidence in its safety, reliability, and long-term operational value.

Precision Valve Manufacturing

Professional Valve Manufacturer | Integrated Manufacturing

Raw Material Inspection

Qualified brass are selected. Alloy composition is checked by spectrometer to guarantee pressure‑resistance and dezincification‑resistance performance.

Hot Forging Die‑Casting for Blanks

Heated brass material is formed into valve body blanks by hot forging or die‑casting. Remove flash and burrs to obtain dense valve blanks.

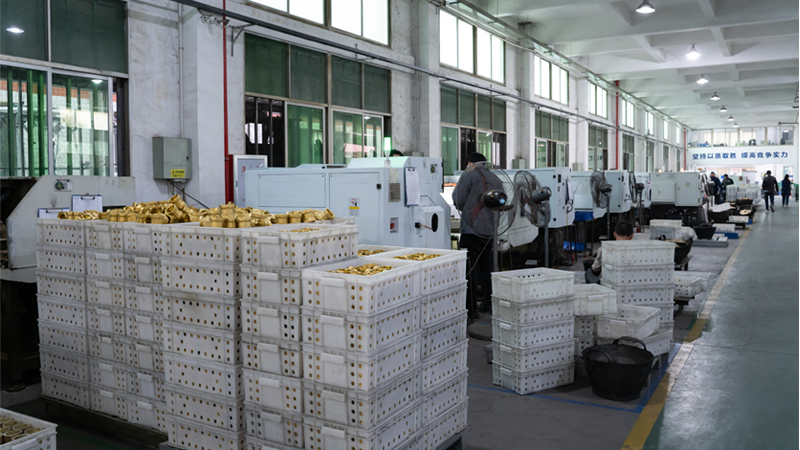

CNC Machining

Our CNC machining equipment provides precise and consistent processing of valve components. Critical dimensions, threads and sealing surfaces are strictly controlled to ensure accurate assembly and reliable sealing performance.

Surface Treatment

Brass Valve will Deburring and polishing. Passivation or nickel/chrome plating is applied to improve anti‑corrosion property and avoid copper oxidation.

Assembly &Pressure Testing

Every valve undergoes strict pressure testing before shipment. Body and seat tests are performed according to applicable standards and customer specifications to verify pressure resistance and sealing reliability.

Quality Inspection

Our quality control team conducts comprehensive inspections throughout the production process. Finished valves are checked for dimensions, appearance, materials, pressure performance and overall quality before final approval and shipment.
