Product Description

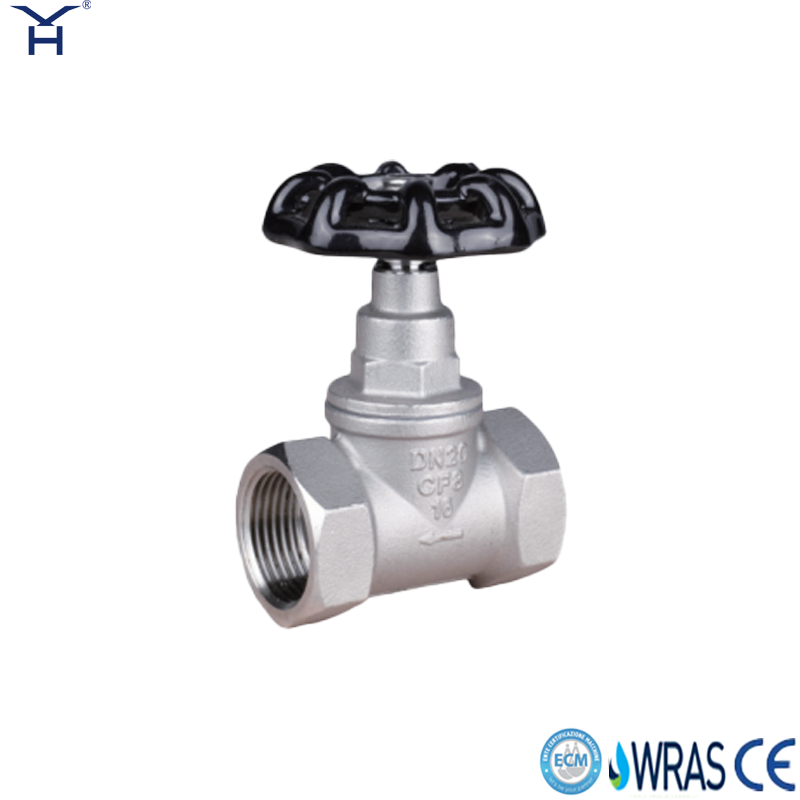

The DN15‑DN50 Stainless Steel Globe Valve is engineered to provide precise flow control, reliable shut-off capabilities, and long-term durability for demanding piping systems. Designed specifically for plumbing, heating, and fire-fighting water applications, this manual screw thread stop valve ensures secure fluid management. Manufactured from premium forged stainless steel, it offers exceptional mechanical strength and corrosion resistance, significantly reducing maintenance costs and replacement frequency for contractors and facility managers.
Backed by WRAS and CE certifications, this globe valve meets stringent international standards, making it a safe and compliant choice for potable water systems and commercial plumbing networks. The robust construction is paired with a highly visible red cast-iron handwheel, ensuring smooth manual operation even in complex or compact installation environments. Whether you are upgrading an existing heating system or sourcing reliable valves for a new commercial build, this series provides the performance stability and project compliance required by modern engineering.

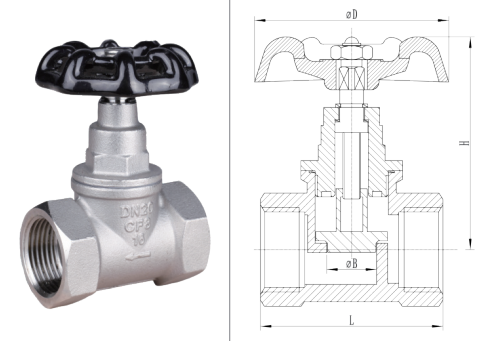

DN | SIZE | L | H | φD | φB | |
15 | 1/2" | 45±1.6 | 64 | 53 | 12.5 | |
20 | 3/4" | 54±1.6 | 71 | 58 | 16 | |
25 | 1" | 63±1.6 | 86 | 72 | 20.6 | |
32 | 11/4" | 75±1.6 | 98 | 78 | 26 | |
40 | 11/2" | 82±1.6 | 111 | 98 | 32 | |
Item | Specification |
|---|---|
Product Name | SUS Threaded Globe Valve |
Body Material | Forged SUS |
Operation | Red Cast Iron Handwheel |
Connection Type | Female Thread / Internal Thread |
Structure | Globe pattern (stop valve) |
Nominal Pressure | PN16 |
Size Range | DN15‑DN50 |
Applicable Medium | Clean tap water, hot‑water, fire‑fighting water |
Certifications | WRAS, CE |
Surface Treatment | Raw SUS finish |
Nominal Pressure: 1.6MPa
Working Medium: Water, non-corrosive liquids
Working Temperature: 0℃ ~ 100℃
Thread Standard: Complies with GB/T7307, ISO228 standards
Premium Forged Stainless Steel Construction
The valve body is crafted from high-quality forged stainless steel, delivering excellent mechanical strength and superior anti-corrosion performance. This ensures a prolonged service life and reduces the risk of system failures in demanding fluid environments.
Reliable Sealing & Flow Control
Featuring a classic globe-type flow channel structure, this stop valve provides outstanding cut-off and throttling performance. It maintains a highly reliable sealing property, ensuring stable and leak-free operation under PN16 nominal pressure conditions.
Ergonomic & Visible Operation
Equipped with a bright red cast-iron handwheel, the valve offers obvious visual identification in complex piping layouts. The ergonomic design guarantees smooth manual open-close operation, allowing maintenance personnel to isolate pipeline sections quickly and efficiently.
Versatile & Compact Installation
Designed with a double-end female internal thread connection, it allows for seamless and secure installation in small-bore pipelines. Its compact overall structure makes it highly suitable for installation environments where space is limited, without compromising on performance.
Certified Quality & Broad Sizing
Meeting strict international standards, this series is available with WRAS and CE certifications, ensuring compliance for potable water and commercial heating projects. With a rich size range from DN15 to DN50, it satisfies various project matching demands and simplifies procurement for large-scale installations.
Professional Valve Manufacturer | Integrated Manufacturing
We select high-quality raw materials according to product specifications and international standards. All incoming materials are carefully inspected to ensure chemical composition, mechanical properties and traceability.
Valve surfaces are professionally shot blasted to remove rust, scale and impurities. Protective coatings are then applied according to customer requirements, providing excellent corrosion resistance and a durable surface finish.
