Product Description

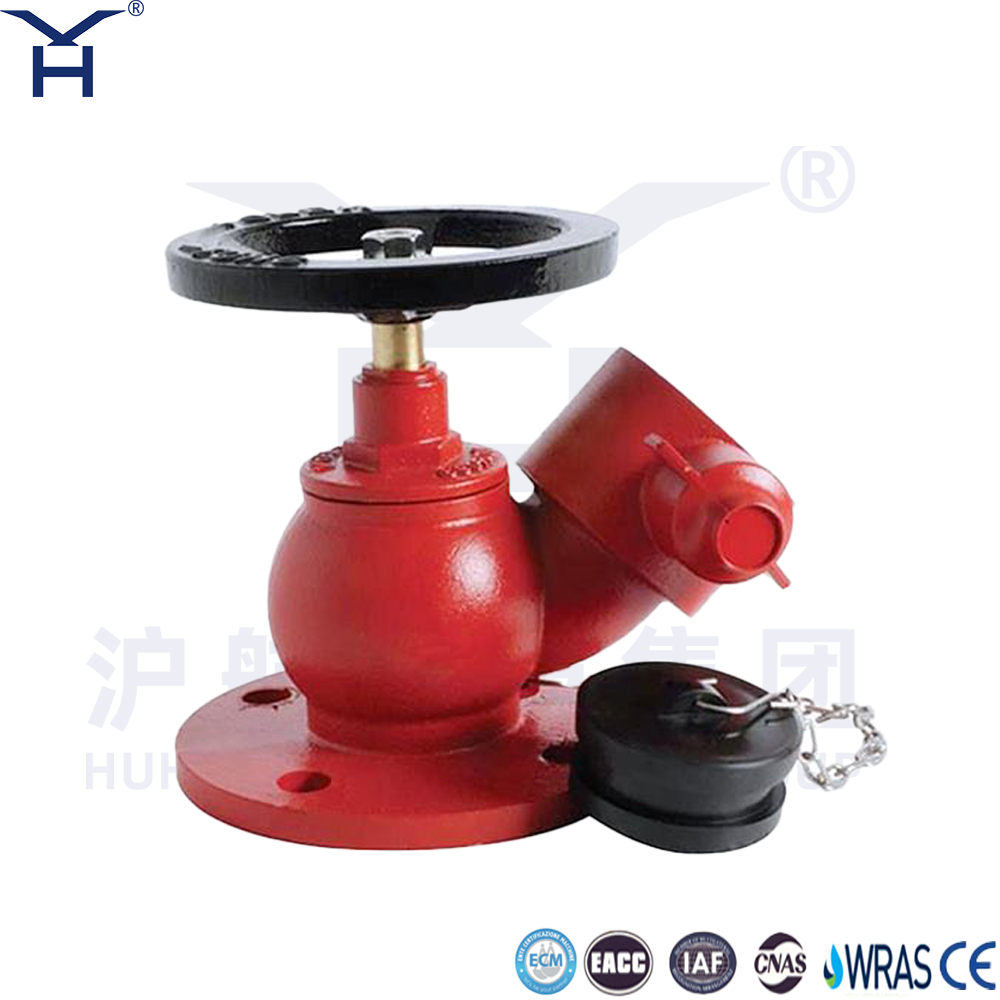

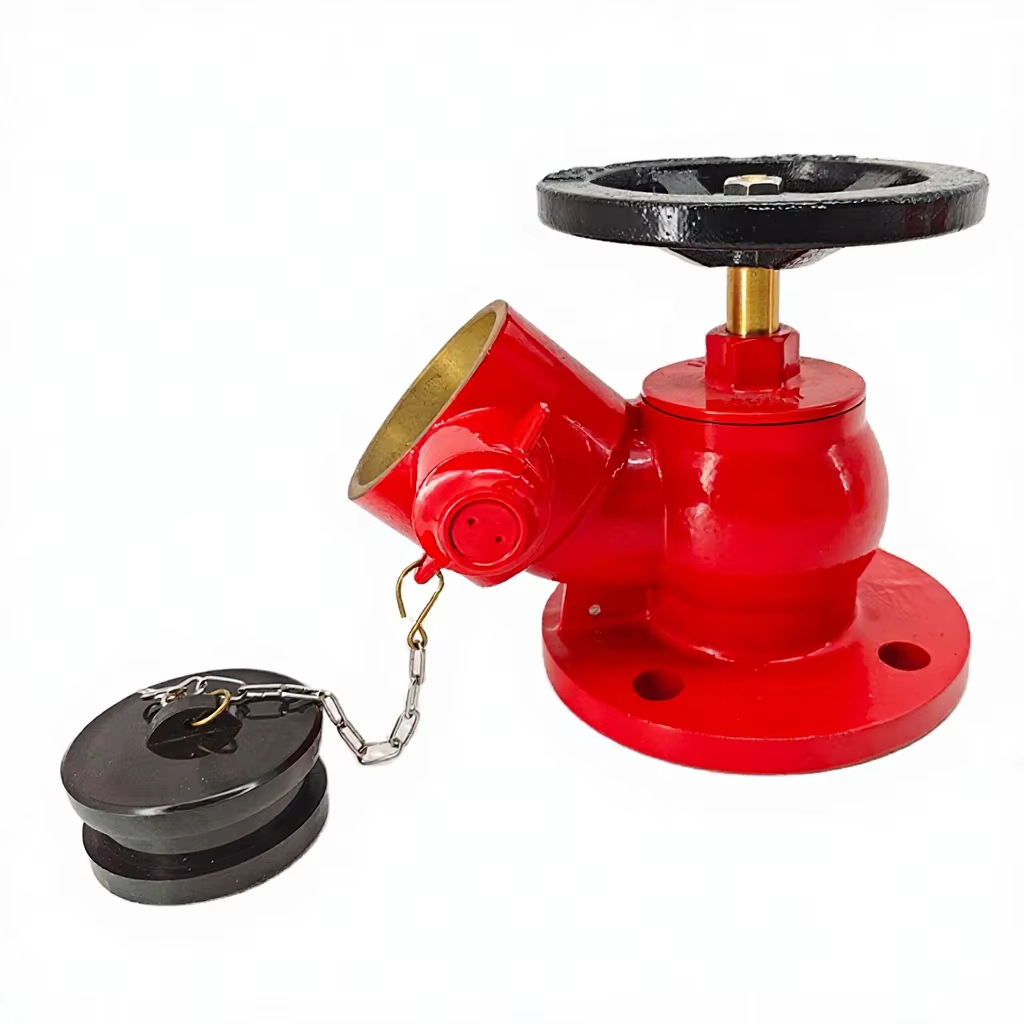

The Ductile Iron Body Indoor Fire Hydrant Valve is a critical component designed for reliable fire-fighting water systems. Engineered specifically for indoor fire-hose cabinets, this angle-pattern valve ensures rapid and efficient water supply during emergencies. Manufactured from premium ductile iron, it offers superior mechanical strength and impact resistance compared to standard cast iron, significantly reducing the risk of cracking under high pressure. The robust construction is complemented by a vibrant red epoxy coating, providing exceptional anti-corrosion properties and ensuring a long service life even in demanding environments. Whether for new commercial constructions or upgrading existing fire safety networks, this hydrant valve delivers the durability and performance required by modern fire protection standards.
Understanding the technical specifications is essential for ensuring compatibility with your fire protection project. Below is the detailed parameter data sheet for our DN65 Angle Fire Hydrant Valve.
Item | Specification |
|---|---|
Product Name | Angle Fire Hydrant Valve |
Body Material | Ductile Iron |
Surface Treatment | Red Epoxy Coating |
Operation | Black Handwheel Manual |
Connection Type | Male Thread / Flange (2 options) |
Structure | Angle pattern |
Nominal Diameter | DN65 |
Accessory | Outlet cap with anti‑lost chain |
Applicable Medium | Fire‑fighting water |

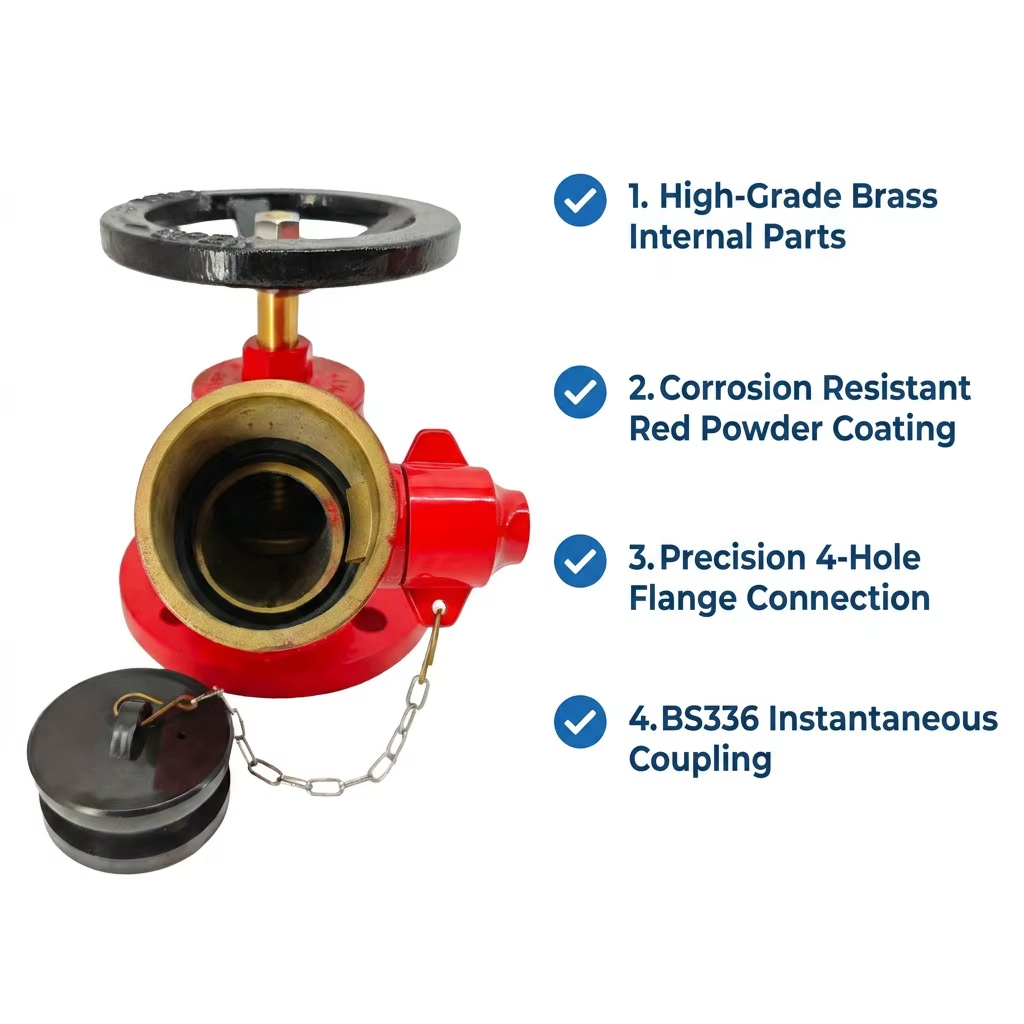

Premium Ductile Iron Construction: Built with a high-strength ductile iron body and finished with a red epoxy anti-corrosion coating. This combination guarantees exceptional durability and a prolonged service life, specifically optimized for fire water mediums.
Versatile Connection Options: To accommodate diverse site installation requirements, this valve is available in two connection types: a male thread end and a flange end. This flexibility helps procurement teams and contractors seamlessly integrate the valve into various piping layouts, reducing installation risks.

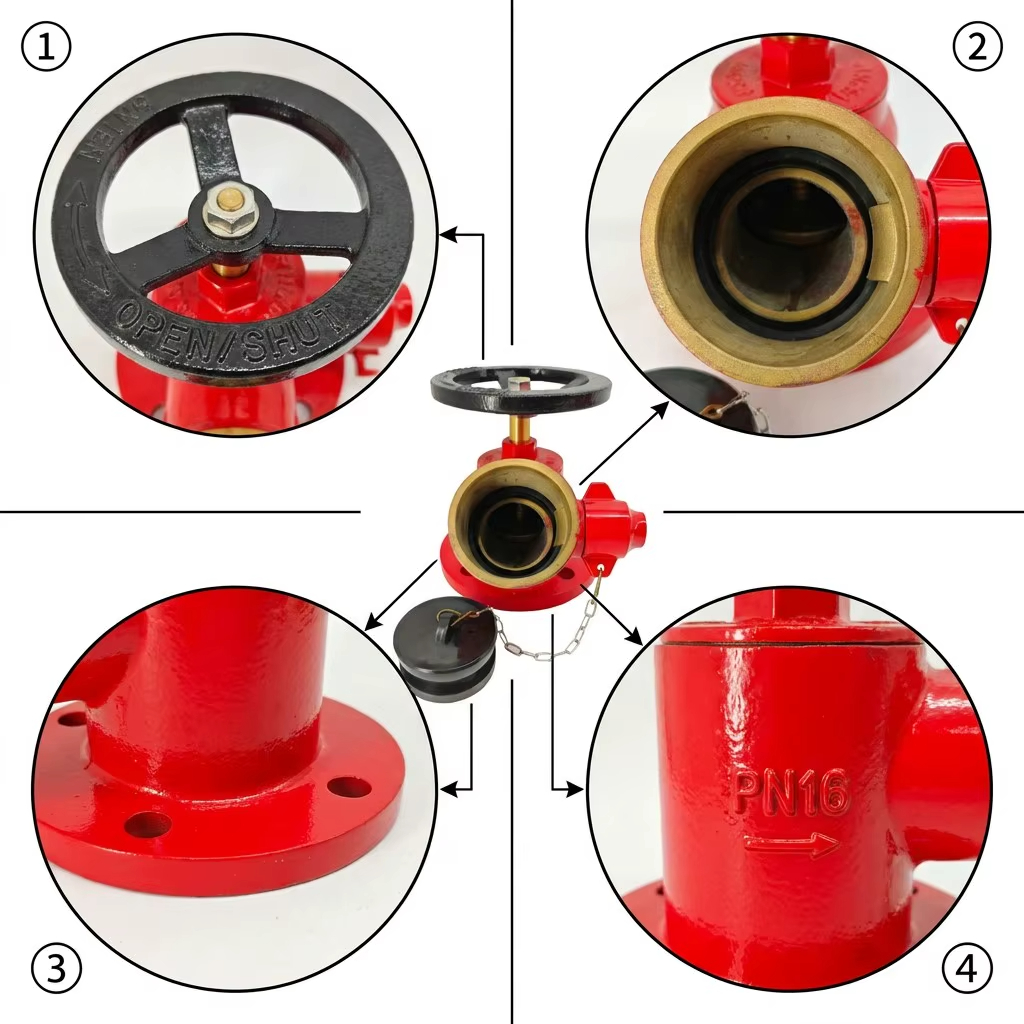

Ergonomic Manual Operation: Equipped with a sturdy black handwheel, the valve allows for quick and effortless manual operation. In emergency scenarios, the easy open-close mechanism ensures immediate water access. Additionally, the outlet port is fitted with a protective cap and an anti-lost chain to prevent damage and component loss during maintenance.
Optimized Angle-Way Flow: The specialized angle-pattern flow structure minimizes flow resistance. This design is crucial for maintaining optimal water pressure and flow rates required for effective fire-hose water supply.

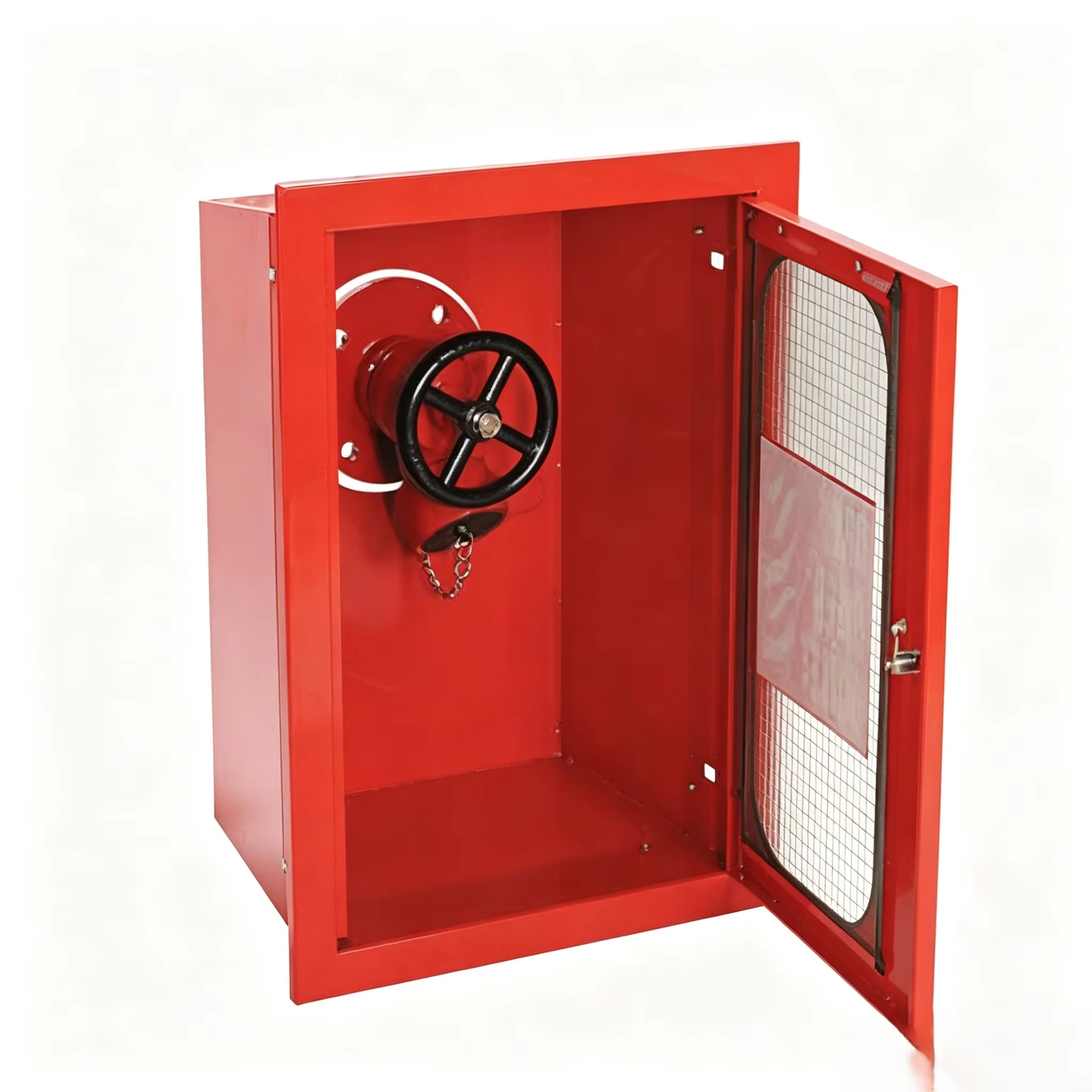

Compact and Space-Saving Design: The streamlined structure is perfectly suited for installation inside standard indoor fire-hose cabinets, maximizing space efficiency without compromising on performance or accessibility.
This fire hydrant valve is extensively applied across various commercial, residential, and industrial sectors to ensure robust fire safety. It is highly recommended for high-rise buildings, luxury hotels, large-scale shopping malls, office complexes, and industrial manufacturing plants.
Thread-End Version: Ideal for projects with narrow-space indoor cabinet installations, offering a secure and straightforward connection where space is limited.
Flange-End Version: Perfectly suited for heavy-duty fire pipe networks and large-scale projects that require convenient disassembly, regular maintenance, and long-term structural stability.
Q1: What is the manufacturing standard for this ductile iron fire hydrant?
A1: Our fire hydrant valves are primarily manufactured in accordance with the BS750 standard. We also support customized standards to meet specific regional or project requirements depending on your procurement needs.
Q2: Can you provide the necessary certification documents for project tenders?
A2: Yes, we assist procurement teams and contractors by providing the required certification documents for project bidding and compliance verification.
Q3: What is the packaging method for international shipping?
A3: To ensure product integrity during long-distance ocean transportation, we utilize durable plywood cases for sea freight, effectively protecting the valves from moisture and mechanical impact.
As a dedicated manufacturer of fluid control and fire-fighting systems, we pride ourselves on delivering reliable solutions for industrial, municipal, and commercial applications. Our advanced production facilities and rigorous quality management ensure that every valve and hydrant meets demanding project standards. We are fully equipped to handle large-scale manufacturing with consistent quality and reliable delivery schedules to support your global procurement needs.

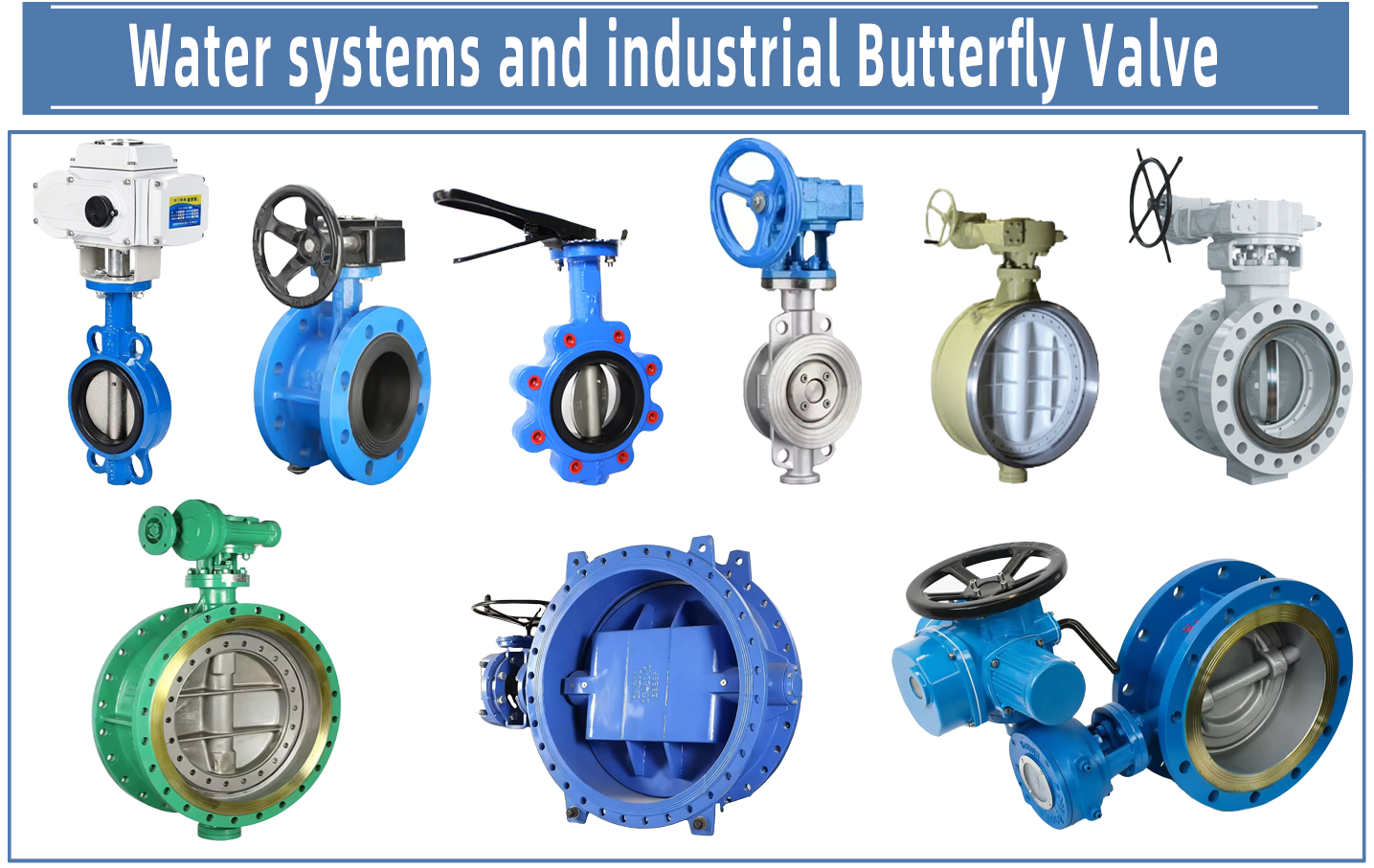

Beyond our core indoor fire hydrant series, we offer an extensive catalog of industrial valves and fluid control equipment. Our product lines include high-performance butterfly valves, gate valves, check valves, and complete fire protection water system components. Whether you require standard configurations or specialized OEM/ODM manufacturing services, our engineering team is ready to support your specific project requirements and help reduce your sourcing risks.
