Product Description

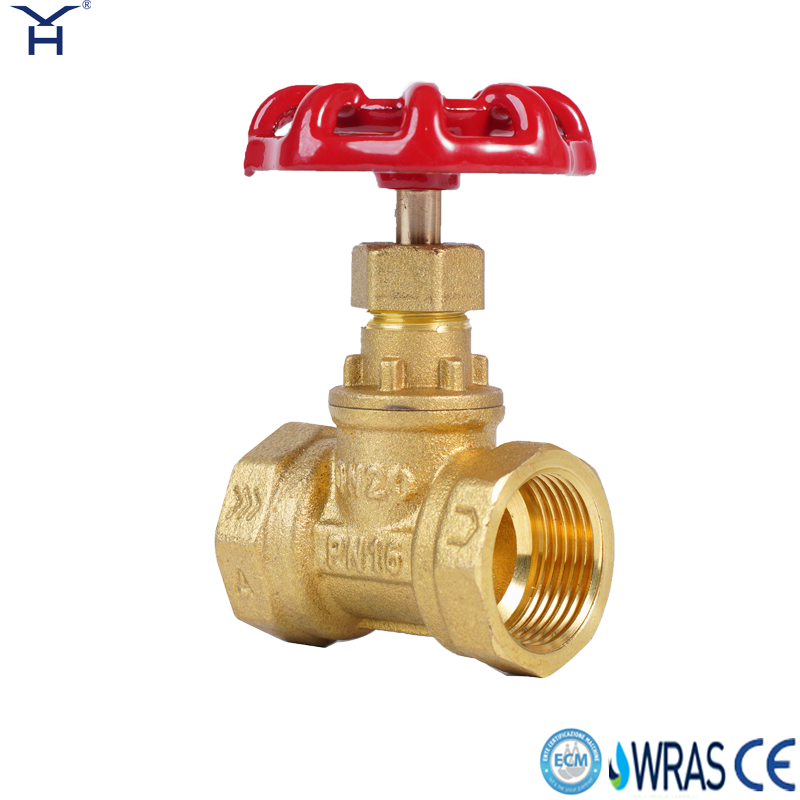

Engineered for reliability and long-term performance, our DN15‑DN50 Brass Globe Valve is a premium manual screw thread stop valve designed for demanding plumbing, heating systems, and fire-fighting networks. Manufactured from high-quality forged brass, this valve ensures exceptional mechanical strength and superior corrosion resistance, making it an ideal choice for commercial, industrial, and residential applications. Backed by WRAS and CE certifications, it guarantees strict compliance with safety and potable water standards, providing procurement managers and engineers with a dependable, low-maintenance solution for precise fluid control.
Accurate sizing is critical for seamless pipeline integration. Below is the detailed dimension data and technical specifications for our brass globe valves, available in a comprehensive size range from DN15 to DN50 to satisfy diverse project matching demands.
DN | SIZE | L | H | φD | φB | |
15 | 1/2" | 45±1.6 | 64 | 53 | 12.5 | |
20 | 3/4" | 54±1.6 | 71 | 58 | 16 | |
25 | 1" | 63±1.6 | 86 | 72 | 20.6 | |
32 | 11/4" | 75±1.6 | 98 | 78 | 26 | |
40 | 11/2" | 82±1.6 | 111 | 98 | 32 | |
Item | Specification |
|---|---|
Product Name | Brass Threaded Globe Valve |
Body Material | Forged Brass |
Operation | Red Cast Iron Handwheel |
Connection Type | Female Thread / Internal Thread |
Structure | Globe pattern (stop valve) |
Nominal Pressure | PN16 |
Size Range | DN15‑DN50 |
Applicable Medium | Clean tap water, hot‑water, fire‑fighting water |
Certifications | WRAS, CE |
Surface Treatment | Raw brass finish |
Nominal Pressure: 1.6MPa (Ensures reliable performance under standard system pressures)
Working Medium: Water, non-corrosive liquids (Ideal for plumbing and heating networks)
Working Temperature: 0℃~100℃ (Suitable for both cold distribution and hot water systems)
Thread Standard: Complies with GB/T7307, ISO228 standards (Facilitates universal compatibility)
Premium Forged Brass Construction: High-quality forged brass valve body delivers excellent mechanical strength and anti-corrosion performance, significantly extending service life.
Efficient Threaded Connection: Double-end female internal thread design ensures easy and secure installation, particularly beneficial for small-bore pipelines.
Ergonomic Manual Operation: Equipped with a bright red cast-iron handwheel for obvious visual identification and smooth, low-torque manual open-close operation.
Optimized Flow Control: The globe-type flow channel structure provides exceptional cut-off and throttling performance for precise fluid regulation.
Dependable Sealing Mechanism: Engineered for reliable sealing properties, ensuring leak-free and stable operation under PN16 nominal pressure.
Space-Saving Design: Compact overall structure makes it highly suitable for installation environments where space is limited.
Certified Quality Assurance: Meets stringent international standards, proudly available with WRAS and CE certifications to guarantee safety and project compliance.
Comprehensive Sizing: Rich size range from DN15 to DN50, satisfying various project matching demands and fluid control requirements.
Professional Valve Manufacturer | Integrated Manufacturing
Qualified brass are selected. Alloy composition is checked by spectrometer to guarantee pressure‑resistance and dezincification‑resistance performance.
Brass Valve will Deburring and polishing. Passivation or nickel/chrome plating is applied to improve anti‑corrosion property and avoid copper oxidation.
