Product Description
Engineered for durability and precise flow control, our Brass Threaded Ball Valve with a black handwheel is a premium solution for water supply pipeline systems. Manufactured from high-grade brass, this female thread gate valve ensures long-term operational stability in both residential and commercial plumbing applications. With a robust PN16 pressure rating, it is specifically designed to handle the rigorous demands of modern fluid control systems, minimizing the risk of leaks and reducing maintenance costs for facility managers and contractors.
The ergonomic black handwheel provides smooth and effortless actuation, allowing operators to quickly shut off or regulate water flow during routine maintenance or emergency situations. The internal ball mechanism is precision-machined to ensure a tight seal, effectively preventing internal bypass and external leakage. Featuring standard female threads that comply with international plumbing standards, this brass valve facilitates straightforward installation, seamlessly integrating into existing pipeline infrastructures without the need for complex modifications. It is highly suitable for conventional tap water distribution, HVAC heating networks, and various non-corrosive liquid transportation systems. By choosing this valve, purchasing managers can ensure project compliance while delivering a reliable fluid control mechanism that minimizes system downtime and lowers the total cost of ownership.
1. Nominal Pressure: 1.6MPa (PN16)
2. Working Medium: Water, non-corrosive liquids
3. Working Temperature: 0℃ ~ 100℃
4. Thread Standard: Complies with GB/T7307 and ISO228 standards
5. Actuation Method: Lever, Magnetic Lock
To assist engineers and procurement teams in specifying the correct components for their pipeline projects, we provide a comprehensive size chart. The available sizes range from DN15 (1/2") to DN50 (2"), covering a wide spectrum of flow volume requirements. Please refer to the dimensional table below to verify the exact measurements (L, H, D, φB) and ensure perfect compatibility with your system layout.
DN | SIZE | L | H | D | φB |
15 | 1/2" | 49±1.6 | 34 | 75 | 13 |
20 | 3/4" | 57±1.6 | 40.5 | 88 | 17 |
25 | 1" | 67±1.6 | 49 | 99 | 21 |
32 | 11/4" | 73±1.6 | 56 | 120 | 27 |
40 | 11/2" | 84±1.6 | 66 | 130 | 34 |
50 | 2" | 97±1.6 | 82 | 148 | 41 |

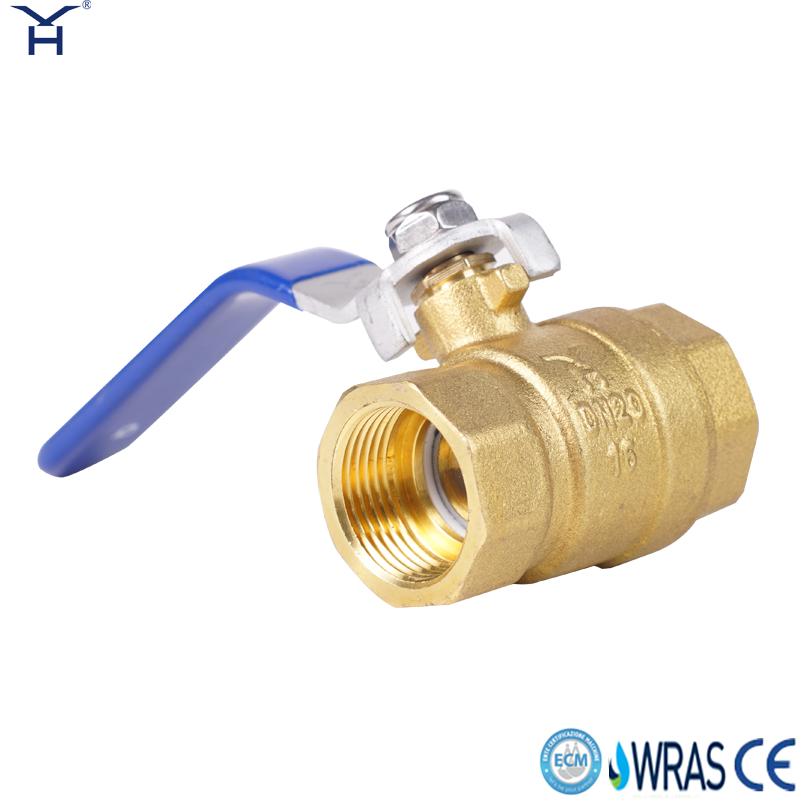

Quality and safety are paramount in potable water applications. This brass threaded ball valve is fully backed by WRAS and CE certifications, demonstrating its strict compliance with European health, safety, and environmental protection standards. The WRAS approval specifically guarantees that the brass material and internal sealing components will not contaminate drinking water, making it an exceptionally safe and dependable choice for municipal water supply projects, residential complexes, and commercial buildings. For procurement professionals and project contractors, these recognized certifications significantly reduce purchasing risks, ensure regulatory compliance, and streamline the approval process for demanding public and private tender submissions.
What is the working pressure of this brass ball valve?
The rated pressure is PN16 (1.6MPa), making it highly suitable for conventional tap water, HVAC heating networks, and fire-fighting water pipelines.
What thread standard does this valve adopt?
It features standard female threads complying with GB/T7307 and ISO228. We can also provide BSPP or NPT internal threads according to your specific request, which are commonly used for plumbing projects. Custom thread requirements can be discussed to match your system.
What medium can this brass ball valve handle?
It is designed for water and various non-corrosive liquids. Backed by WRAS and CE certifications, it is fully qualified for safe use in potable-water pipeline applications.
Can I get certificates for tender submission?
Yes, complete certification documents (including WRAS and CE) can be provided upon request to support your project bidding and regulatory approval processes.
What sizes are available?
We offer a complete size range from DN15 (1/2") to DN50 (2") to meet different project demands and pipeline specifications.
Our comprehensive range of fluid control products extends beyond brass threaded ball valves. We provide dependable solutions designed for diverse applications, including municipal water supply pipelines, commercial HVAC systems, and complex industrial fluid management. Our manufacturing capabilities ensure consistent performance and operational stability for your pipeline infrastructure.
In addition to our brass gate and ball valves, we offer a wide selection of industrial flow control products, such as butterfly valves and specialized fittings. This extensive product line allows us to support large-scale procurement needs, helping buyers streamline their sourcing process and find the exact specifications required for their specific environments.
Looking for specific valve configurations or bulk purchasing options? Scan the enterprise contact codes below to reach our dedicated team directly. We are ready to provide detailed product catalogs, technical support, and customized quotes tailored to your project requirements. Scan to contact us for the full catalog and professional assistance.
