Product Description

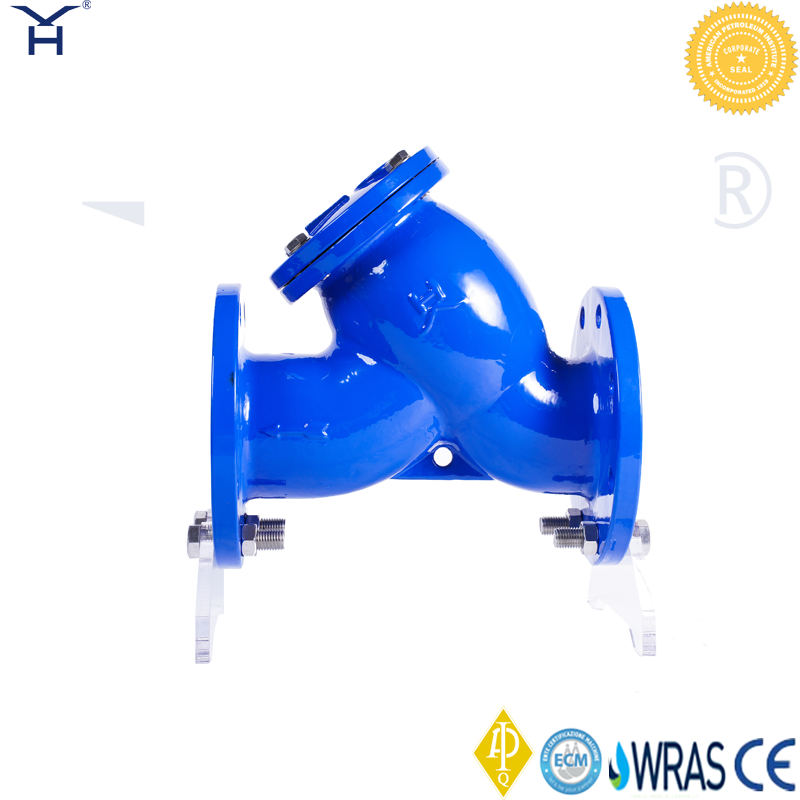

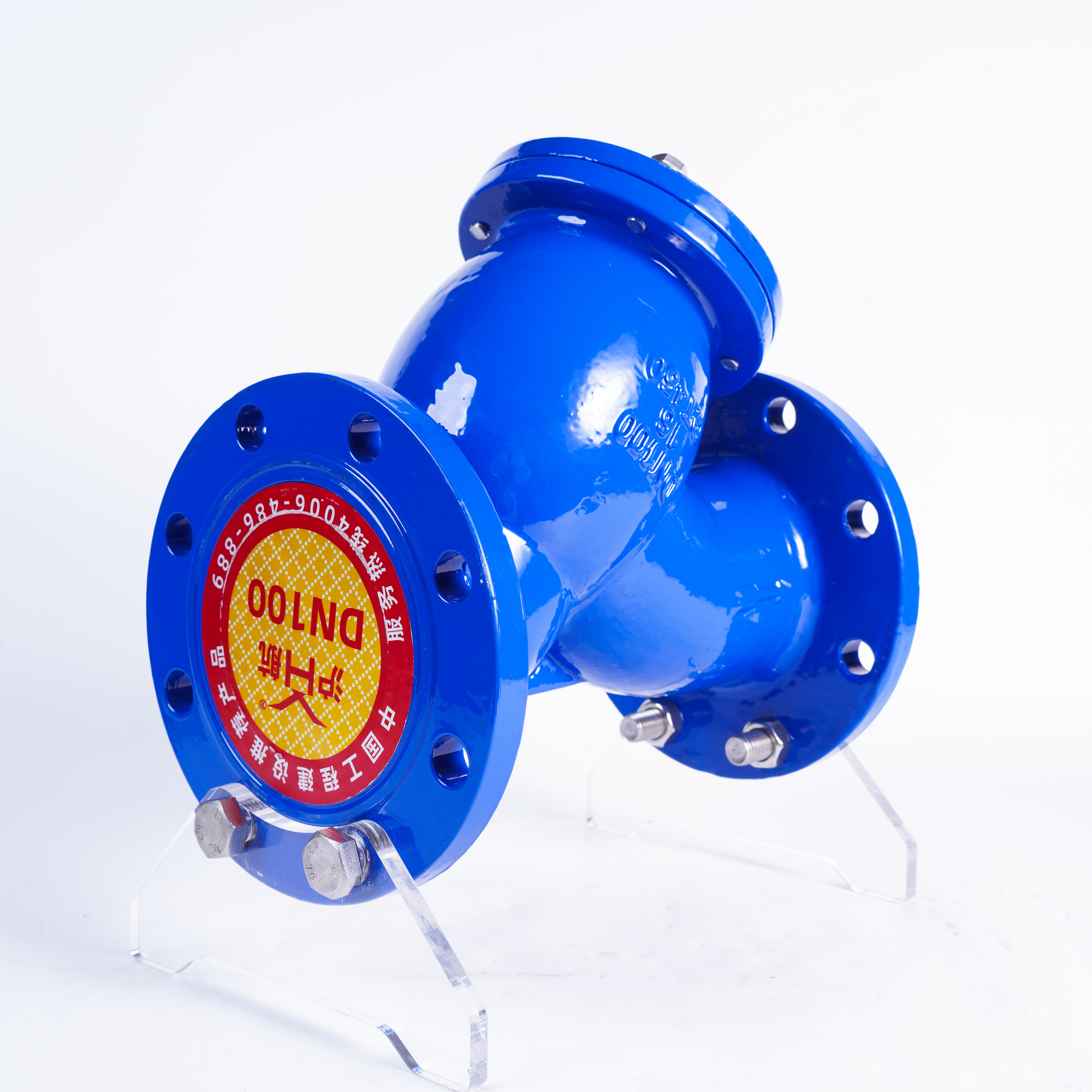

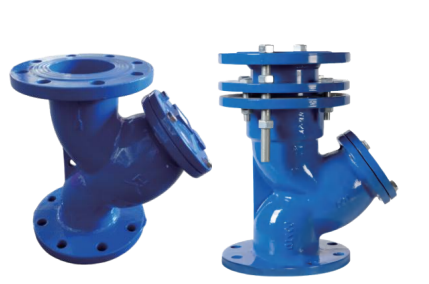

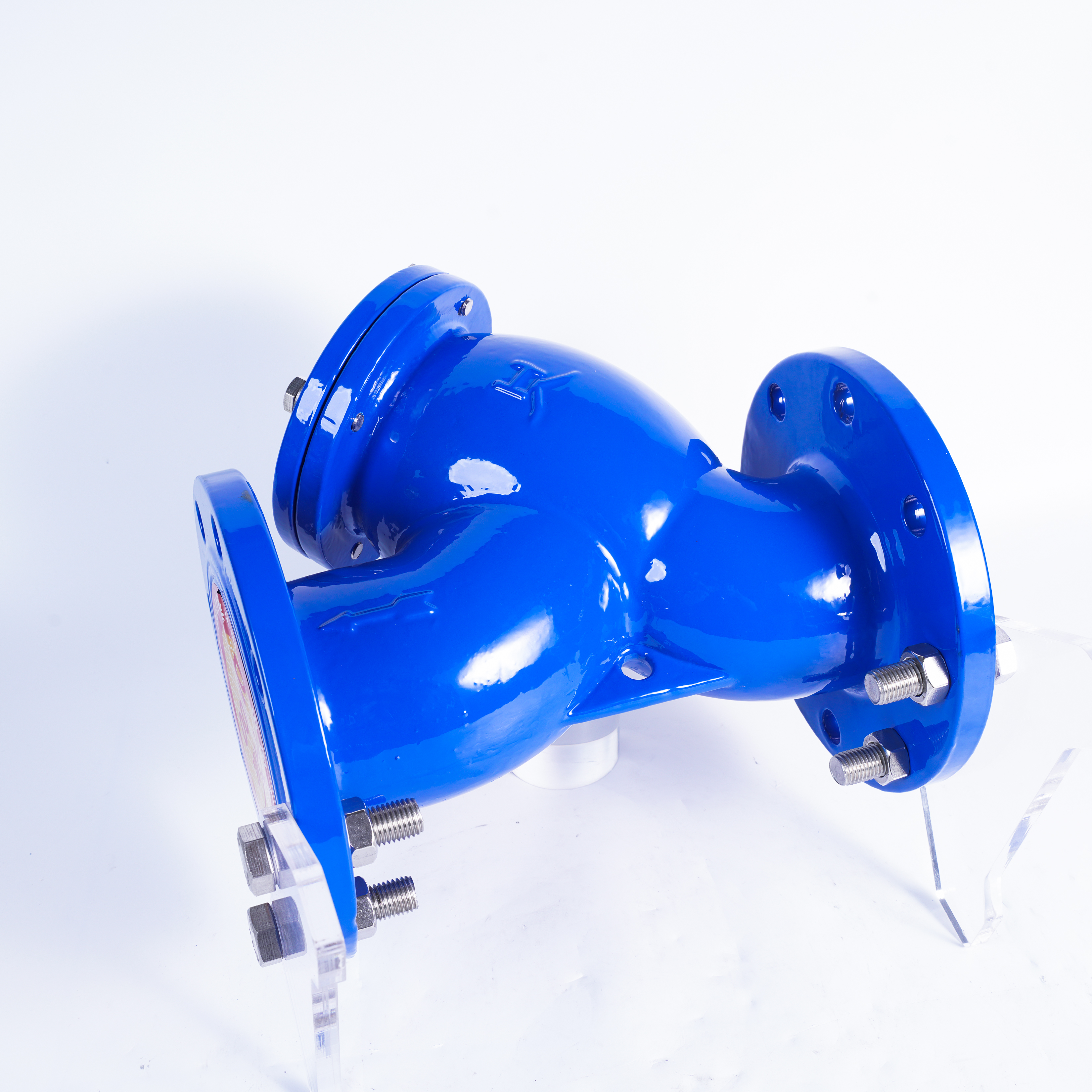

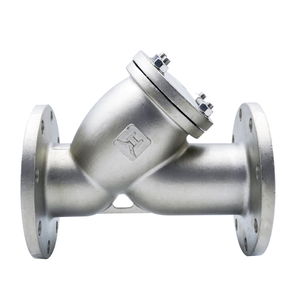

The Ductile Iron Y-type Strainer with an SS304 screen is engineered for high-efficiency filtration in water supply pump inlet pipelines and various industrial fluid systems. Designed to intercept solid impurities, debris, and particulates, this strainer plays a critical role in protecting downstream valves and equipment from damage or clogging. With a robust ductile iron body and a precision-crafted stainless steel filter screen, it ensures long-term operational stability, making it an essential component for municipal water supply, HVAC systems, and industrial fluid management.
Our Y-type strainers are manufactured and tested to meet stringent industrial standards, ensuring reliable performance and easy integration into your existing pipeline infrastructure.
Flange Connection Standards: Complying with GB/T17241.1-2024 and GB/T 9124.1-2019, the flanged ends guarantee precise alignment and secure installation. This compliance minimizes the risk of leakage at connection points and reduces installation time for engineering projects.
Strength and Sealing Tests: Every unit undergoes rigorous pressure and sealing tests in accordance with GB/T13927-2022. This strict quality control ensures the structural integrity of the ductile iron body and the reliability of the sealing rings under continuous operational pressure.
Comprehensive Specifications: Relevant technical parameters are detailed in Table 1, main component materials in Table 2, and overall dimensions in Table 3. These specifications provide clear guidance for accurate product selection based on your system's pressure and size requirements.
Table 1: Technical Parameters Table | ||||||||||||||||||
PN | 1.0MPa | 1.6MPa | 2.5MPa | |||||||||||||||
Body Test | 1.5MPa | 2.4MPa | 3.75MPa | |||||||||||||||
Seal Test | 1.1MPa | 1.76MPa | 2.75MPa | |||||||||||||||
Temperature | 0℃-80℃ | |||||||||||||||||
The materials selected for this Y-strainer are focused on maximizing durability and operational safety. The body and bonnet are constructed from high-quality ductile iron, offering superior tensile strength and impact resistance compared to standard cast iron. This ensures the strainer can safely handle pressure fluctuations in water supply systems. The sealing rings, available in NBR or EPDM, provide excellent resilience and chemical compatibility, ensuring a watertight seal across the designated temperature range. Furthermore, the use of carbon steel fasteners ensures structural stability under high-pressure conditions.
Table 2: Main Component Materials | ||||||||||||||||
Part Name | Materials | |||||||||||||||
Body, Bonnet | Ductile Iron | |||||||||||||||
Filter Screen | Stainless Steel (SS304) | |||||||||||||||
Sealing Ring | NBR/EPDM | |||||||||||||||
Fastener | Carbon Steel | |||||||||||||||

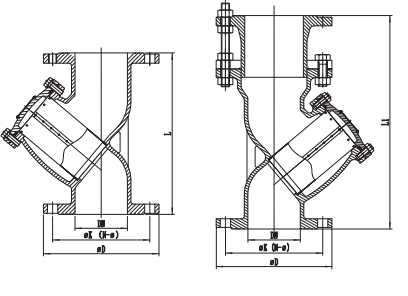

Table 3: Overall Dimensions mm | Fastener Carbon Steel/Stainless Steel | ||||||||||||||||
DN | φD | φK | N-φ | L | L1 | ||||||||||||
PN10 | PN16 | PN25 | PN10 | PN16 | PN25 | PN10 | PN16 | PN25 | |||||||||
40 | 150 | 110 | 4-φ19(18) | 185±2 | - | ||||||||||||
50 | 165 | 125 | 4-φ19(18) | 202±2 | 300±12 | ||||||||||||
65 | 185 | 145 | 4-φ19(18) | 8-φ19(18) | 226±2 | 340±15 | |||||||||||
80 | 200 | 160 | 8-φ19(18) | 282±2 | 380±15 | ||||||||||||
100 | 220 | 235 | 180 | 190 | 8-φ19(18) | 8-φ23(22) | 305±2 | 430±15 | |||||||||
125 | 250 | 270 | 210 | 220 | 8-φ19(18) | 8-φ28(26) | 345±2 | 550±15 | |||||||||
150 | 285 | 300 | 240 | 250 | 8-φ23(22) | 8-φ28(26) | 395±2 | 559±15 | |||||||||
200 | 340 | 360 | 295 | 310 | 8-φ23 | 12-φ23 | 12-φ28(26) | 495±2 | 675±25 | ||||||||
250 | 395 | 405 | 425 | 350 | 355 | 370 | 12-φ23 | 12-φ28 | 12-φ31(30) | 595±2 | 775±25 | ||||||
300 | 445 | 460 | 485 | 400 | 410 | 430 | 12-φ23 | 12-φ28 | 16-φ31(30) | 625±3 | 900±25 | ||||||
350 | 505 | 520 | 555 | 460 | 470 | 490 | 16-φ23 | 16-φ28 | 16-φ34(33) | 650±3 | 1025±30 | ||||||
400 | 565 | 580 | 620 | 515 | 525 | 550 | 16-φ28 | 16-φ31 | 16-φ37(36) | 730±3 | 1150±30 | ||||||
450 | 615 | 640 | 670 | 565 | 585 | 600 | 20-φ28 | 20-φ31 | 20-φ37(36) | 800±3 | - | ||||||
500 | 670 | 715 | 730 | 620 | 650 | 660 | 20-φ28 | 20-φ34 | 20-φ37(36) | 850±3 | - | ||||||
600 | 780 | 840 | 845 | 725 | 770 | 770 | 20-φ31 | 20-φ37 | 20-φ41(39) | 1030±4 | - | ||||||
Robust Double-Layer Stainless Steel Mesh: The core filtration component utilizes a double-layer stainless steel (SS304) mesh structure. This design provides exceptional sturdiness, corrosion resistance, and durability, effectively capturing debris while withstanding the impact of high-velocity fluid flows.
Low Flow Resistance & High Efficiency: Engineered with an optimized internal flow path, the strainer minimizes pressure drop across the pipeline. This low flow resistance ensures that the overall system efficiency is maintained, reducing energy consumption for water supply pumps.
Large Dirt Holding Capacity & Convenient Blowdown: The Y-shaped configuration is specifically designed to accumulate a significant amount of impurities before requiring maintenance. When cleaning is necessary, the blowdown process is straightforward and convenient, significantly reducing system downtime and maintenance labor costs.
Customizable Screen Mesh Sizes: To accommodate diverse project requirements, the mesh size of the filter screen can be customized. Whether you need coarse filtration for large debris or fine filtration for smaller particles, the strainer can be tailored to suit specific medium conditions.
As an indispensable filtration device in medium conveyance pipeline systems, the Y-type strainer is typically installed at the inlet end of critical components such as pressure reducing valves, pressure relief valves, constant level valves, and water pumps. By effectively removing solid impurities from the fluid, it prevents scoring, clogging, and premature wear of sensitive valve internals and associated equipment. This proactive protection not only extends the service life of your pipeline infrastructure but also ensures the continuous, safe, and efficient operation of the entire fluid management system.
As a dedicated manufacturer of industrial fluid control solutions, we provide robust manufacturing capabilities to support your pipeline projects. From advanced forging processes to strict quality control, our production facilities are fully equipped to deliver reliable valves and strainers. We offer one-stop procurement services to meet diverse industrial requirements, ensuring long-term stability and reduced maintenance costs for your fluid handling systems.
Our products are widely implemented across various demanding industrial environments. Whether for municipal water supply networks, large-scale pump stations, or complex industrial fluid handling systems, our robust pipeline solutions ensure optimal flow control and reliable system protection. The extensive application of our equipment demonstrates our commitment to delivering high-performance components that adapt to rigorous operational conditions.
Looking for more pipeline solutions or specific technical catalogs? Our professional team is ready to assist you with tailored recommendations, reliable procurement support, and comprehensive product details. Connect with us directly to streamline your sourcing process and secure the right components for your upcoming projects.
For more products, please contact us
