Product Description
Size Range: 1/2"-12"
Valve Material: Stainless Steel
End Connections: Flanged
Stem and Disc Material: Stainless Steel
Rating: ASME Class 150/300, JIS 10K/20K, DIN PN16
Corrosion-Resistant Stainless Construction: Crafted with high-grade stainless steel body, stem, and disc components, ensuring superior durability and material traceability for severe fluid services.
Global Standard Versatility: Designed to meet ANSI B16.34 / API 603 specifications, with versatile rating options covering ASME Class 150/300, JIS 10K/20K, and DIN PN16.
Heavy-Duty OS&Y Architecture: Features an Outside Screw & Yoke (OS&Y) layout with a bolted bonnet and integral yoke, isolating stem threads from process media for reliable long-term actuation.
Standardized Dimensional Alignment: Flange ends conform to ASME B16.5 and face-to-face dimensions comply with ASME B16.10, allowing direct drop-in replacement across international systems.
Certified Inspection Protocols: Verified through strict pressure containment and leak testing in accordance with ANSI B16.34 and API 600 standards.

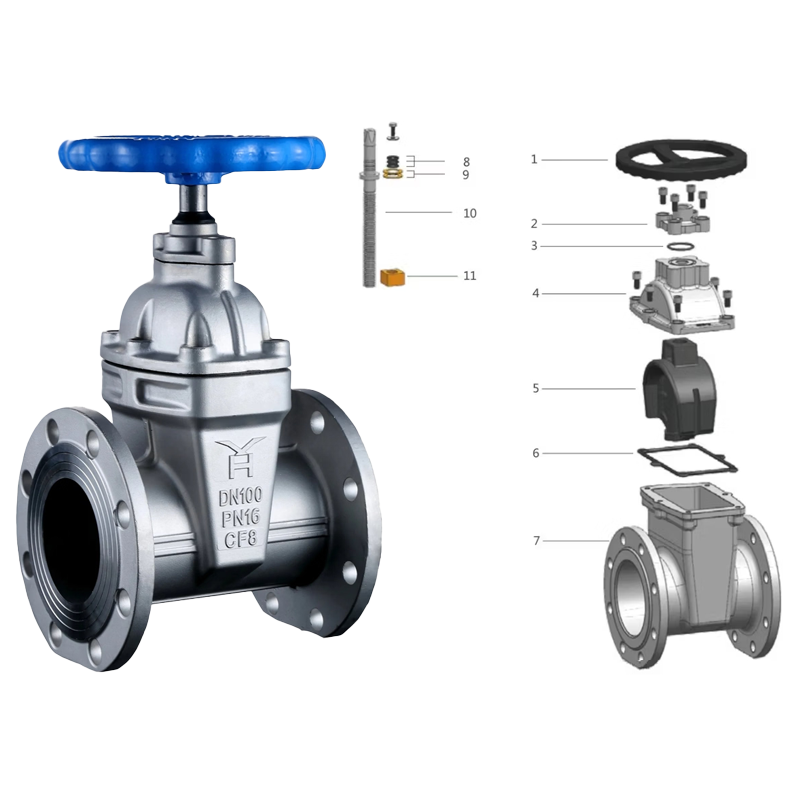

Part number | Part name | material | Part number | Part name | material |
1 | Hand wheel | WCB | 2 | gland | CF8 |
3 | O-ring | EPDM | 4 | bonnet | CF8 |
5 | ram | DI+EPDM | 6 | gasket | EPDM |
7 | body | CF8 | 8 | O-ring | EPDM |
9 | gasket | 45# | 10 | stem | SS304 |
11 | Plain pad bearing | HPb59-1 |
