Product Description

Core Features & Advantages

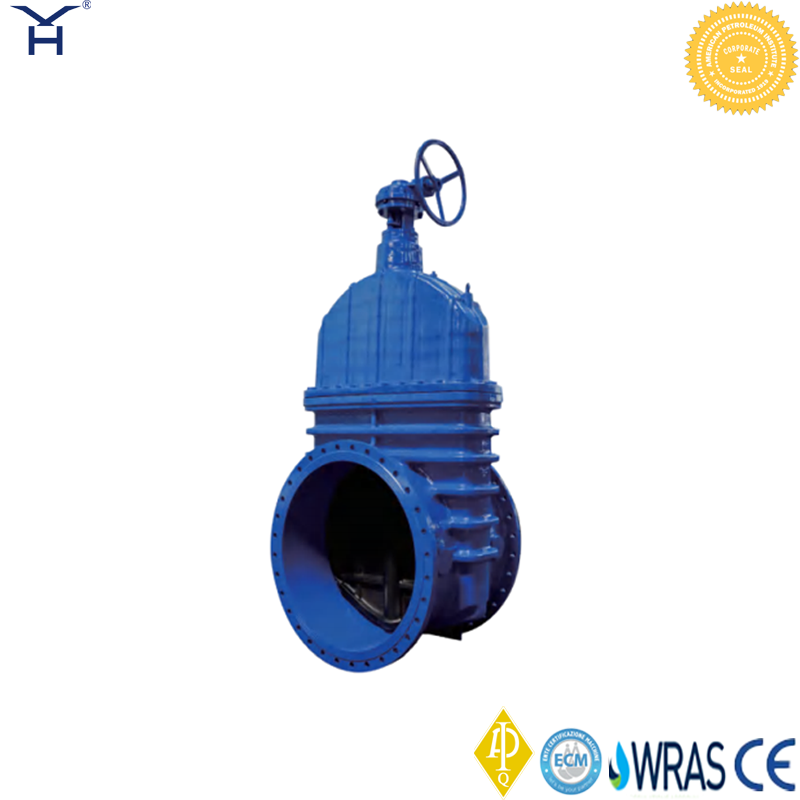

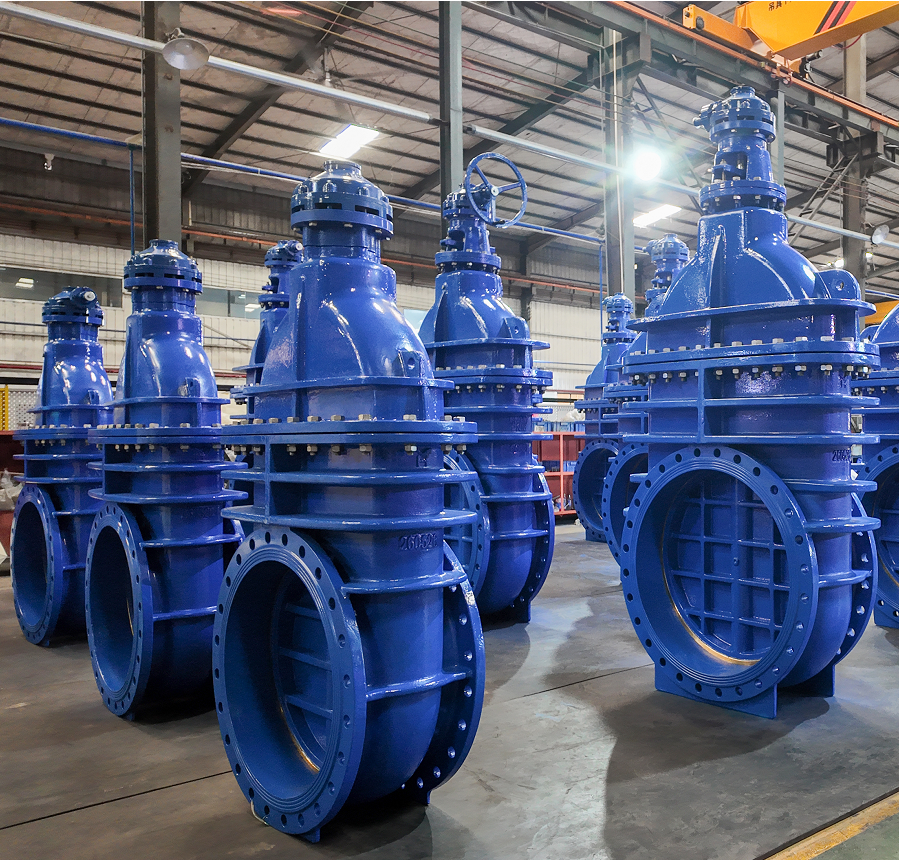

The Z45X Large Diameter Ductile Iron Non-Rising Stem Resilient Seated Gate Valve is engineered to deliver reliable fluid control, long-term stability, and minimal maintenance across diverse industrial and municipal pipeline systems. Designed with precision, it addresses common operational challenges to ensure optimal sealing and efficiency for your procurement needs.

1. Flat-Bottom Valve Seat for Unobstructed Flow

Traditional gate valves often experience poor sealing due to foreign objects—such as stones, welding slag, and cement—getting trapped in the bottom groove during pipeline installation or flushing. Our resilient seated gate valve features an innovative flat-bottom design that aligns perfectly with the pipeline cavity. This prevents debris accumulation, ensures smoother fluid flow, reduces pressure loss, and significantly extends the overall service life of the valve.

2. Full Rubber Encapsulation on Gate Plate

The wedge (gate plate) is fully encapsulated with high-quality rubber (NBR/EPDM) both internally and externally. Utilizing advanced rubber vulcanization technology, the gate plate maintains highly precise dimensions and superior elasticity. This strong bonding prevents the rubber from peeling or tearing under high-pressure conditions, ensuring a reliable, bubble-tight seal over thousands of operational cycles.

3. Outstanding Corrosion Resistance

To withstand harsh operational environments, the ductile iron valve body is thoroughly coated with epoxy resin powder. This thick protective layer effectively prevents internal and external corrosion and rusting. It strictly complies with national hygienic standards for drinking water and performs exceptionally well in demanding wastewater and sewage treatment applications, lowering long-term replacement costs.

4. Multi-Channel O-Ring Stem Seal

The valve stem is sealed using a robust multi-channel O-ring design, which significantly reduces friction resistance during opening and closing operations. This minimizes the risk of water leakage and ensures smooth, low-torque actuation. For added convenience, the design supports online maintenance (self-sealing type), allowing operators to replace sealing rings and packing without depressurizing the entire pipeline system.

5. Precision Cast Valve Body

Manufactured through advanced precision casting techniques, the valve body boasts highly accurate geometric dimensions. This precision guarantees excellent structural integrity and superior sealing performance without the need for secondary internal machining, thereby reducing potential structural weak points and ensuring consistent quality across large orders.

6. Lightweight & High-Strength Construction

Constructed from premium ductile iron, the valve offers an impressive strength-to-weight ratio. Its lightweight nature makes handling, installation, and routine maintenance significantly easier and more cost-effective, while still providing the high tensile strength required to withstand severe systemic pressures.

Technical Specifications & Standards

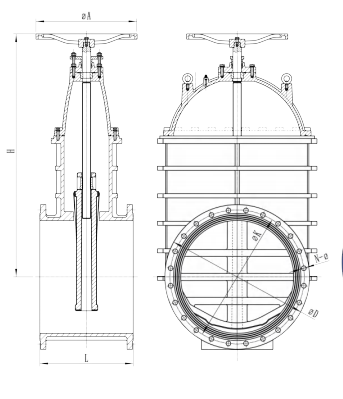

Our large diameter gate valves are manufactured and tested to meet rigorous industry standards, ensuring safe and reliable integration into your piping systems. Please refer to the detailed tables below for comprehensive specifications, material compositions, and dimensional data to assist with accurate project selection.

• Flange Connection: Strictly complies with the standards of GB/T 17241.1-2024 and GB/T 9124.1-2019.

• Testing Standards: Strength and sealing tests are conducted in accordance with the standard of GB/T 13927-2022.
