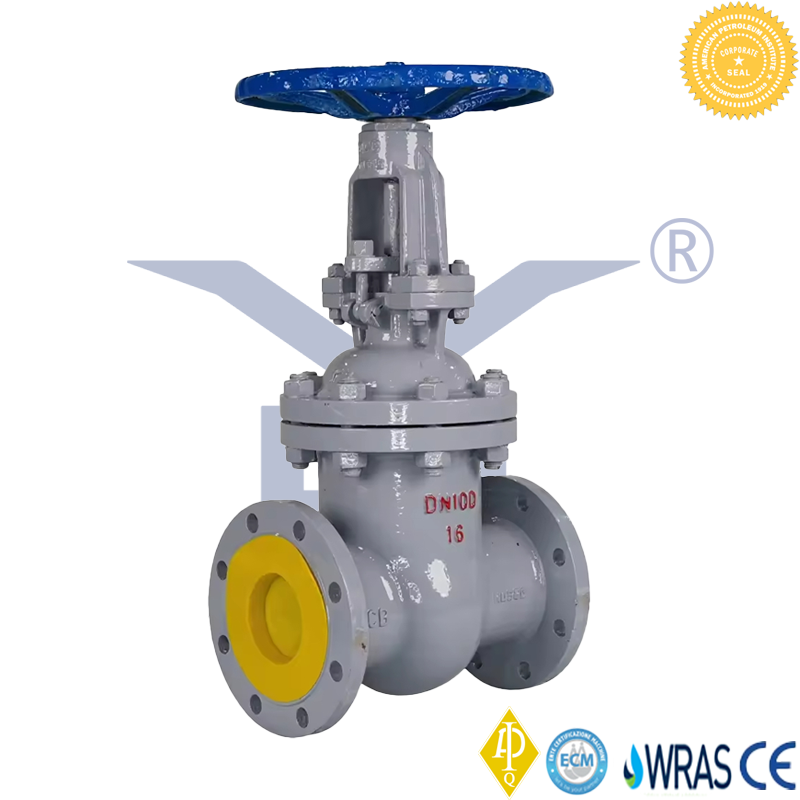

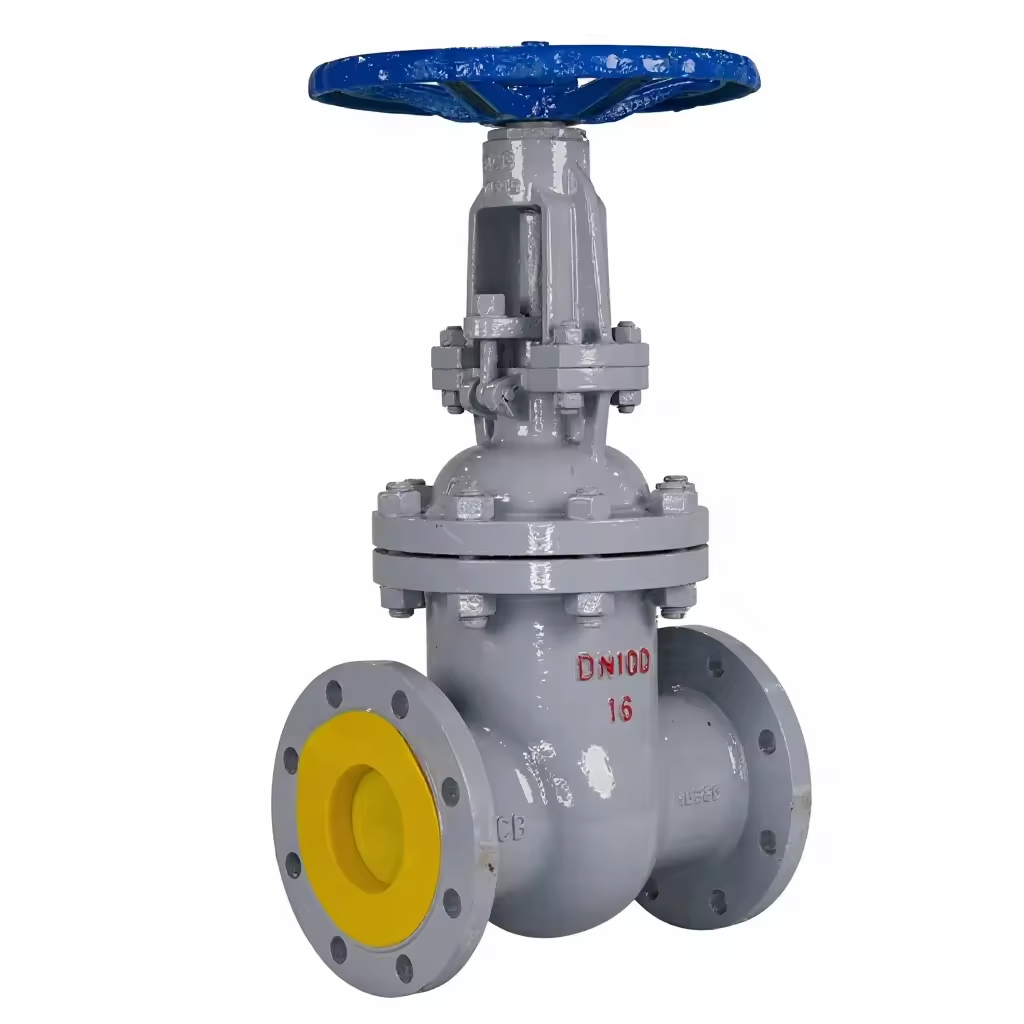

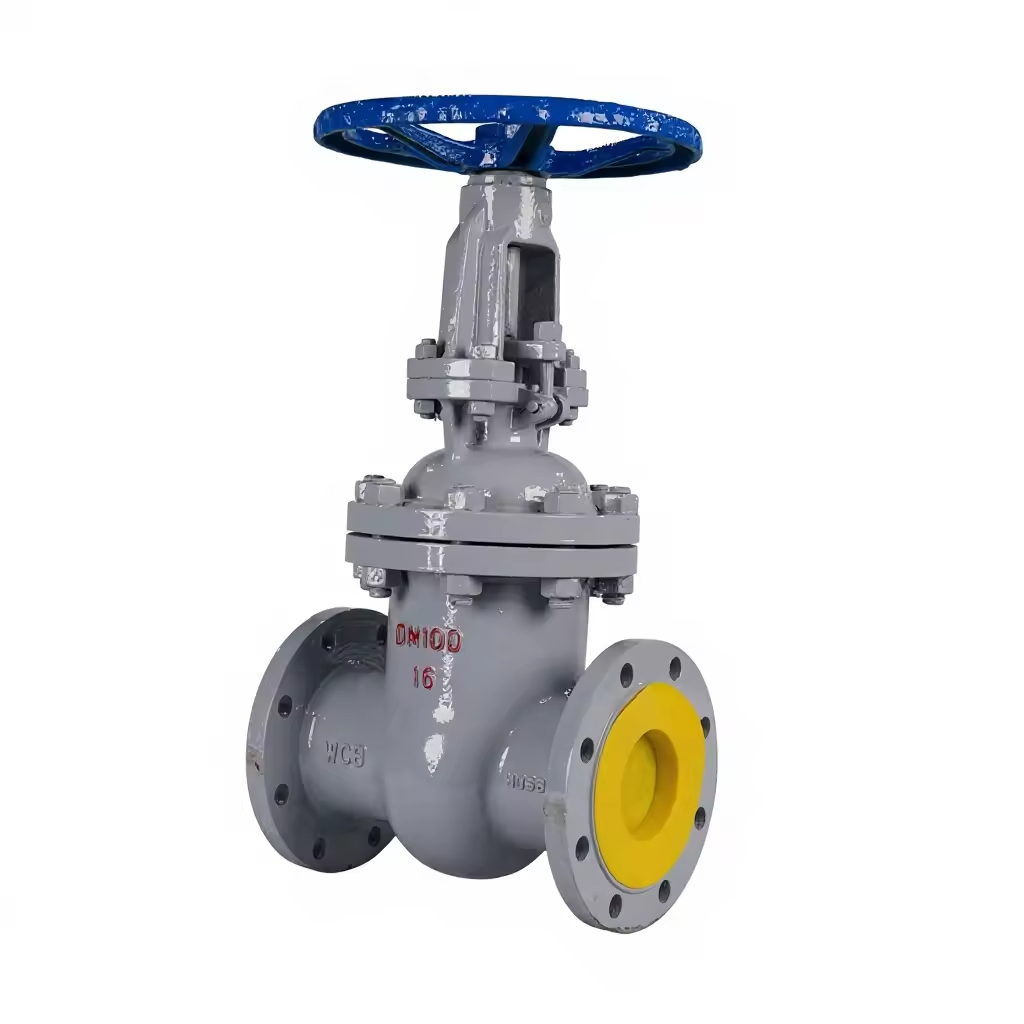

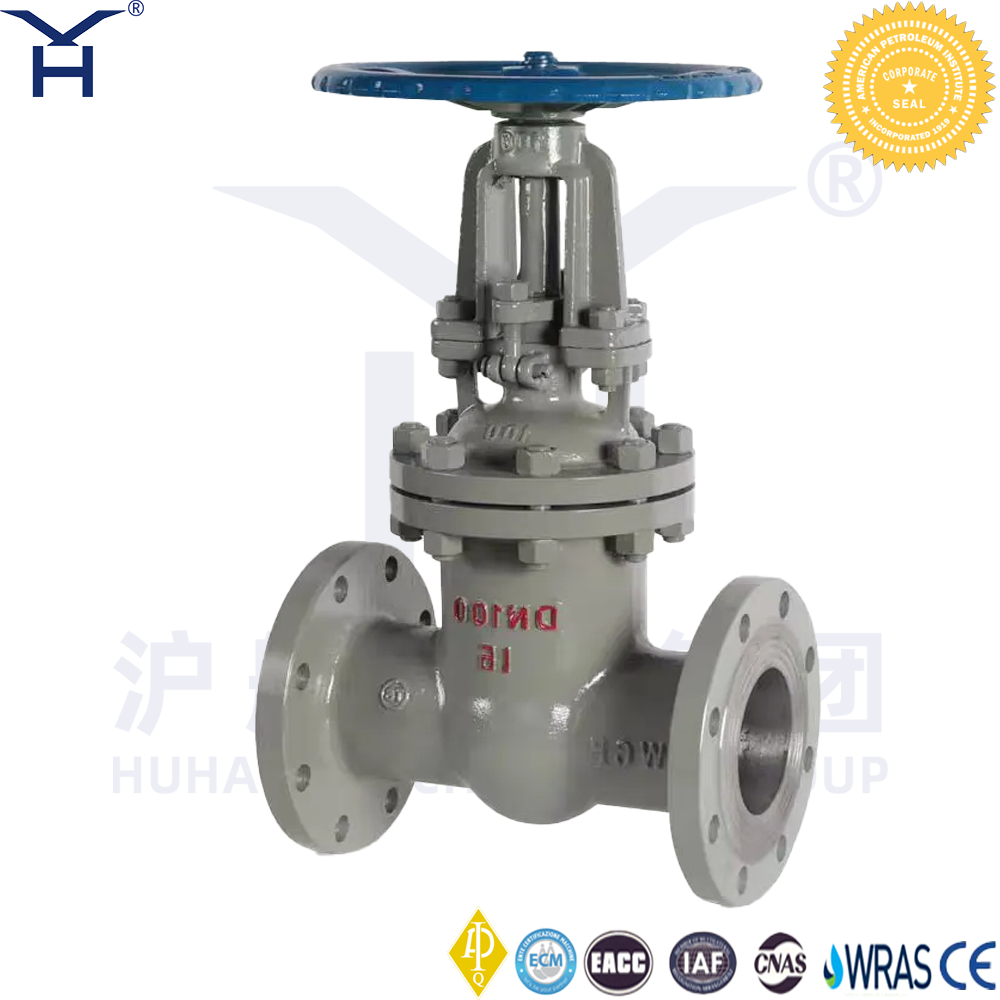

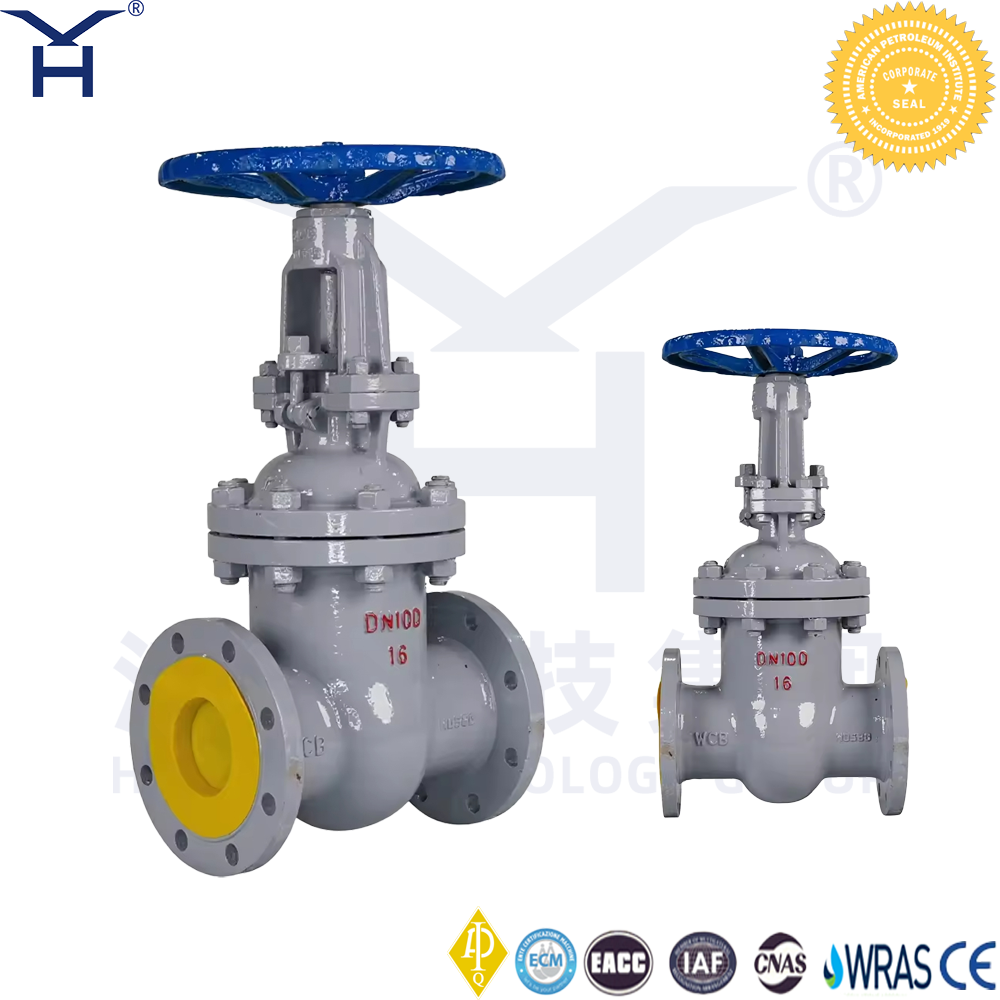

ANSI API 600 Gate Valve | Class 150-2500 OS&Y Rising Stem | WCB/SS316 | RF/RTJ/BW Ends

ANSI API 600 Gate Valve | Class 150-2500 OS&Y Rising Stem | WCB/SS316 | RF/RTJ/BW Ends

Technical Specifications: The American Standard Stainless Steel Gate Valve is designed and manufactured in accordance with API 600 and ASME B16.34 standards, with face-to-face dimensions complying with ASME B16.10 and flanged ends according to ASME B16.5. The valve is available in ASME Class 150, Class 300 and Class 600 pressure ratings, with sizes ranging from 1/2" to 24". The valve body and bonnet are available in ASTM A351 CF8 or CF8M stainless steel, while the stem can be manufactured from ASTM A276 Type 304 or 316 stainless steel. The valve features a wedge gate design, rising stem, bolted bonnet and full-port flow passage. Seat options include stainless steel, 13Cr, Stellite, PTFE or other materials according to the operating conditions. Packing can be graphite or PTFE, with stainless steel and graphite spiral-wound gasket options available. The valve can be operated by handwheel or gear operator and is suitable for water, oil, gas, steam and various industrial fluids. Hydrostatic and seat leakage tests are performed in accordance .

Quantity:
Availability:





Inquire Add to Basket

Product Description

Product Advantage

API Stainless Steel Gate Valve is designed for reliable isolation of pipelines carrying water, oil, gas, steam and various industrial fluids. Manufactured with ASTM A351 CF8 or CF8M stainless steel materials, the valve provides excellent corrosion resistance, mechanical strength and long-term service performance.

The valve is available in ASME Class 150, 300 and 600 pressure classes, with flanged ends manufactured according to applicable ASME standards.

Technical Parameters

Parameter	Specification
Nominal Size	NPS 2" – NPS 60" (DN50 – DN1500)
Pressure Class	Class 150, 300, 600, 900, 1500, 2500
Body Material	ASTM A216 WCB, A217 WC6/WC9/C5/C12, A351 CF8/CF8M/CF3/CF3M, A352 LCB/LCC
Bonnet Type	Bolted Bonnet (BB), Pressure Seal Bonnet (PSB), Welded Bonnet
Disc/Wedge	Flexible Wedge, Solid Wedge, Split Wedge; 13Cr/SS304/SS316 + Stellite 6 Hardfacing
Stem Type	OS\&Y Rising Stem, Non-Rising Stem (NRS), Rotating Stem
Stem Material	SS304, SS316, 17-4PH, XM-19, Alloy 20
Seat Material	13Cr Stainless Steel, SS304, SS316, Stellite 6, Aluminum Bronze
Temperature Range	-196°C (-320°F) to +538°C (+1,000°F)
End Connections	RF, RTJ, Butt Weld (BW) per ASME B16.5 / B16.25
Face-to-Face	ASME B16.10 (Long Pattern / Short Pattern)
Operation	Handwheel, Impact Handwheel, Bevel Gear, Electric Actuator, Pneumatic/Hydraulic Actuator
