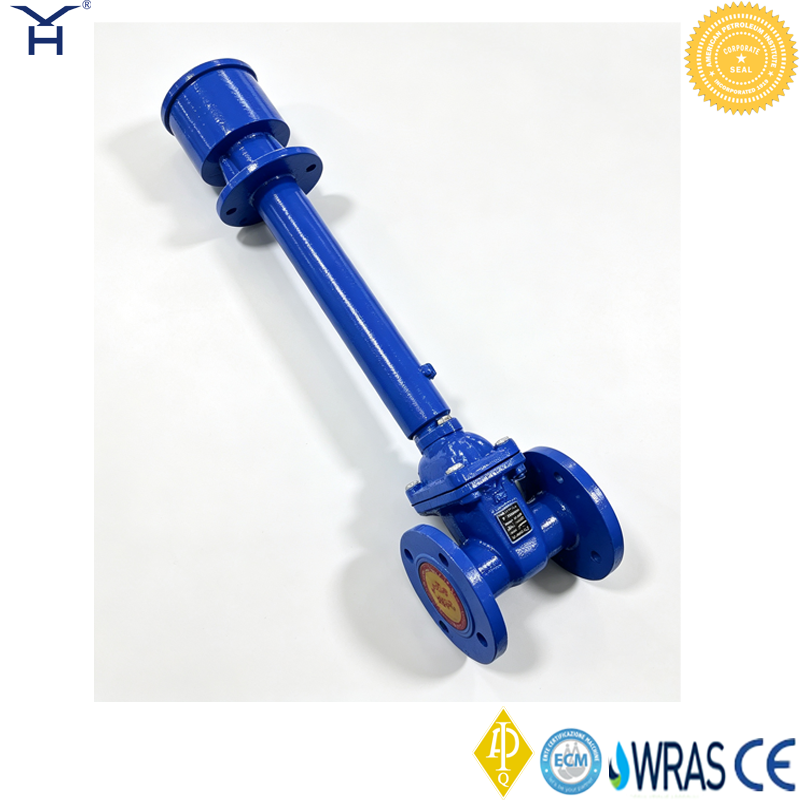

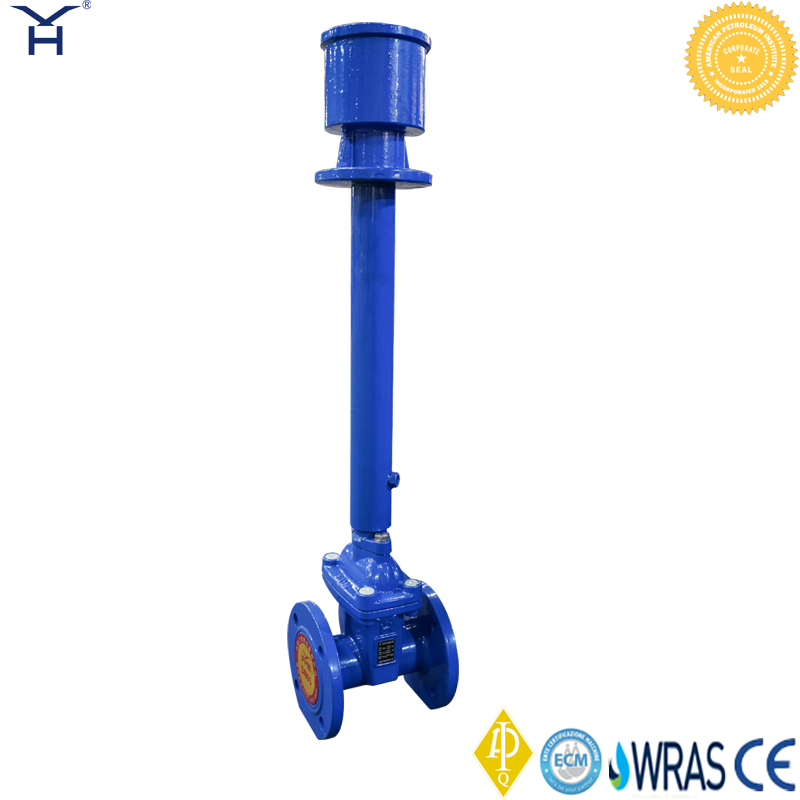

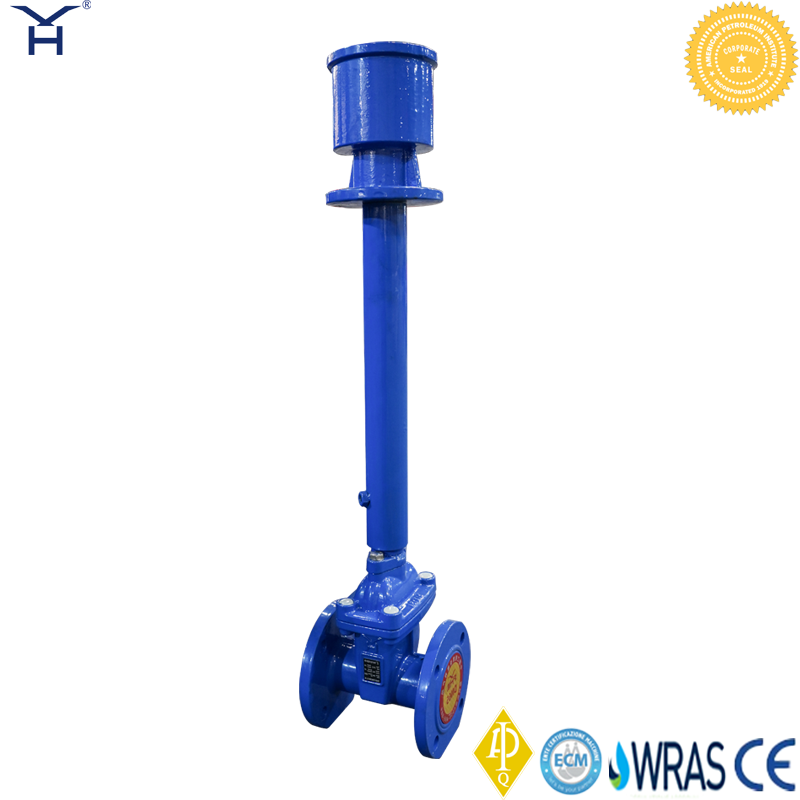

Manual Extended Stem Gate Valve Flange Connection Epoxy Coated Underground Buried Gate Valve

Video

Technical Parameters

1.Flange connection shall comply with the standards of GB/T 17241.1-2024 andGB/T 9124.1-2019.
2.Strength and sealing tests shall comply with the standard of GB/T 13927-2022.

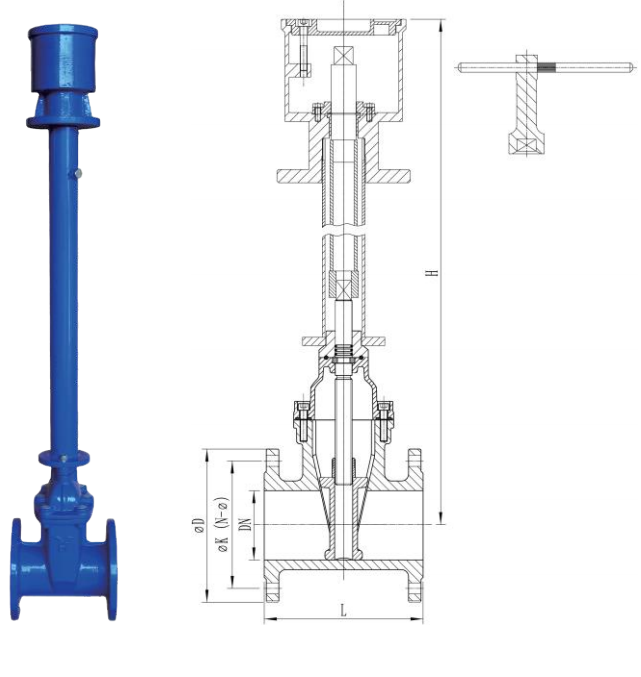

3.Refer to Table 1 for relevant technical parameters, Table 2 for main componentmaterials, Table 3 for overall dimensions.

Features

1.Flat-bottom Valve Seat: It overcomes the poor sealing issue of traditional gatevalves caused by foreign objects remaining in the grooves after pipeline installa-tion and flushing, such as stones, welding rod ends, welding slag, and cement.The soft-sealed gate valve adopts a flat-bottom design consistent with thepipeline, which prevents debris accumulation effectively, ensures smoother fluidflow, and extends the valve's service life.
2.Full Rubber-coated Gate Disc: The gate disc is fully rubber-coated bothinternally and externally. With top-tier domestic rubber vulcanization technology,the precise dimensions of the gate disc after vulcanization can be guaranteed.This ensures the rubber coating bonds firmly to the disc, resists peeling, anddelivers excellent elasticity.
3.Corrosion Resistance: The valve body is coated with epoxy resin powder, whichprevents corrosion and rust. It meets the national hygienic standards for drinkingwater and is also suitable for sewage treatment applications.
4.Multi-channel O-ring Design: This design reduces friction resistance duringopening and closing operations, and significantly minimizes water leakage.
5.Precision-cast Valve Body: The valve body is manufactured via precisioncasting. Its accurate geometric dimensions ensure the valve's sealingperformance without the need for internal machining.
6.Lightweight Construction: The valve body is precision-cast, featuring lightweight, high structural strength, and convenient installation and maintenance

Application

Mainly used for municipal water supply pipe network, urban underground water pipeline, water plant, sewage treatment project. The valve body is buried underground, the long stem extends to ground, operators control switch on ground without digging the ground.

Certification-CE/WARS
Our valves and plumbing products have obtained multiple international authoritative certifications, which verify product quality, material safety, pressure‑bearing performance and medium adaptability. All products strictly follow global industry standards, suitable for municipal water supply, fire‑fighting, building plumbing, heating and industrial pipeline projects, and meet the bidding requirements of overseas engineering projects.

Precision Valve Manufacturing

Professional Valve Manufacturer | Integrated Manufacturing

Raw Material

We select high-quality raw materials according to product specifications and international standards. All incoming materials are carefully inspected to ensure chemical composition, mechanical properties and traceability.

Forging & Casting

Advanced forging and casting processes are used to produce strong and reliable valve bodies and components. Strict process control ensures uniform structure, dimensional accuracy and excellent mechanical performance.

CNC Machining

Our CNC machining equipment provides precise and consistent processing of valve components. Critical dimensions, threads and sealing surfaces are strictly controlled to ensure accurate assembly and reliable sealing performance.

Shot Blasting & Coating

Valve surfaces are professionally shot blasted to remove rust, scale and impurities. Protective coatings are then applied according to customer requirements, providing excellent corrosion resistance and a durable surface finish.

Pressure Testing

Every valve undergoes strict pressure testing before shipment. Body and seat tests are performed according to applicable standards and customer specifications to verify pressure resistance and sealing reliability.

Quality Inspection

Our quality control team conducts comprehensive inspections throughout the production process. Finished valves are checked for dimensions, appearance, materials, pressure performance and overall quality before final approval and shipment.
