Product Description
The Grooved Non-Rising Stem Resilient Seated Signal Gate Valve is engineered specifically for modern fire protection systems. Constructed from durable ductile iron, this valve provides dependable water flow control for critical emergency infrastructure. Designed with an integrated signal switch and a grooved end connection, it ensures rapid installation and continuous monitoring capabilities, making it an essential component for commercial and industrial fire safety networks.
The following technical specifications detail the operational parameters of the ZSZF-16Q model, assisting engineers and procurement teams in verifying system compatibility for fire-fighting water applications.
Item | Parameter |
|---|---|
Model | ZSZF‑16Q |
Body Material | Ductile Iron |
Seal Material | EPDM Rubber Wedge |
Connection Type | Grooved End |
Nominal Pressure | PN16 |
Applicable Media | Fire‑fighting water |
Working Temperature | 0℃ ~ 80℃ |
Size Range | DN50‑DN300 |
Constructed with a ductile iron valve body and an epoxy red coating, providing reliable anti-corrosion properties that meet strict fire-fighting industry standard finishes.
Features a resilient wedge rubber gate designed for bi-directional zero leakage, ensuring exceptionally low flow resistance when the valve is fully open.
Utilizes a grooved end connection, which facilitates fast and secure installation specifically designed for fire-fighting grooved pipe systems.
Equipped with a built-in signal feedback switch to remotely transmit the valve's open-close status directly to the fire control room for real-time monitoring.
Includes handwheel manual operation paired with a highly visible mechanical position indicator on top for quick and accurate status checks.
Fully complies with international fire protection standards, backed by CE certifications for assured operational reliability.
Certifications and build specifications directly meet overseas fire-project acceptance requirements, effectively reducing compliance risks for international contractors.
The integral signal switch ensures stable signal transmission, effectively avoiding hidden dangers caused by accidentally closed valves during critical emergencies.
An EPDM full-coated wedge delivers excellent sealing performance, maintaining zero-leakage conditions even under long-term continuous water pressure.
The grooved connection design greatly shortens the construction period on-site, offering a convenient setup that simplifies later maintenance and component replacement.
A durable red epoxy anti-corrosion coating resists water-medium erosion, guaranteeing a long service life for both underground and indoor fire pipelines.
The compact overall structure is easy for on-site debugging, providing a stable and reliable solution for long-term standby fire-fighting systems.
To guarantee the structural integrity required for fire safety applications, our manufacturing process utilizes specialized forging and casting techniques. Each ductile iron valve body undergoes rigorous dimensional and pressure testing in our production workshops. By maintaining strict control over the entire manufacturing cycle—from raw material selection to final epoxy coating and signal switch integration—we ensure consistent performance and reliable supply for large-scale fire protection projects worldwide.
What is the function of the signal device?
It sends an electric signal to the fire control cabinet, allowing operators to monitor whether the valve is fully open or closed in real-time.
Is this valve for flow regulating?
No, it is designed exclusively for full-open or full-close isolation. It is not allowed for throttling or flow adjustment in fire protection systems.
What connection type does it adopt?
It utilizes a grooved connection, specifically matched to integrate smoothly with standard fire-fighting grooved pipe fittings.
Looking for reliable fire protection system components? We provide comprehensive, one-stop procurement services tailored for your specific project requirements. Whether you need customized configurations, bulk order processing, or technical guidance for our Grooved Non-Rising Stem Resilient Seated Signal Gate Valves, our dedicated support team is ready to assist you. Reach out to us directly through our convenient customer service channels below for quick responses, professional consultation, and streamlined sourcing solutions.

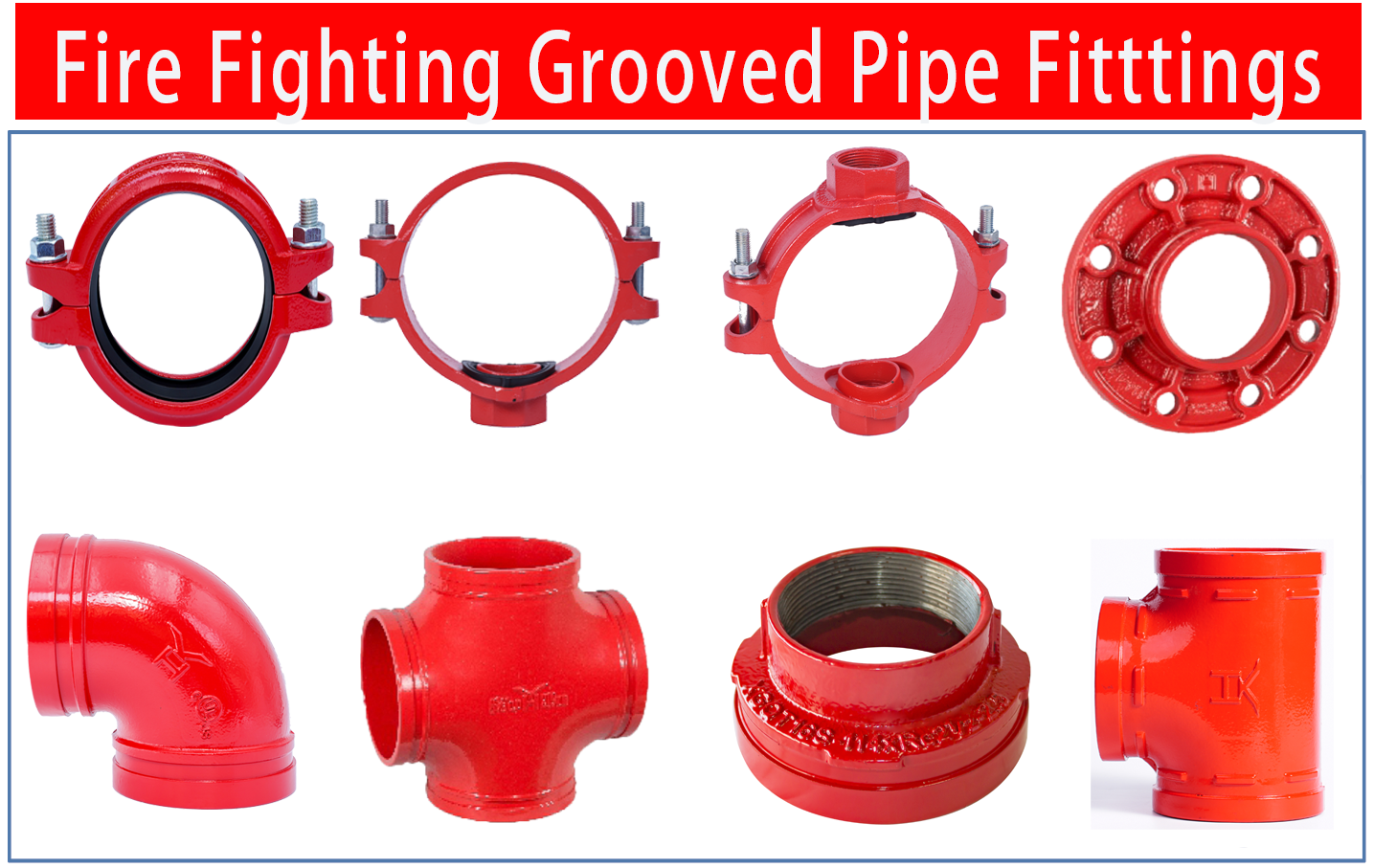

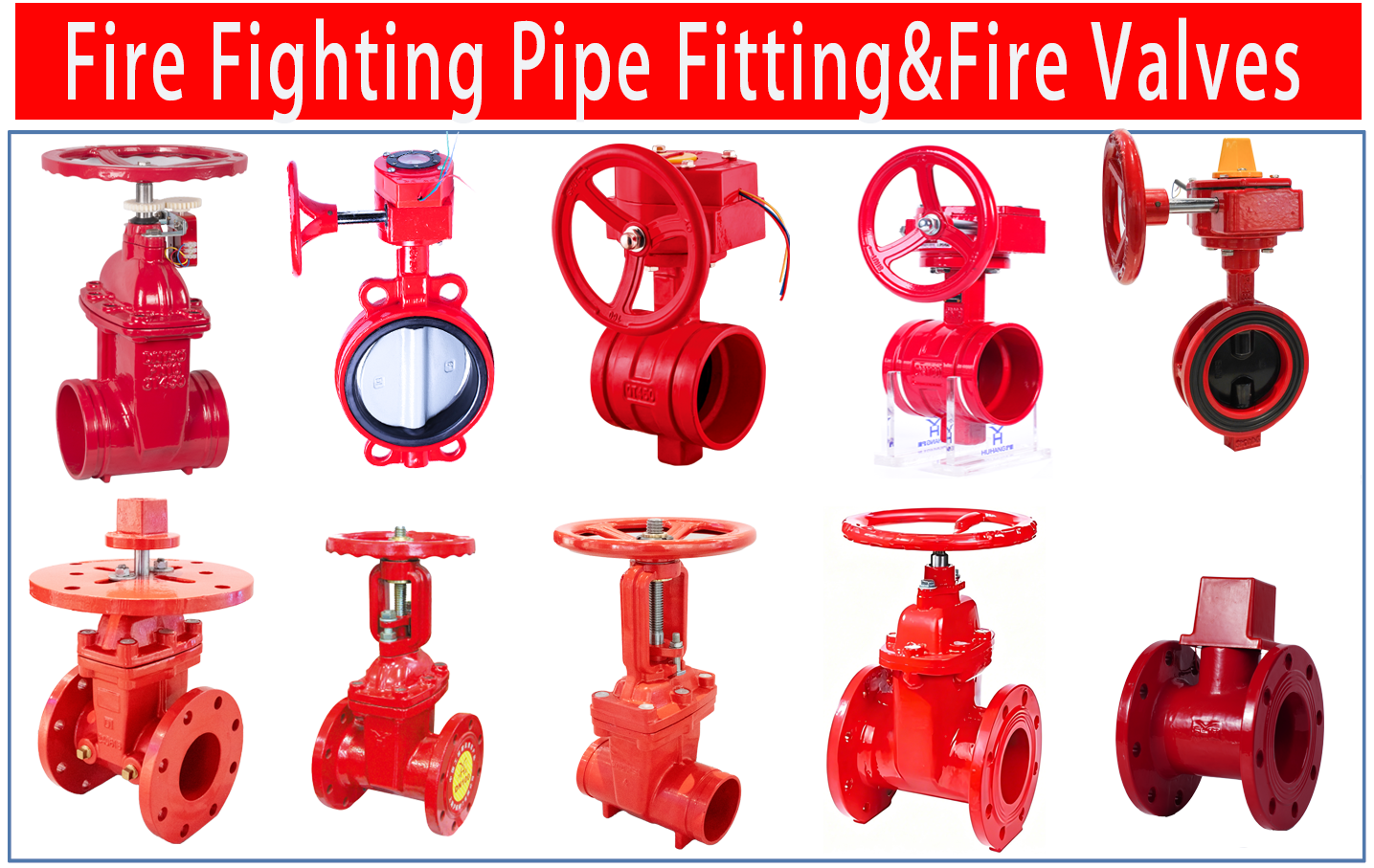

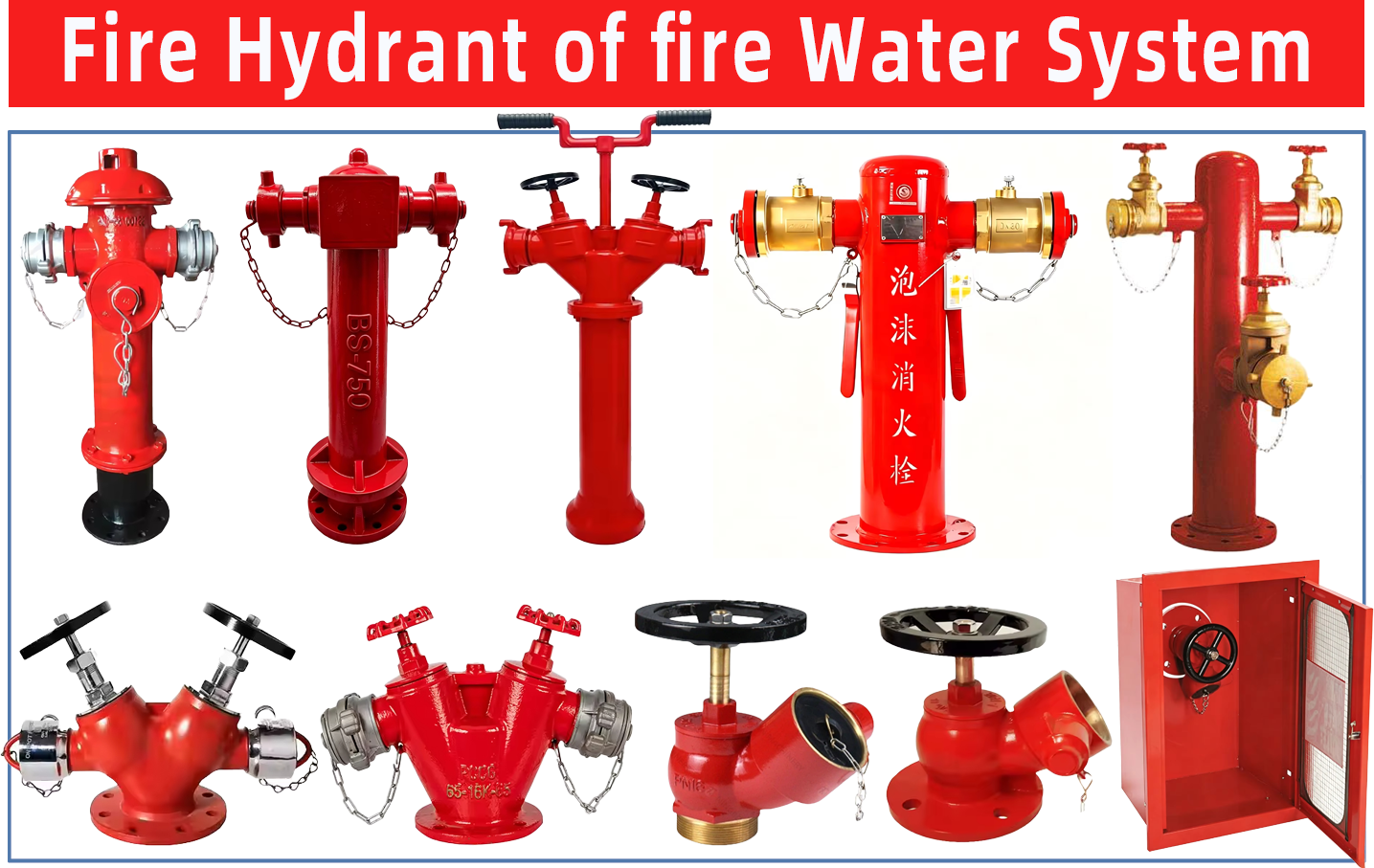

Beyond our signature signal gate valves, we offer a comprehensive matrix of fire protection equipment designed to meet diverse infrastructure demands. Our extensive product line ensures that you can find the exact specifications, sizes, and connection types required for your fire safety systems. By consolidating your procurement with us, you benefit from consistent manufacturing standards, reduced compatibility risks, and simplified logistics. Browse our additional offerings below to discover how we can support your complete fire protection pipeline.
