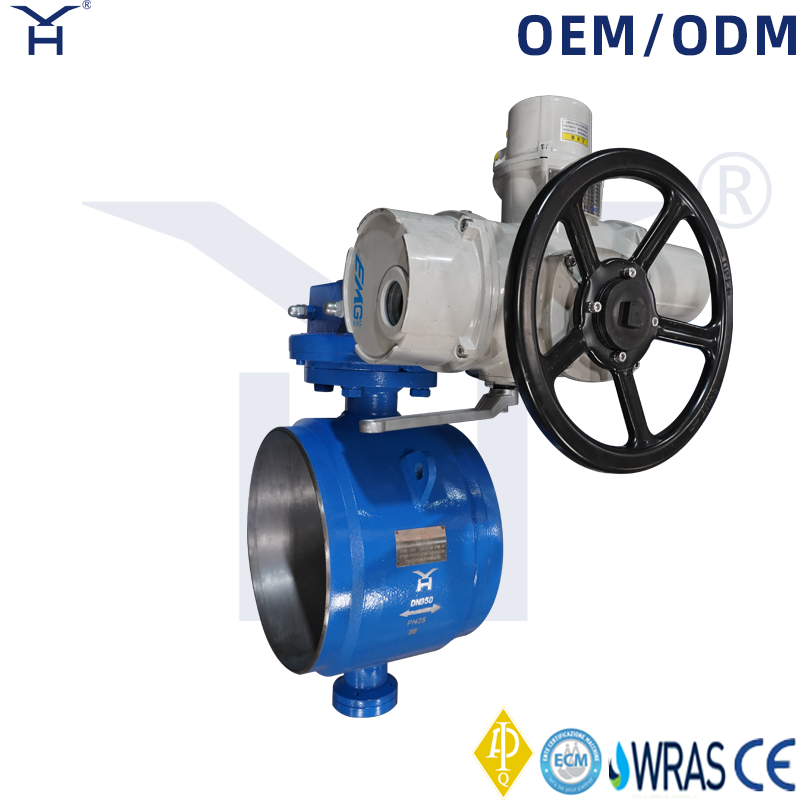

Intelligent Multi-turn Electric Actuator On Off Modulating Valve Electric Operator with Handwheel

Intelligent Multi-turn Electric Actuator On Off Modulating Valve Electric Operator with Handwheel

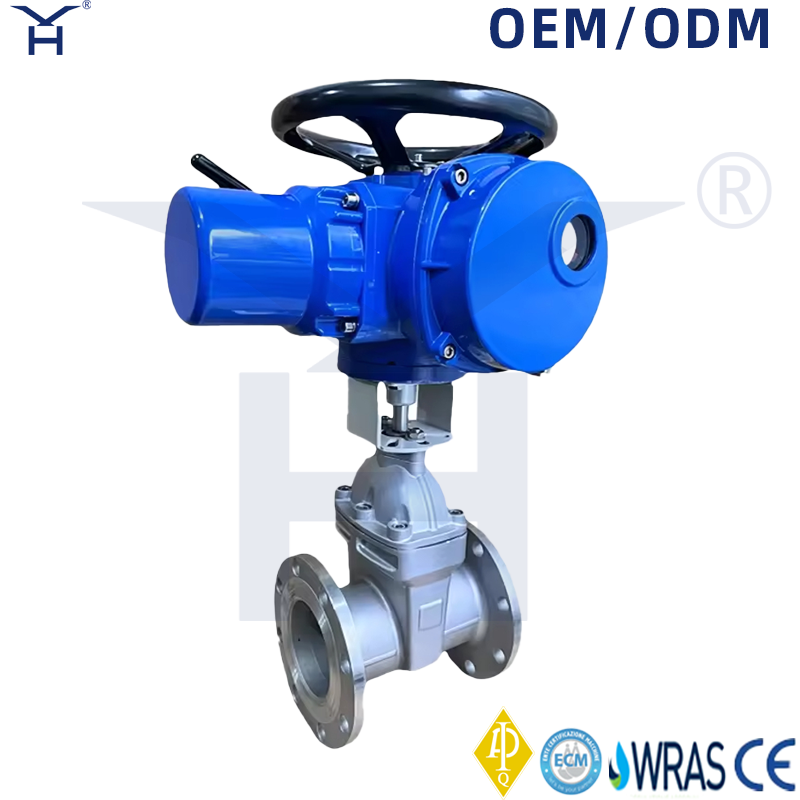

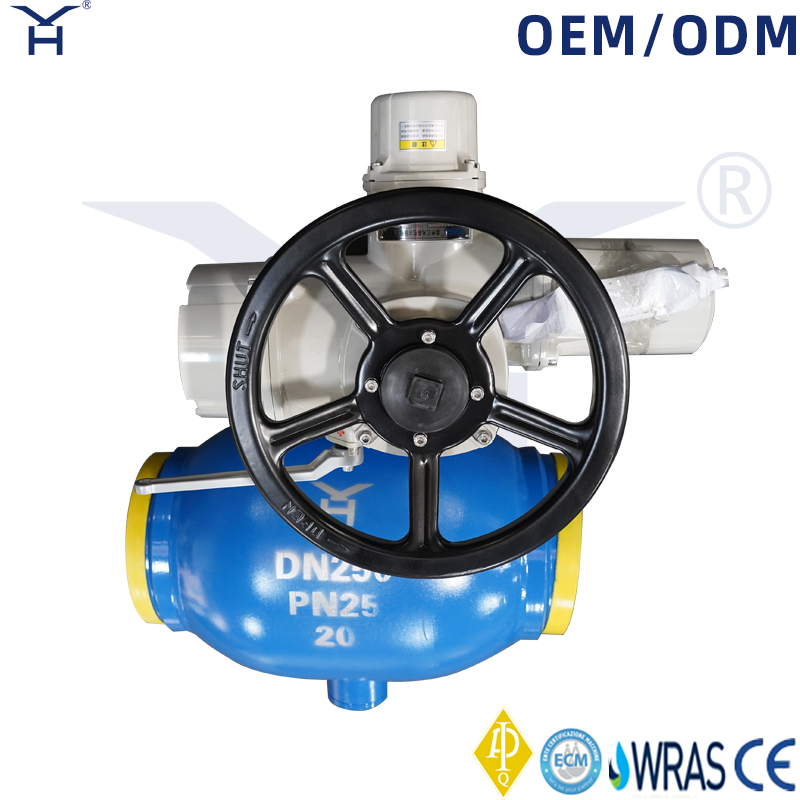

multi‑turn electric actuator is widely matched for multi‑turn valves such as gate valves and full‑welded ball valves. It supports both on‑off and modulating functions. Equipped with large emergency handwheel for manual operation under power‑off condition. Multiple safety protections including torque overload, stroke limit and motor thermal protection are built inside. Standard IP67 enclosure fits outdoor working conditions. It can connect with DCS / PLC control system via 4‑20mA analog signal or Modbus‑RTU communication, widely used for heating, water treatment, petrochemical and power‑industry automatic pipelines.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Item	Standard Specification	Optional Option
Product Model	Z‑Series Multi‑turn electric actuator	Explosion‑proof version available
Rated Output Torque	50‑10000 N·m	Custom torque range
Output Rotating Speed	12 r/min,18 r/min,24 r/min	Custom speed
Max Total Turns	60 turns (standard)	Custom total turns
Working Power Supply	3‑phase AC380V 50Hz	Single‑phase AC220V, DC24V
Control Mode	On‑Off local / remote control	Modulating 4‑20mA analog signal
Feedback Signal	Limit & fault relay contact output	4‑20mA position feedback, Modbus‑RTU
Protection Class	IP67	IP68
Ambient Temperature	-20℃ ~ +60℃	Wide temperature‑40℃~+80℃
Relative Humidity	≤95% RH, non‑condensing	—
Duty Cycle	S2 short‑time duty, 10 min rating	—
Manual Operation	Large handwheel for emergency manual override	—
Connection Standard	ISO 5210	Custom flange
Built‑in Protection	Torque protection, dual mechanical & electrical limit, motor over‑heat protection	Signal loss protection
Applicable Valve	Gate valve, globe valve, welded ball valve & other multi‑turn valves	—

Main Features

Intelligent non‑intrusive design, local and remote switch available
Dual torque & stroke protection, prevent valve damage from overload
Large manual handwheel for manual operation when power failure
IP67 high protection grade, suitable for outdoor field installation
Support 4‑20mA analog regulating signal, connectable with PLC & DCS system
Compact integrated structure, reliable long‑term running performance

Precision Valve Manufacturing

Professional Valve Manufacturer | Integrated Manufacturing

Raw Material

We select high-quality raw materials according to product specifications and international standards. All incoming materials are carefully inspected to ensure chemical composition, mechanical properties and traceability.

Forging & Casting

Advanced forging and casting processes are used to produce strong and reliable valve bodies and components. Strict process control ensures uniform structure, dimensional accuracy and excellent mechanical performance.

CNC Machining

Our CNC machining equipment provides precise and consistent processing of valve components. Critical dimensions, threads and sealing surfaces are strictly controlled to ensure accurate assembly and reliable sealing performance.

Shot Blasting & Coating

Valve surfaces are professionally shot blasted to remove rust, scale and impurities. Protective coatings are then applied according to customer requirements, providing excellent corrosion resistance and a durable surface finish.

Pressure Testing

Every valve undergoes strict pressure testing before shipment. Body and seat tests are performed according to applicable standards and customer specifications to verify pressure resistance and sealing reliability.

Quality Inspection

Our quality control team conducts comprehensive inspections throughout the production process. Finished valves are checked for dimensions, appearance, materials, pressure performance and overall quality before final approval and shipment.

What is an electric gear actuator used for?

An electric gear actuator is used to remotely operate valves by converting electrical power into mechanical torque. It is commonly used for opening, closing, or positioning industrial and water-system valves.

Which types of valves can be equipped with an electric actuator?

Electric actuators can be used with various quarter-turn and multi-turn valves, including butterfly valves, ball valves, gate valves, globe valves, and other compatible valve types.

What power supply options are available?

Common power supply options include 24V, 110V, 220V, and 380V AC/DC configurations, depending on the actuator model and project requirements.

Is manual operation available during a power failure?

Many electric actuators are equipped with a manual override mechanism, allowing the valve to be operated manually when electrical power is unavailable.
