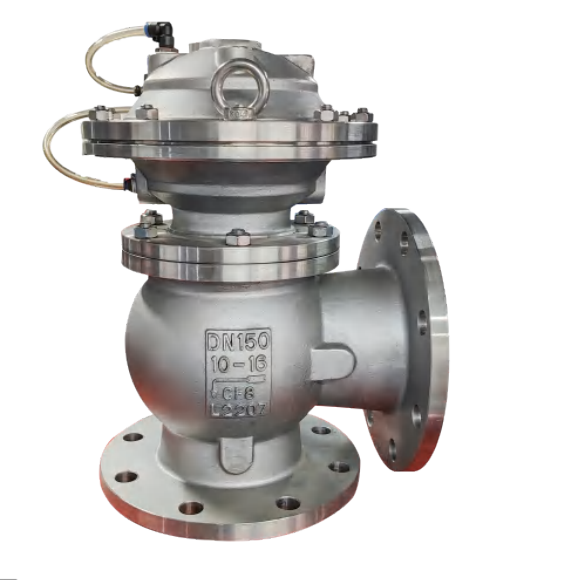

Angle Type Pneumatic Sludge Valve for Chemical Sewage 304/316

Usage Scenarios & Working Principle

The Angle Type Pneumatic Sludge Valve (304/316 Stainless Steel) is engineered for highly efficient and reliable discharge of sludge and contaminants in industrial and chemical sewage treatment systems. It is typically installed in rows on the outer side wall at the bottom of sedimentation tanks. Its primary function is to swiftly discharge settled sludge, wastewater, and other solid contaminants to prevent accumulation. Efficient sludge removal prevents anaerobic digestion at the tank bottom, which could otherwise release harmful gases, degrade water quality, and damage the facility's infrastructure.

In terms of its working principle, the valve uses a highly durable nylon-reinforced rubber diaphragm to divide the valve body into two distinct chambers. When connected to a hydraulic or pneumatic power source, the valve is precisely controlled by an electric or manual 2/4-way directional control valve to achieve a quick blowdown process. Unlike traditional designs, this pneumatic quick-opening blowdown valve adopts a diaphragm instead of a piston. This critical design choice eliminates motion friction, making it exceptionally suitable for abrasive and particle-containing media such as chemical sludge, thereby greatly extending the overall service life of the valve and reducing maintenance frequency.

Core Features & Procurement Benefits

Designed to meet the rigorous demands of chemical processing facilities and municipal wastewater treatment plants, this sludge valve offers several distinct advantages that translate into long-term operational stability and reduced lifecycle costs:

• Flexible Opening and Closing: It adopts a robust double-chamber diaphragm actuator, ensuring rapid response times and flexible operation. This is crucial for precise control over the sludge discharge process during peak operational hours.
• Zero Mechanical Wear & Leak-Proof: Because it operates without a piston, no motion wear occurs. It requires no lubrication and causes no mechanical friction. Furthermore, it is not sensitive to sediment accumulation and will not leak water due to impurities, ensuring a clean and safe operating environment.
• Low Driving Pressure & Easy Centralized Control: The valve features a low driving medium pressure requirement, which enhances energy efficiency. It can be easily integrated into automated systems and centrally controlled by a manual directional valve or an electromagnetic 4-way directional valve, streamlining facility operations.
• Exceptional Durability: Constructed with premium materials (including ductile iron, cast steel, or 304/316 stainless steel options), the valve offers excellent corrosion resistance and structural integrity, ensuring a long service life even in harsh chemical sewage applications.

Technical Specifications

The following tables detail the technical parameters, component materials, and overall dimensions to assist in accurate project selection and system integration. The use of high-grade stainless steel and NBR/EPDM diaphragms ensures reliable performance under varying pressures (PN 1.0MPa to 2.5MPa) and temperatures.

Table 1: Technical Parameters Table

Table 2: Main Component Materials

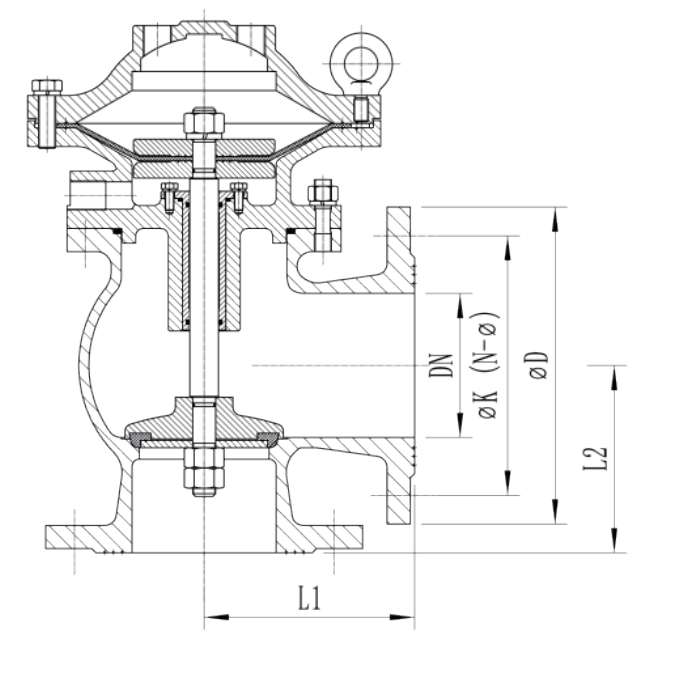

Table 3: Overall Dimensions (mm)
