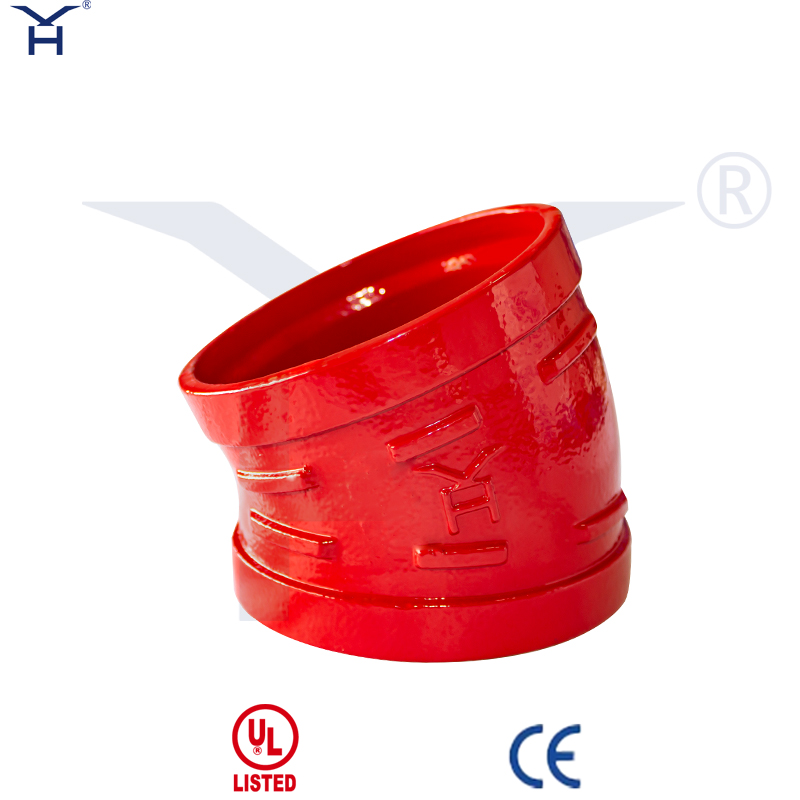

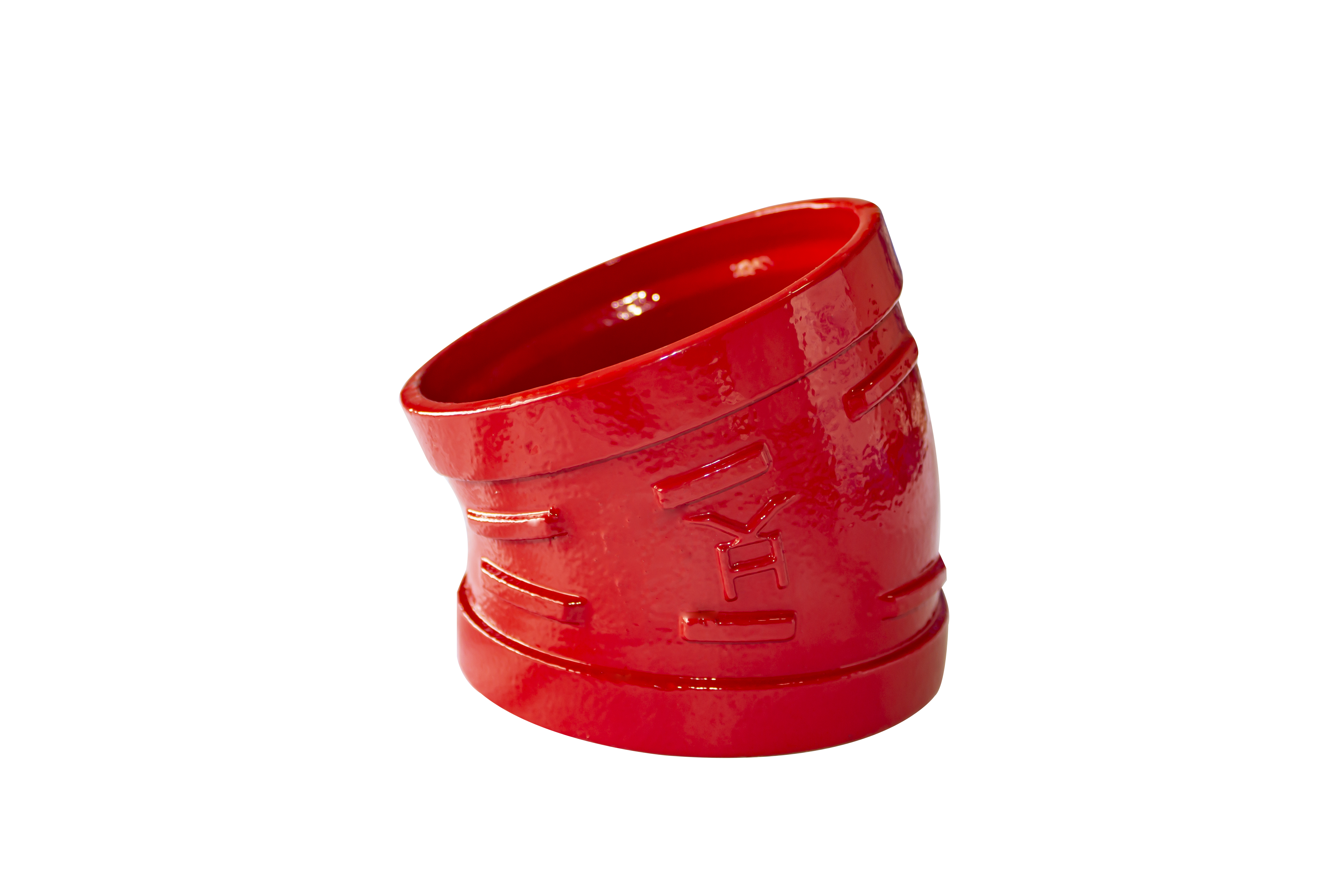

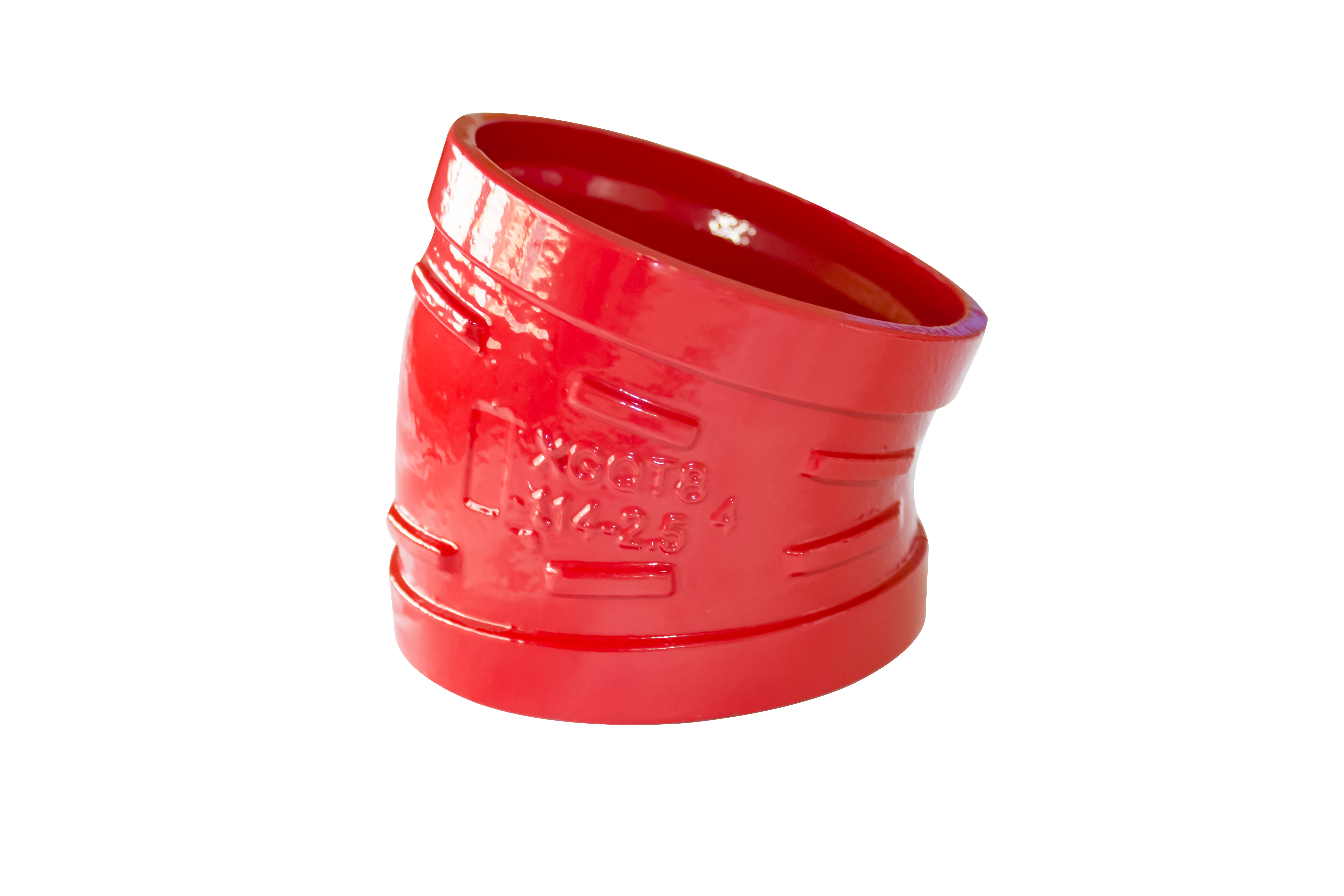

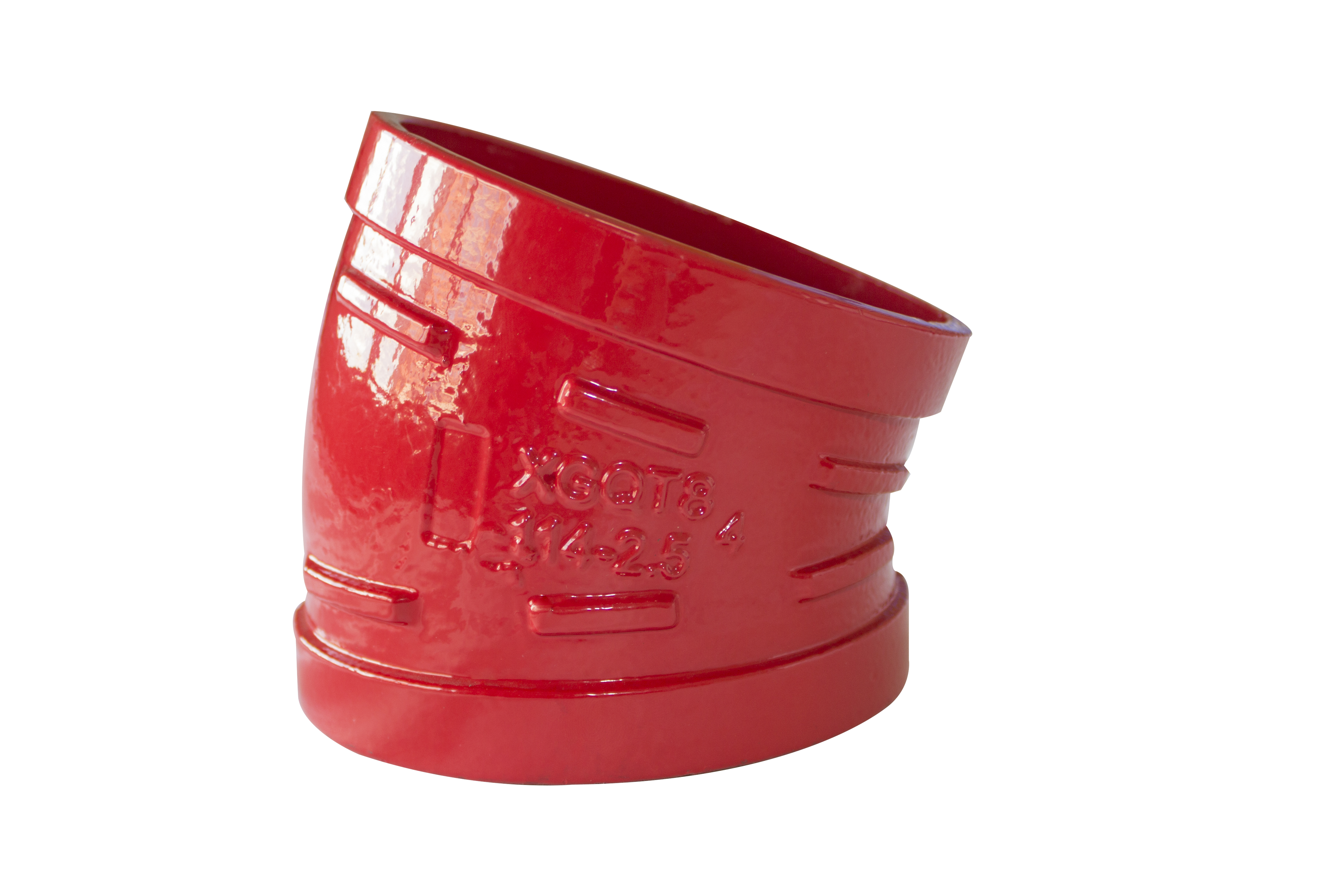

Ductile Iron Grooved 22.5° Elbow, UL Listed Fire Protection Grooved Pipe Elbow for Fire Sprinkler System

Ductile Iron Grooved 22.5° Elbow, UL Listed Fire Protection Grooved Pipe Elbow for Fire Sprinkler System

grooved 22.5 degree elbow, fire grooved elbow, ductile iron grooved elbow, grooved pipe fitting, fire sprinkler elbow, UL listed grooved elbow, fire pipeline angled joint

Quantity:
Availability:





Inquire Add to Basket

Product Description

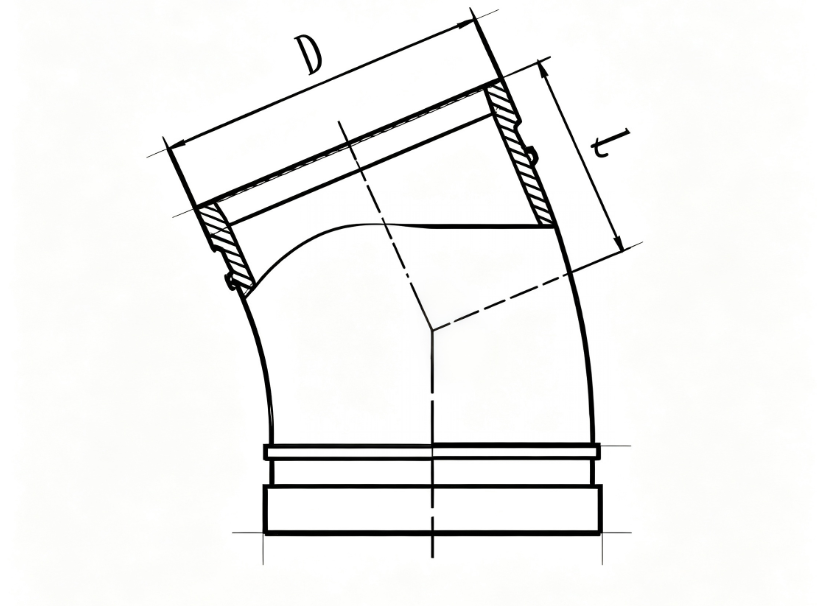

Rated diameter mm	Pipe outside measurerment mm	Rated Pressure MPa	L Measurement mm
80	88.9	2.5	57
100	108		73
100	114.3		73
125	133		73
125	139.7		73
150	159		79
150	165		79
150	168.3		79
200	219.1		98
250	273		121

Item	Parameter
Model	Grooved 22.5° Elbow
Body Material	Ductile Iron
Surface Treatment	Red Epoxy Powder Coating
Connection Type	Grooved End Both Sides
Angle	22.5 Degree
Working Pressure	2.5MPa
Applicable Pipe	Grooved steel pipe
Size Range	DN50‑DN250
Certification	UL Listed, CE
Application	Slight direction change for fire grooved pipelines

Main Features

Ductile iron casting body with red epoxy powder coating, anti‑corrosion for fire‑fighting piping
22.5‑degree angle design, used for slight direction change of grooved steel pipe
Both‑end grooved ends, connect with grooved coupling directly
UL & CE certified, comply with international fire‑safety standards
Smooth inner bore, low flow resistance for water delivery
Quick groove‑type installation, no welding or threading required

Product Advantages

Precision cast ductile iron body, high mechanical strength, withstand pipeline water pressure
Red epoxy powder coating, excellent anti‑rust performance for indoor fire‑protection environment
Smooth inner wall reduces water flow loss, improve pipeline conveying efficiency
Grooved ends for fast assembly, site hot‑work is avoided, improve construction safety
UL listed certification, meet acceptance requirements of overseas fire‑protection projects
Compact structure, cooperate with grooved couplings to realize slight pipeline turning

Application Scenarios

‑ Fire sprinkler grooved steel pipe straight connection
‑ Building fire‑fighting water supply grooved piping system
‑ Shopping mall, hotel, hospital fire pipe network assembly
‑ Factory, warehouse fire‑protection piping project
‑ Overseas fire‑safety engineering with UL certification requirement
