Ductile Iron Grooved Equal Tee, UL Listed Fire Protection Grooved Tee for Fire Sprinkler Pipeline System

Ductile Iron Grooved Equal Tee, UL Listed Fire Protection Grooved Tee for Fire Sprinkler Pipeline System

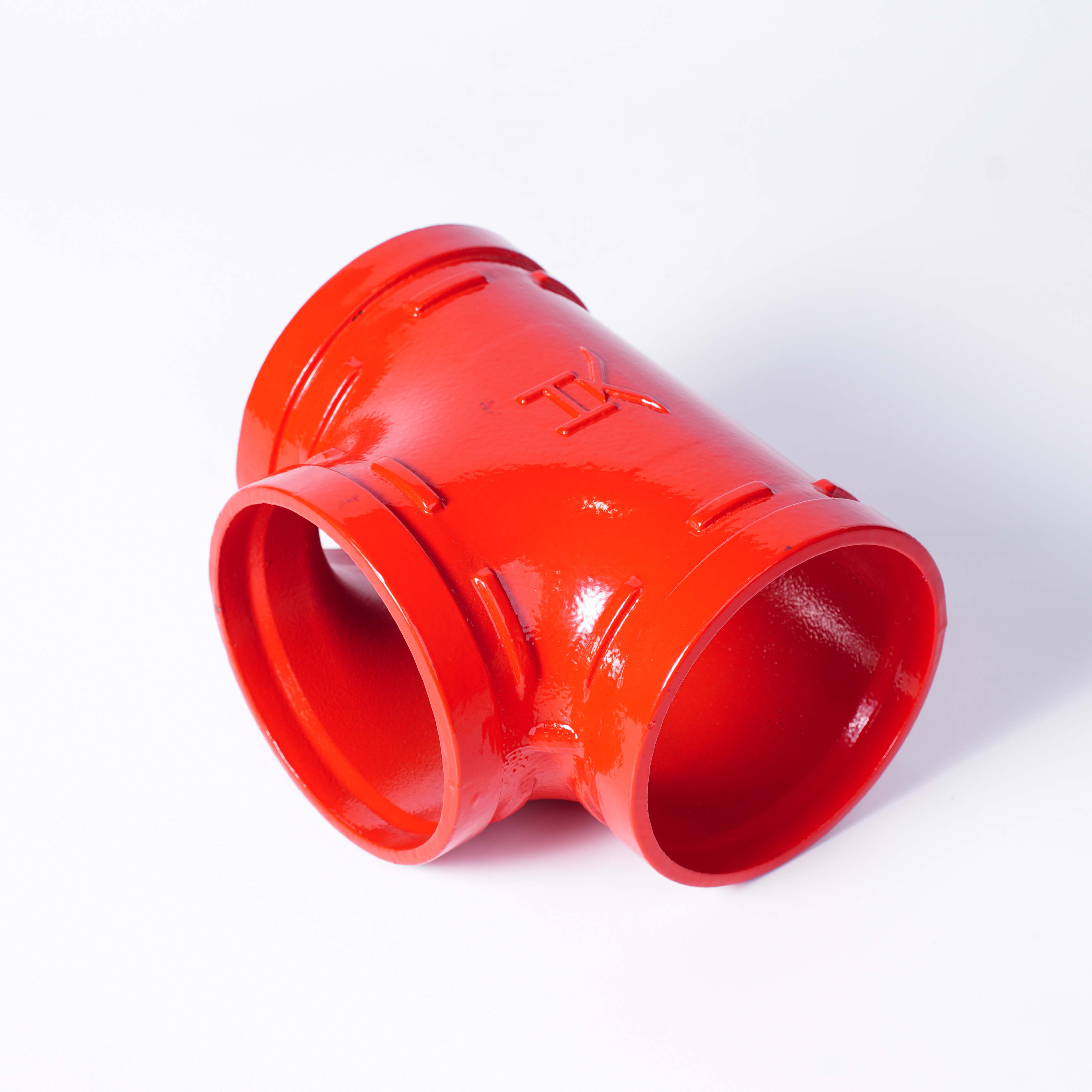

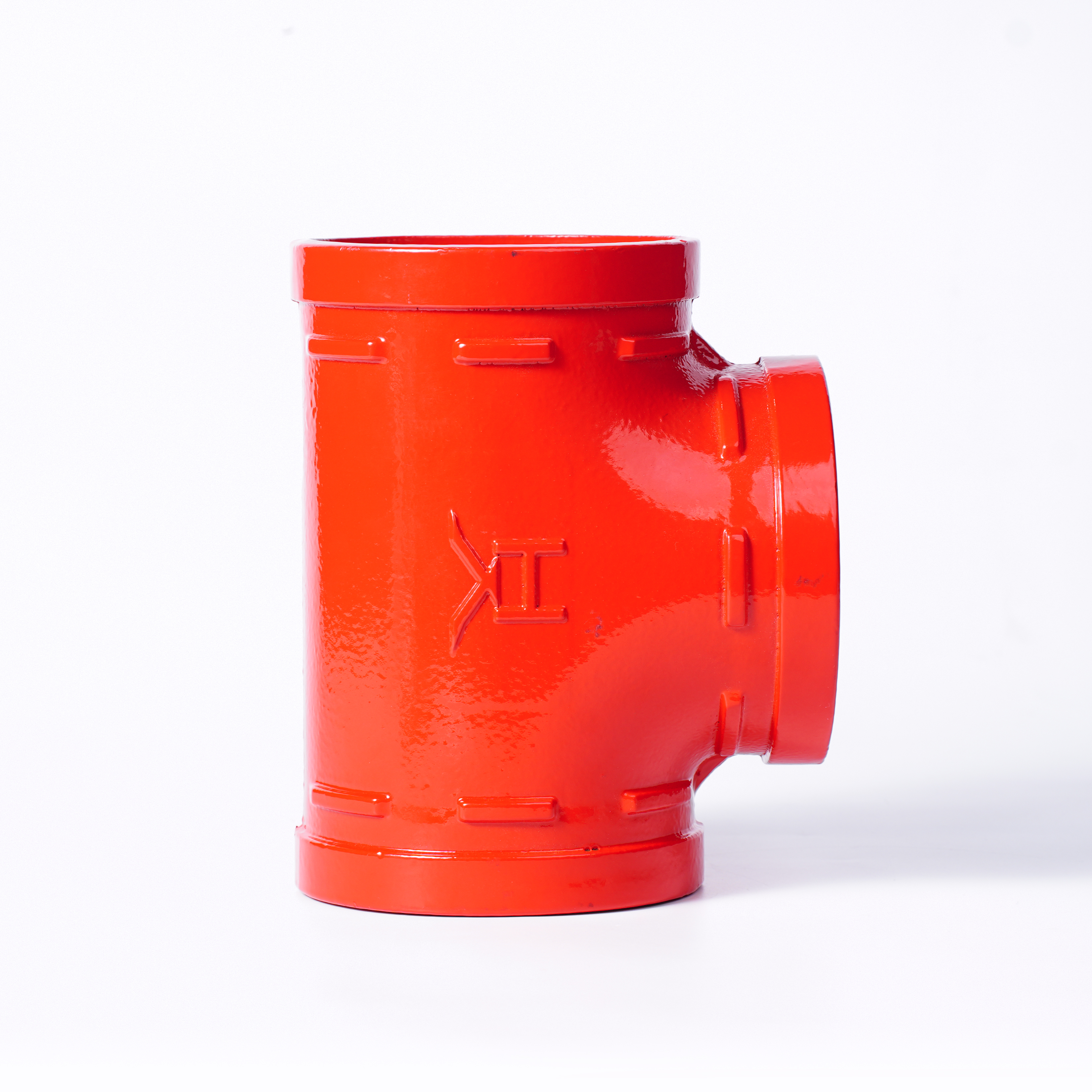

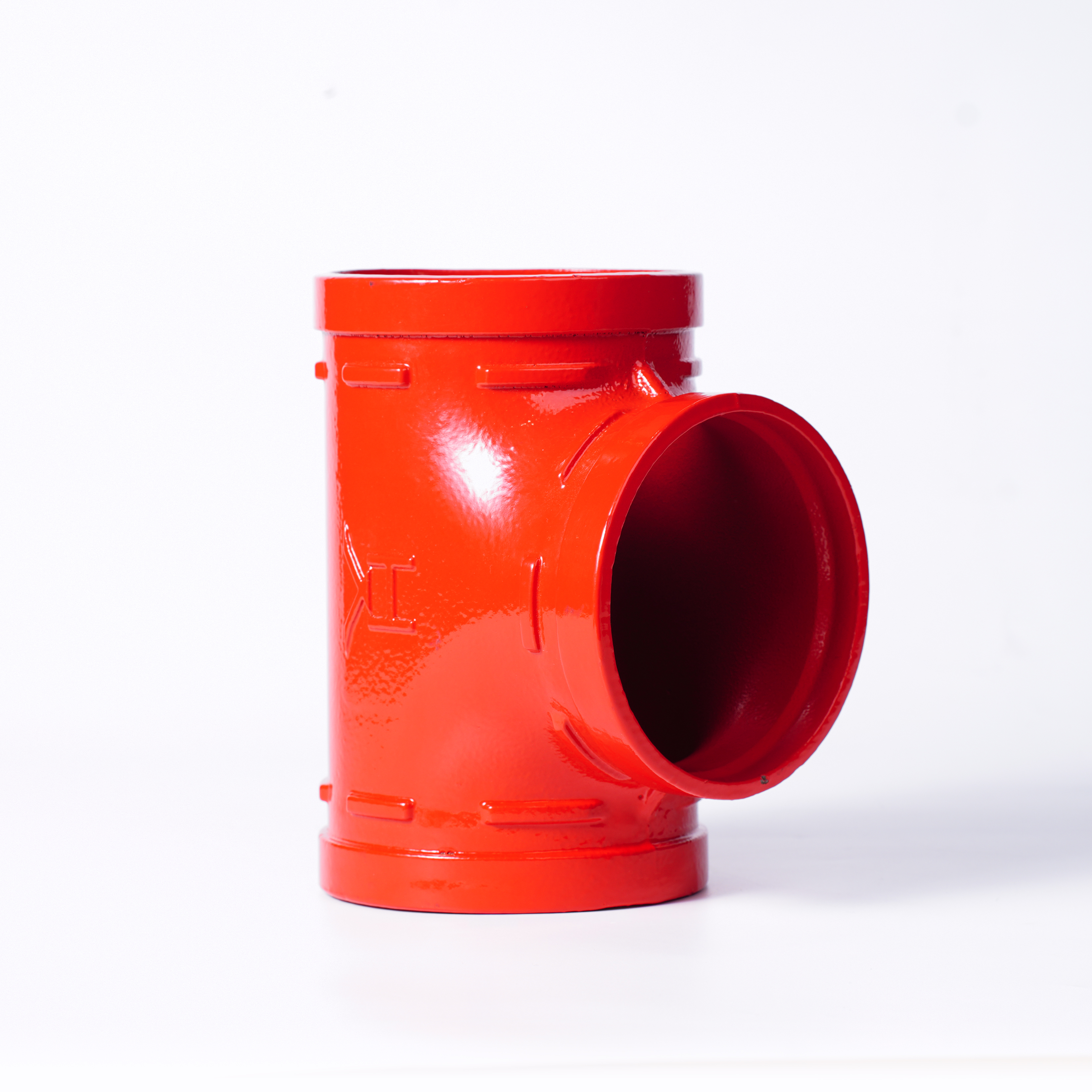

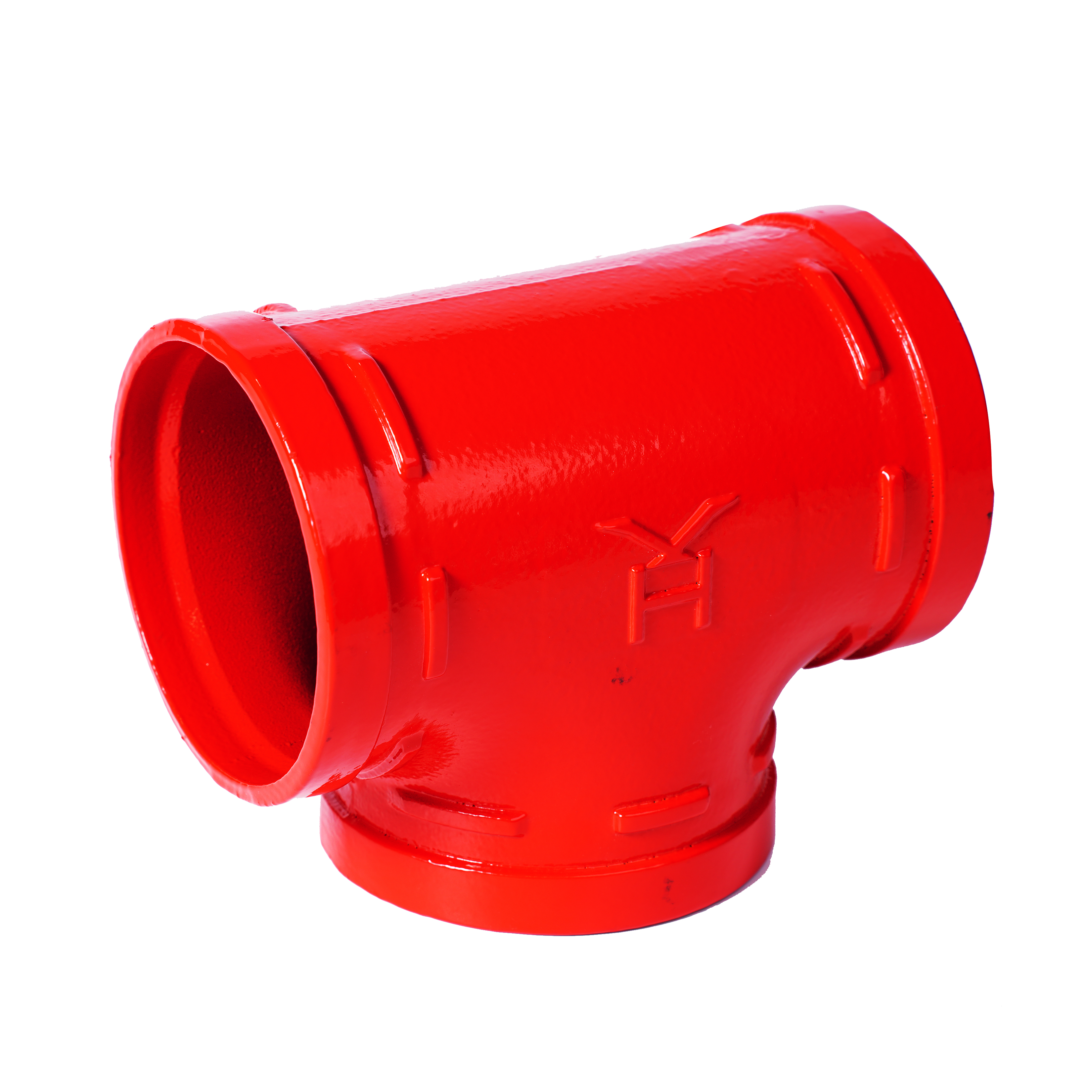

This UL listed grooved equal tee is a dedicated grooved fitting for fire‑protection piping. Made of high‑strength ductile iron with red epoxy anti‑corrosion coating. Equal‑diameter three‑way structure realizes pipeline shunting and confluence.

Quantity:
Availability:





Inquire Add to Basket

Product Description

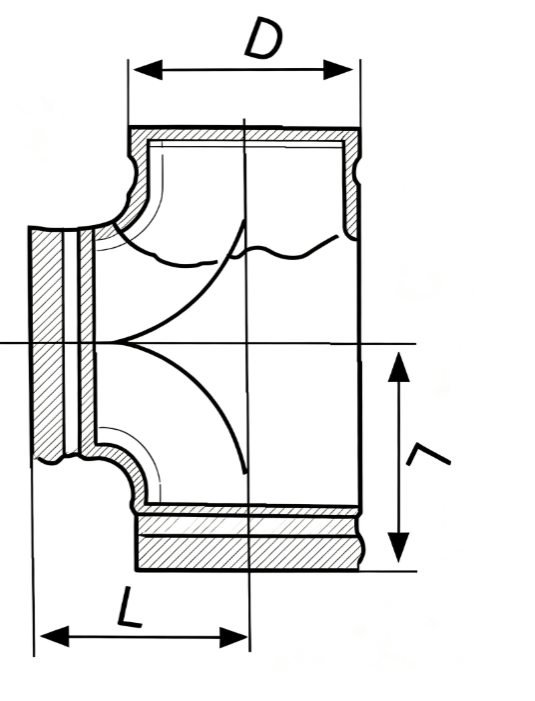

RatedDiameter mm	D×d mm	RatedPressue MPa	L mm	RatedDiameter mm	D×d mm	Rated Pressure MPa	L mm
40×32	48×42	2.5	60	150×125	165×133	2.5	142
50×32	60×42		84	150×125	165×140
50×40	60×48		84	150×50	168×60
65×50	76×60		90	150×65	168×76
80×50	89×60		90	150×80	168×89
80×65	89×76		76.5	150×100	168×108
100×50	108×60		90	150×100	168×114
100×65	108×76			150×125	168×133
100×80	108×89			150×125	168×140
100×50	114×60			200×65	219×76		179
100×65	114×76			200×80	219×89
100×80	114×89			200×100	219×108
125×65	133×76		122	200×100	219×114
125×80	133×89			200×125	219×133
125×100	133×108			200×125	219×140
125×100	133×114			200×150	219×159
125×50	140×60			200×150	219×165
125×65	140×76			200×150	219×168
125×80	140×89			250×80	273×89
125×100	140×108			250×100	273×114
125×100	140×114			250×125	273×140
150×50	159×60		142	250×150	273×159
150×65	159×76			250×150	273×165
150×80	159×89			250×150	273×168
150×100	159×108			250×200	273×219
150×100	159×114			300×150	325×159		215
150×125	159×133			300×150	325×165
150×125	159×140			300×150	325×168
150×50	165×60			300×200	325×219
150×65	165×76			300×250	325×273		245
150×80	165×89			350×200	377×219
150×100	165×108			350×250	377×273
150×100	165×114			350×300	377×325

Main Features

Ductile iron cast body with red epoxy powder coating, anti‑corrosion for fire‑fighting piping system
Equal‑diameter three‑way structure, three grooved ends for pipeline shunting and confluence
Triple grooved ends, directly connect with grooved couplings
Smooth inner bore, low water flow resistance for stable fluid delivery
UL & CE certified, comply with international fire‑safety standards
Grooved quick‑assembly design, no welding or threading required

Product Advantages

High‑strength ductile iron casting, withstand pipeline water pressure and water hammer impact
Red epoxy powder coating, excellent rust‑proof performance for indoor fire‑protection environment
Smooth inner cavity reduces flow turbulence, ensures balanced three‑way water distribution
Grooved connection for fast on‑site installation, no hot‑work, improves construction safety
UL Listed certification, meets acceptance requirements of overseas fire‑protection projects
Complete size range, widely used for equal‑diameter three‑way branch of fire grooved steel pipelines

Application Scenarios

‑ Fire sprinkler grooved steel pipe straight connection
‑ Building fire‑fighting water supply grooved piping system
‑ Shopping mall, hotel, hospital fire pipe network assembly
‑ Factory, warehouse fire‑protection piping project
‑ Overseas fire‑safety engineering with UL certification requirement

Precision Valve Manufacturing

Professional Valve Manufacturer | Integrated Manufacturing

Raw Material Inspection

We select high-quality raw materials according to product specifications and international standards. All incoming materials are carefully inspected to ensure chemical composition, mechanical properties and traceability.

Forging & Casting

Advanced forging and casting processes are used to produce strong and reliable fire hydrant valve bodies and components. Strict process control ensures uniform structure, dimensional accuracy and excellent mechanical performance.

CNC Machining

Our CNC machining equipment provides precise and consistent processing of fire hydrant valve components. Critical dimensions, threads and sealing surfaces are strictly controlled to ensure accurate assembly and reliable sealing performance.

Surface Treatment

fire hydrant valve surfaces are professionally shot blasted to remove rust, scale and impurities. by epoxy powder coating, red fire‑retardant painting or hot‑dip galvanizing for long‑term anti‑corrosion performance.

Pressure Testing

Every fire hydrant valve undergoes strict pressure testing before shipment. Body and seat tests are performed according to applicable standards and customer specifications to verify pressure resistance and sealing reliability.

Quality Inspection

Our quality control team conducts comprehensive inspections throughout the production process. Finished valves are checked for dimensions, appearance, materials, pressure performance and overall quality before final approval and shipment.

What is grooved 90° elbow used for?

To achieve right‑angle turning for fire grooved steel pipelines.

Does it need welding during installation?

No, connect with grooved couplings after steel pipe grooving.

What certifications does this reducer own?

UL Listed and CE certification for fire‑protection application.
