Product Description
|

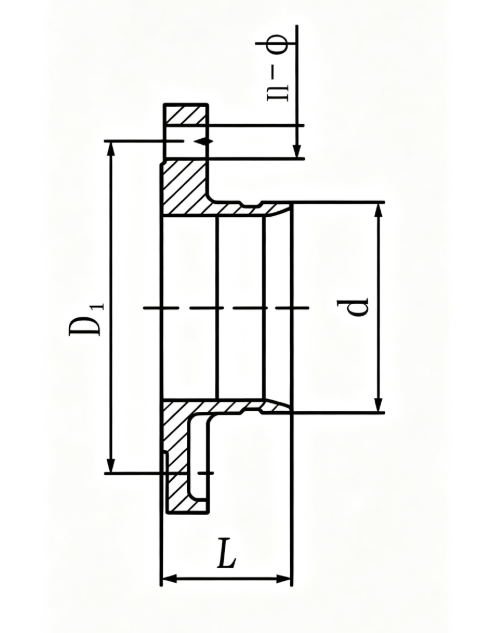

| MPa | Measurement(mm) | ||
Do | L | n-φ | |||
50 | 60.3 | 125 | 65 | 4-φ18 | |
65 | 76.1 | 145 | 55 | 4-φ18 | |
80 | 88.9 | 160 | 55 | 8-φ18 | |
100 | 108 | 180 | 65 | 8-φ18 | |
100 | 114 | 180 | 55 | 8-φ18 | |
125 | 133 | 1.6 | 210 | 70 | 8-φ18 |
125 | 139.7 | 210 | 70 | 8-φ18 | |
150 | 159 | 240 | 70 | 8-φ22 | |
150 | 165 | 240 | 52 | 8-φ22 | |
200 | 219 | 295 | 78 | 12-φ22 | |
250 | 273 | 355 | 76 | 12-φ25 | |
300 | 329 | 410 | 90 | 12-φ25 | |
350 | 377 | 470 | 100 | 16-φ25 | |
Item | Parameter |
|---|---|
Model | Grooved Flange Adapter |
Body Material | Ductile Iron |
Surface Treatment | Red Epoxy Powder Coating |
Connection Type | Grooved end + Flange bolt‑hole end |
Working Pressure | 2.5MPa |
Applicable Pipe | Grooved steel pipe |
Size Range | DN50‑DN350 |
Certification | UL Listed, CE |
Application | Transition between grooved pipe and flanged fire equipment |

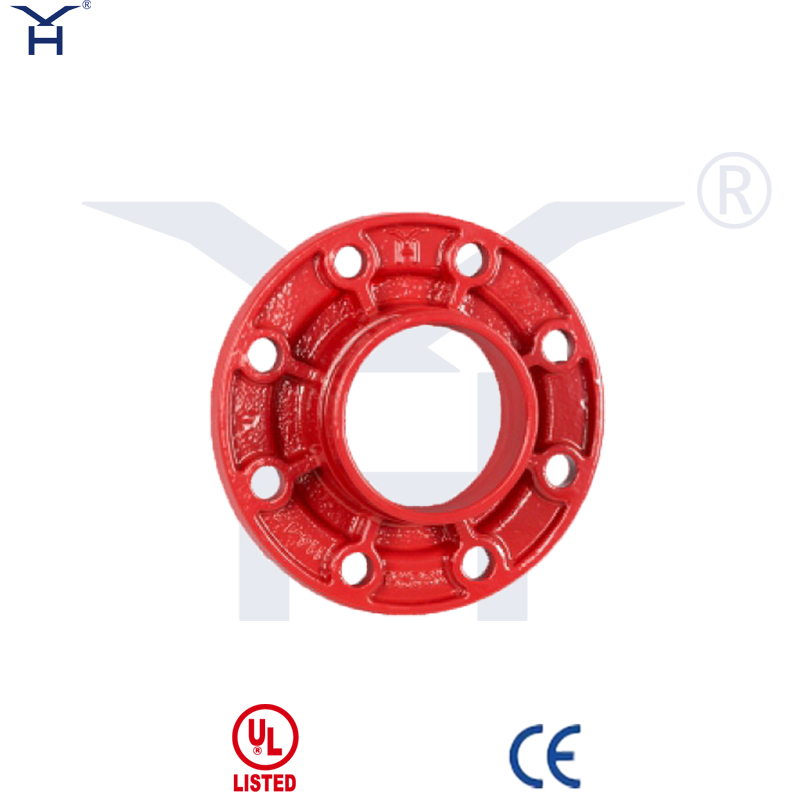

Ductile iron cast body with red epoxy powder coating, anti‑corrosion for fire‑fighting piping system
One grooved end, one bolt‑hole flange end, realizes conversion between grooved pipe and flanged equipment
Standard flange bolt holes for connecting valves, pumps and flanged accessories
Smooth inner bore, low water flow resistance
UL, FM & CE certified, comply with international fire‑safety standards
Grooved quick‑assembly design, no welding required
High‑strength ductile iron casting, withstand pipeline water pressure and water hammer impact
Red epoxy powder coating, excellent rust‑proof performance for indoor fire‑protection environment
Transition fitting connects grooved steel pipe to flanged valves/pumps, simplifies on‑site connection
Grooved side fast installation with coupling, no hot‑work operation, improves construction safety
UL & CEcertification, meets strict acceptance requirements of overseas fire‑protection projects
Complete size range, widely used for grooved‑flange transition in fire sprinkler systems
‑ Fire sprinkler grooved pipeline equal‑diameter four‑way shunting
‑ Building fire‑fighting water supply grooved pipe network
‑ Shopping mall, hotel, hospital fire pipe four‑way branch connection
‑ Factory, warehouse fire‑protection piping engineering
‑ Overseas fire‑safety projects requiring UL certification
Professional Valve Manufacturer | Integrated Manufacturing
We select high-quality raw materials according to product specifications and international standards. All incoming materials are carefully inspected to ensure chemical composition, mechanical properties and traceability.
fire hydrant valve surfaces are professionally shot blasted to remove rust, scale and impurities. by epoxy powder coating, red fire‑retardant painting or hot‑dip galvanizing for long‑term anti‑corrosion performance.
What is grooved flange adapter used for?
To convert grooved pipe connection to flange connection for valves, pumps and fire equipment.
Is welding required during installation?
No, grooved side connects with grooved coupling, flange side bolts onto flanged device.
What certifications are available?
UL Listed and CE certification for fire‑protection application.
