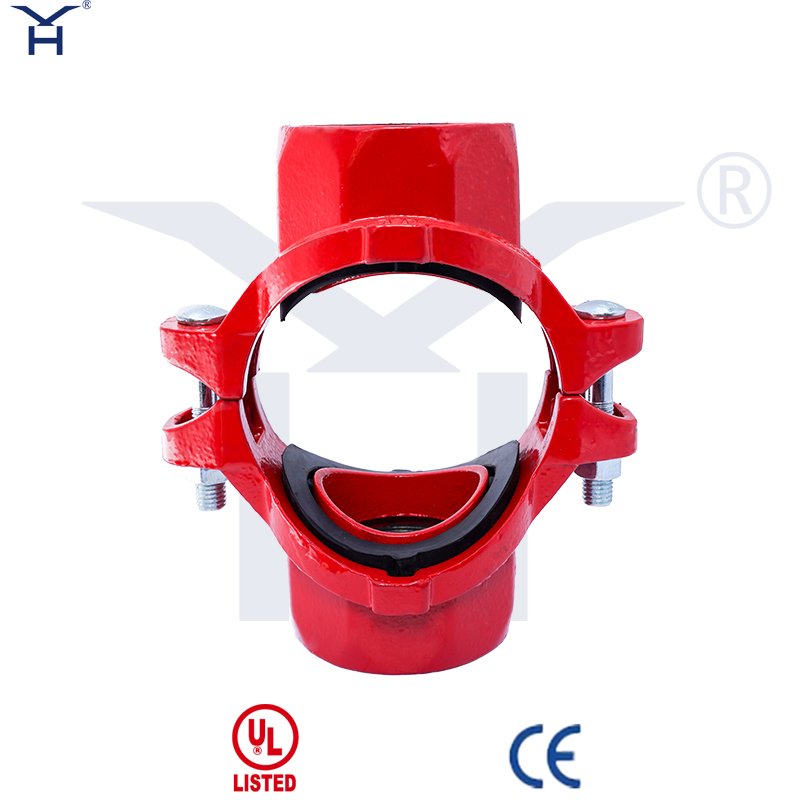

Ductile Iron Grooved Mechanical Cross, UL Listed Fire Protection Mechanical Cross Tee for Grooved Piping System

Ductile Iron Grooved Mechanical Cross, UL Listed Fire Protection Mechanical Cross Tee for Grooved Piping System

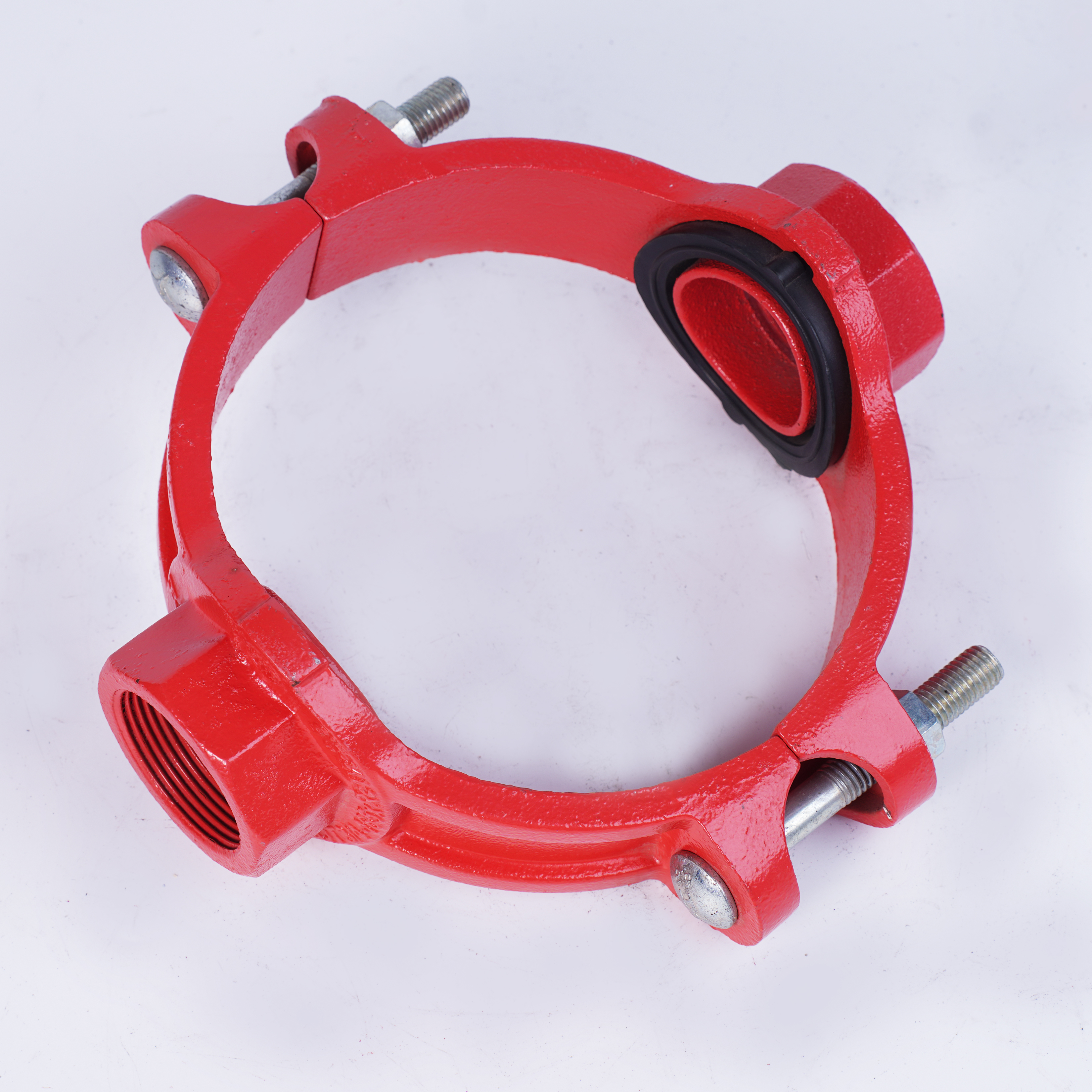

Mechanical Cross is made of two pieces of side outlets and very easy for
use.It can take the place of reducing cross under some conditions,According
to different use,different Mechanical Cross can be supplied,Such
as:mechanical cross(grooved/threaded),reducing mechanical cross(grooved/
threaded),mechanical cross(grooved and threaded),reducing mechanical
cross(grooved and threaded)and etc.The requirement of Mechanical Cross
hole cutting is much higher than others.The different holes on two sides must
be concentric,or leakage will easily occur after installation.Its installation is a
little more difficult than others because there are two holes needing to be cut
on the same profile of main pipe.Therefore,we suggest the class of branch pipe
should be lower 3 than main pipe during installation.

Quantity:
Availability:





Inquire Add to Basket

Product Description

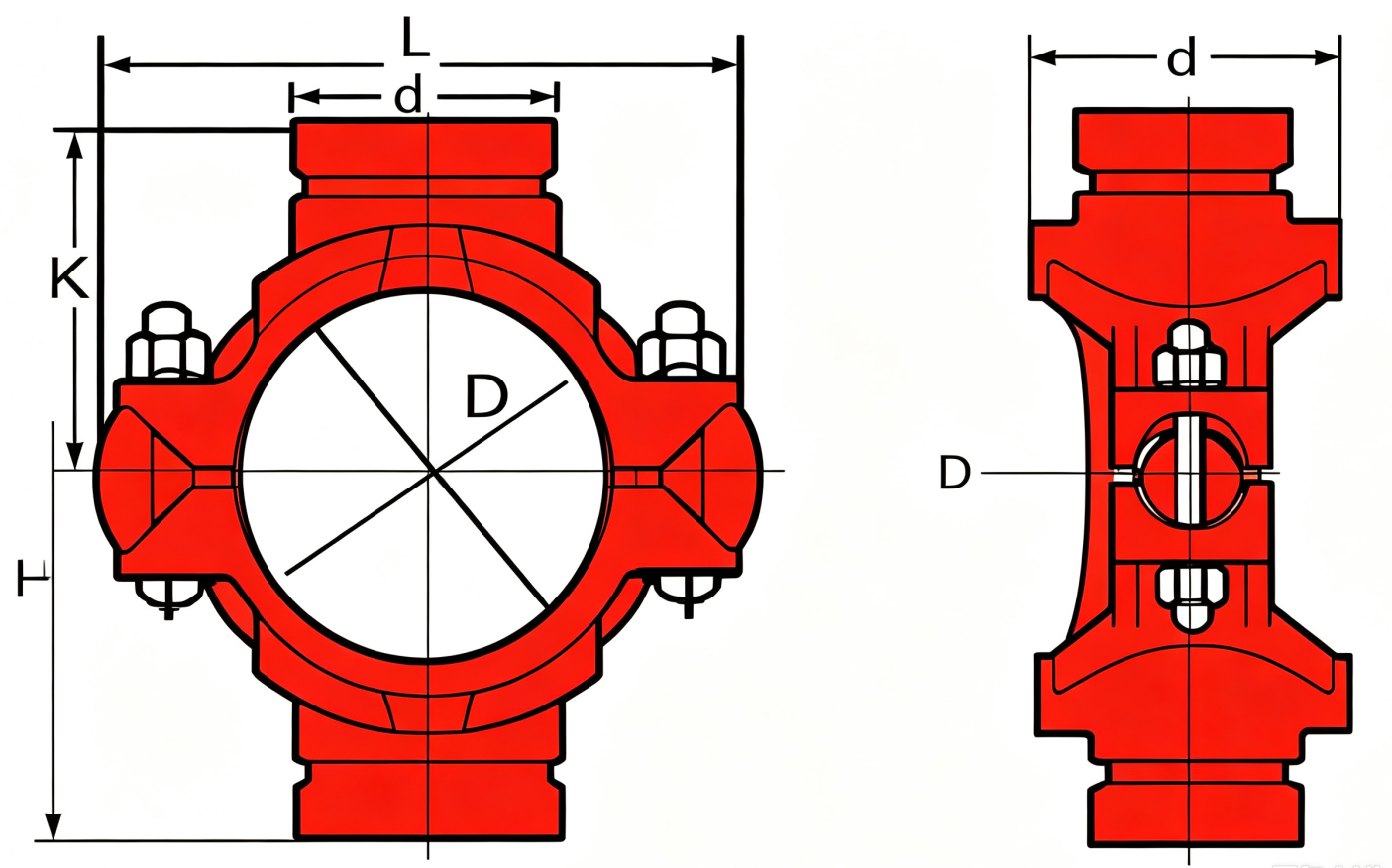

Mechanical Cross Basic Measurement

D
Main pipe diameter (mm)

60.3

76.1

88.9

108
114.3

133
139.7

159
165

219.1

273

d(G)
Branch pipe Max diameter(mm)

33

42.3

48.3

60.3

76.1

88.9

Item	Parameter
Model	Grooved Mechanical Cross
Body Material	Ductile Iron
Surface Treatment	Red Epoxy Powder Coating
Seal Gasket	EPDM Rubber
Outlet Type	Double Female Thread Outlet
Fastener	Galvanized Bolts & Nuts
Working Pressure	1.6MPa
Applicable Pipe	Grooved steel pipe
Size Range	Main pipe DN65‑DN200, branch DN25‑DN80
Certification	UL Listed, CE
Application	Two‑way branch tapping for fire grooved pipelines

Main Features

Ductile iron casting body with red epoxy powder coating, anti‑corrosion for fire‑fighting piping

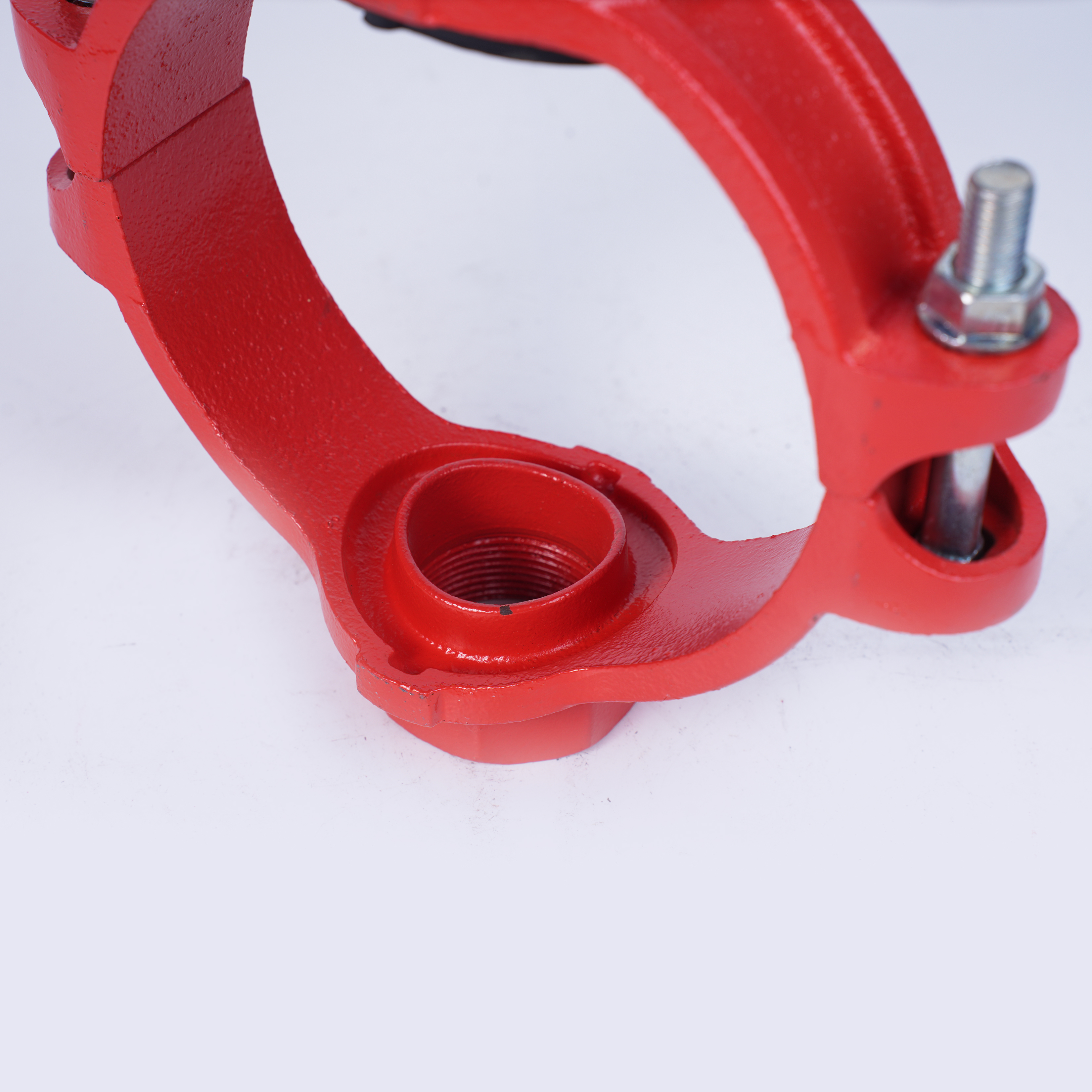

Double female threaded outlets, two‑side branch tapping on main grooved pipe

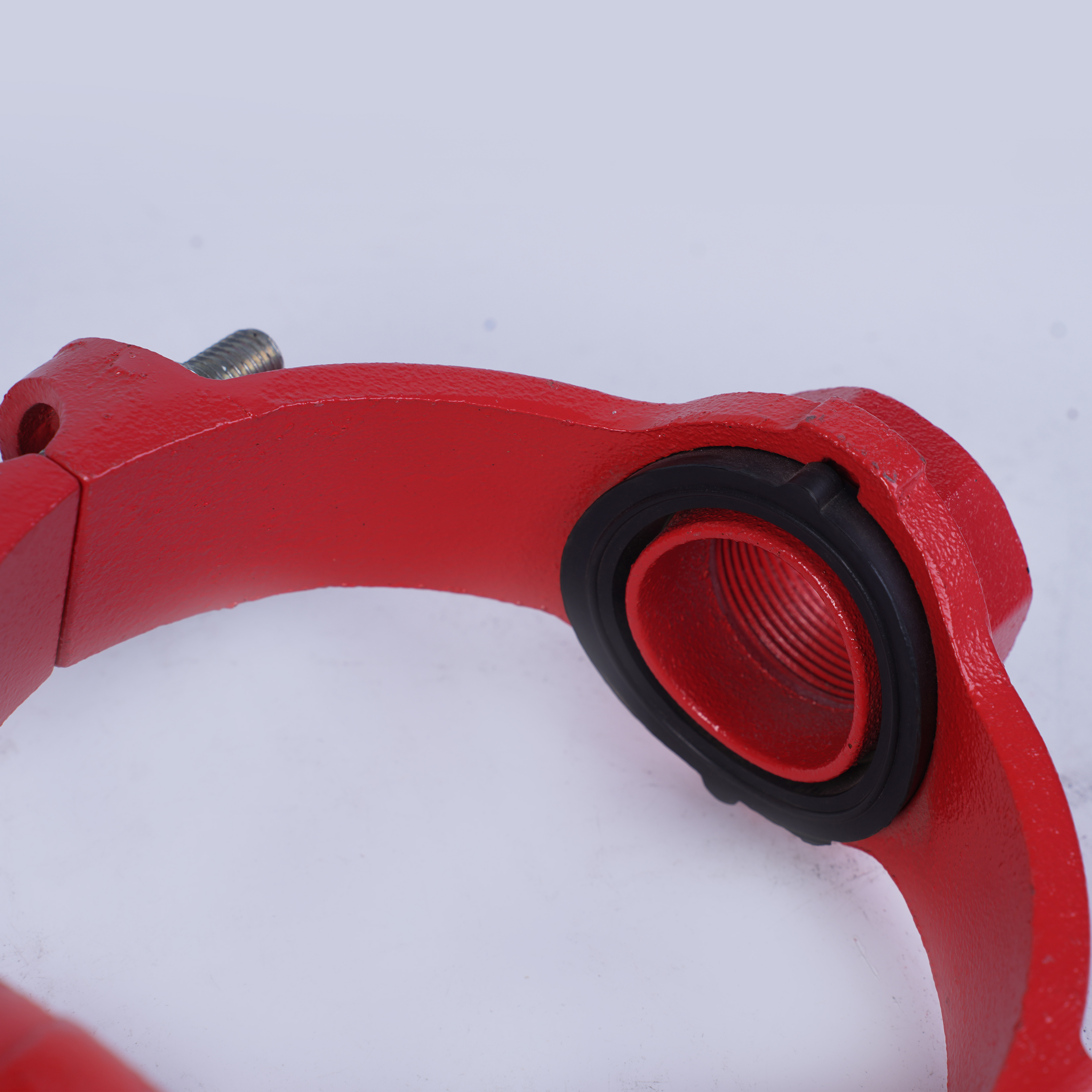

Equipped with EPDM rubber sealing gasket for reliable leak‑proof sealing
Split clamp‑on design, no need to roll groove on main pipe, only drill holes

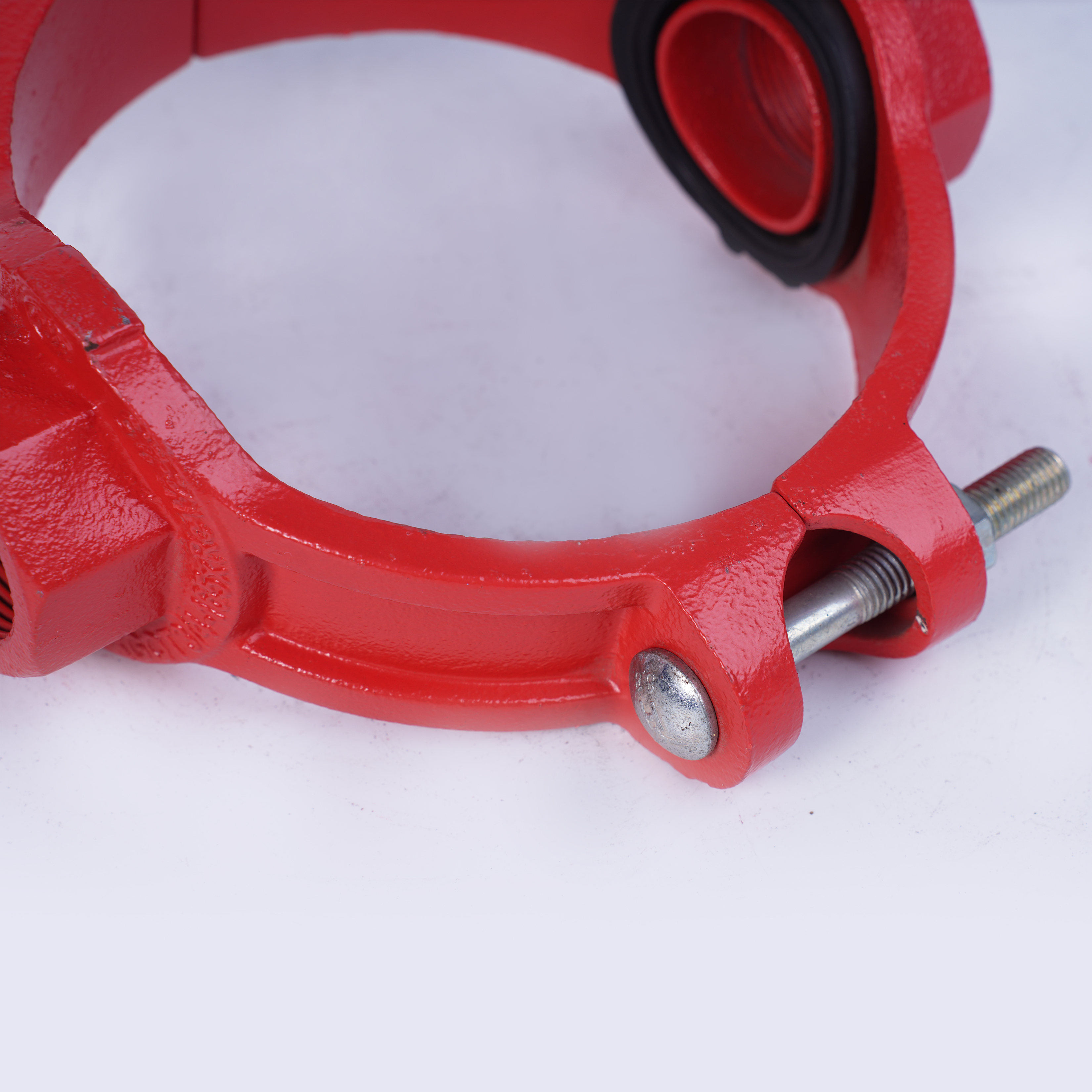

High‑strength galvanized bolts and nuts for quick bolt‑tighten installation
UL & CE certified, compliant with international fire‑safety standards

Product Advantages

Clamp‑on mechanical tapping structure, realize two‑direction branch outlets on main pipe, save pipe fittings
High‑strength ductile iron housing, resist pipeline water pressure and water hammer impact
EPDM rubber gasket with good ageing‑resistance, stable sealing under long‑term static water
On‑site installation without welding or hot work, improve construction safety and efficiency
Red epoxy powder coating, excellent rust‑proof performance for indoor fire‑protection environment
UL Listed certification, satisfy acceptance requirements of overseas fire‑protection projects

Application Scenarios

‑ Fire sprinkler grooved steel pipe straight connection
‑ Building fire‑fighting water supply grooved piping system
‑ Shopping mall, hotel, hospital fire pipe network assembly
‑ Factory, warehouse fire‑protection piping project
‑ Overseas fire‑safety engineering with UL certification requirement

Precision Valve Manufacturing

Professional Valve Manufacturer | Integrated Manufacturing

Raw Material Inspection

We select high-quality raw materials according to product specifications and international standards. All incoming materials are carefully inspected to ensure chemical composition, mechanical properties and traceability.

Forging & Casting

Advanced forging and casting processes are used to produce strong and reliable fire hydrant valve bodies and components. Strict process control ensures uniform structure, dimensional accuracy and excellent mechanical performance.

CNC Machining

Our CNC machining equipment provides precise and consistent processing of fire hydrant valve components. Critical dimensions, threads and sealing surfaces are strictly controlled to ensure accurate assembly and reliable sealing performance.

Surface Treatment

fire hydrant valve surfaces are professionally shot blasted to remove rust, scale and impurities. by epoxy powder coating, red fire‑retardant painting or hot‑dip galvanizing for long‑term anti‑corrosion performance.

Pressure Testing

Every fire hydrant valve undergoes strict pressure testing before shipment. Body and seat tests are performed according to applicable standards and customer specifications to verify pressure resistance and sealing reliability.

Quality Inspection

Our quality control team conducts comprehensive inspections throughout the production process. Finished valves are checked for dimensions, appearance, materials, pressure performance and overall quality before final approval and shipment.

What is grooved 90° elbow used for?

To achieve right‑angle turning for fire grooved steel pipelines.

Does it need welding during installation?

No, connect with grooved couplings after steel pipe grooving.

What certifications does this reducer own?

UL Listed and CE certification for fire‑protection application.
