Product Description
Item | Parameter |
|---|---|
Model | ZSZF‑16Q |
Body Material | Ductile Iron |
Seal Material | EPDM Rubber Wedge |
Connection Type | Grooved End |
Nominal Pressure | PN16 |
Applicable Media | Fire‑fighting water |
Working Temperature | 0℃ ~ 80℃ |
Size Range | DN50‑DN300 |
Ductile iron valve body, epoxy red coating, anti‑corrosion, fire‑fighting industry standard finish
Resilient wedge rubber gate, bi‑directional zero leakage, low flow resistance when fully open
Grooved end connection, fast installation for fire‑fighting grooved pipe system

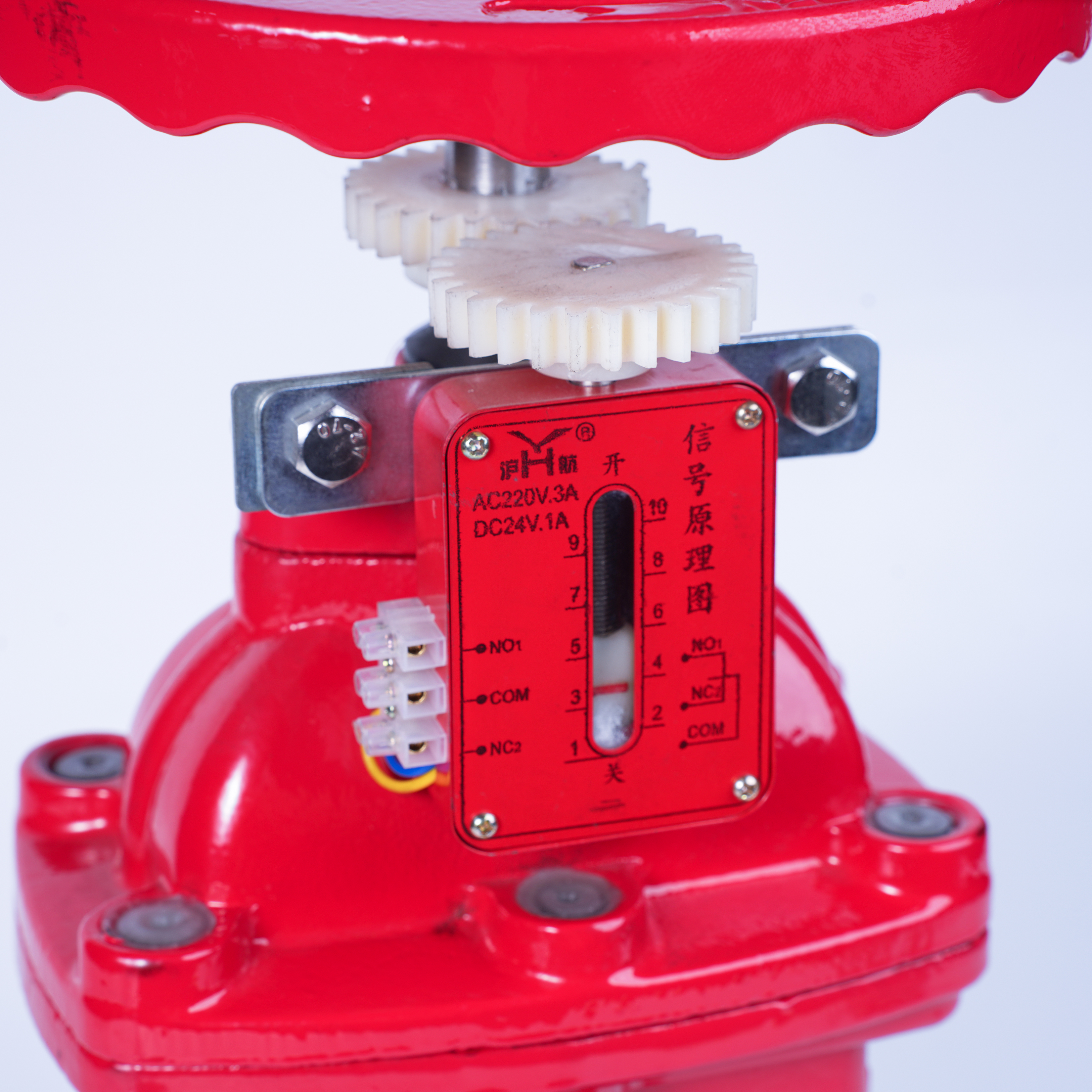

Built‑in signal feedback switch, remotely transmit valve open‑close status signal to fire control room
Handwheel manual operation, visible mechanical position indicator on top
UL, FM, CE certified, fully comply with international fire protection standards
directly meet overseas fire‑project acceptance requirements
Integral signal switch, stable signal transmission, effectively avoid hidden dangers caused by accidentally‑closed valve
EPDM full‑coated wedge, excellent sealing performance, zero‑leakage even under long‑term water pressure
Grooved connection greatly shortens construction period, convenient for later maintenance and replacement
Red epoxy anti‑corrosion coating, resist water‑medium erosion, long service life for underground and indoor fire pipelines
Compact overall structure, easy for on‑site debugging, stable and reliable for long‑term standby fire‑fighting system
Professional Valve Manufacturer | Integrated Manufacturing
We select high-quality raw materials according to product specifications and international standards. All incoming materials are carefully inspected to ensure chemical composition, mechanical properties and traceability.
fire hydrant valve surfaces are professionally shot blasted to remove rust, scale and impurities. by epoxy powder coating, red fire‑retardant painting or hot‑dip galvanizing for long‑term anti‑corrosion performance.
What is the function of signal device?
It sends electric signal to fire control cabinet, to monitor whether the valve is fully open or closed.
Is this valve for flow regulating?
It is only for full‑open / full‑close isolation. Not allowed for throttling adjustment.
What connection type does it adopt?
Grooved connection, match fire‑fighting grooved pipe fittings.
