Product Description
Item | Parameter |
|---|---|
Model | XD381X‑16Q |
Body Material | Ductile Iron |
Seal Material | EPDM Rubber Seat |
Drive Type | Worm‑gear handwheel operation |
Connection Type | Grooved End |
Nominal Pressure | PN16 |
Applicable Media | Fire‑fighting water |
Working Temperature | 0℃ ~ 80℃ |
Size Range | DN50‑DN300 |
Certification | UL Listed, FM Approved, CE |

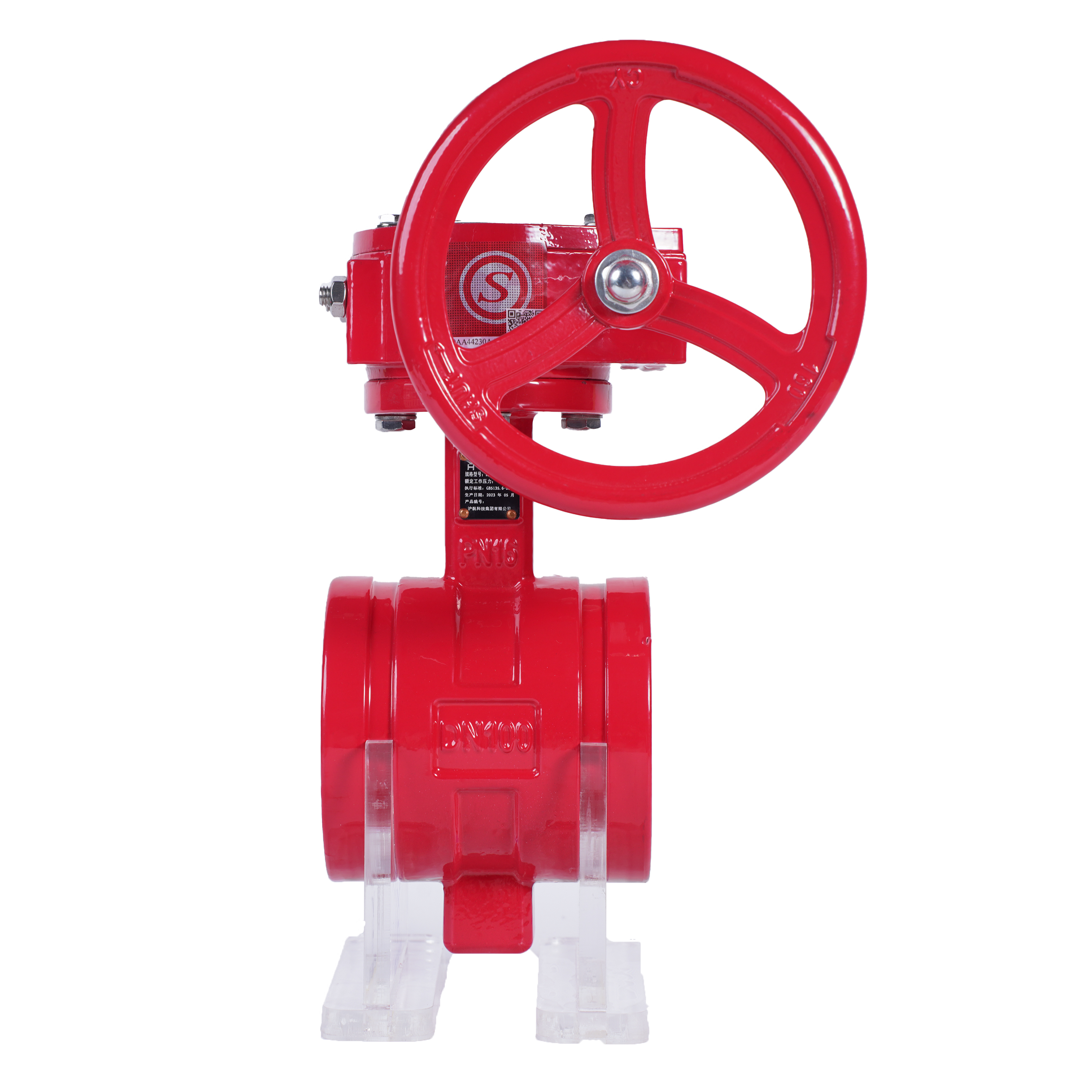

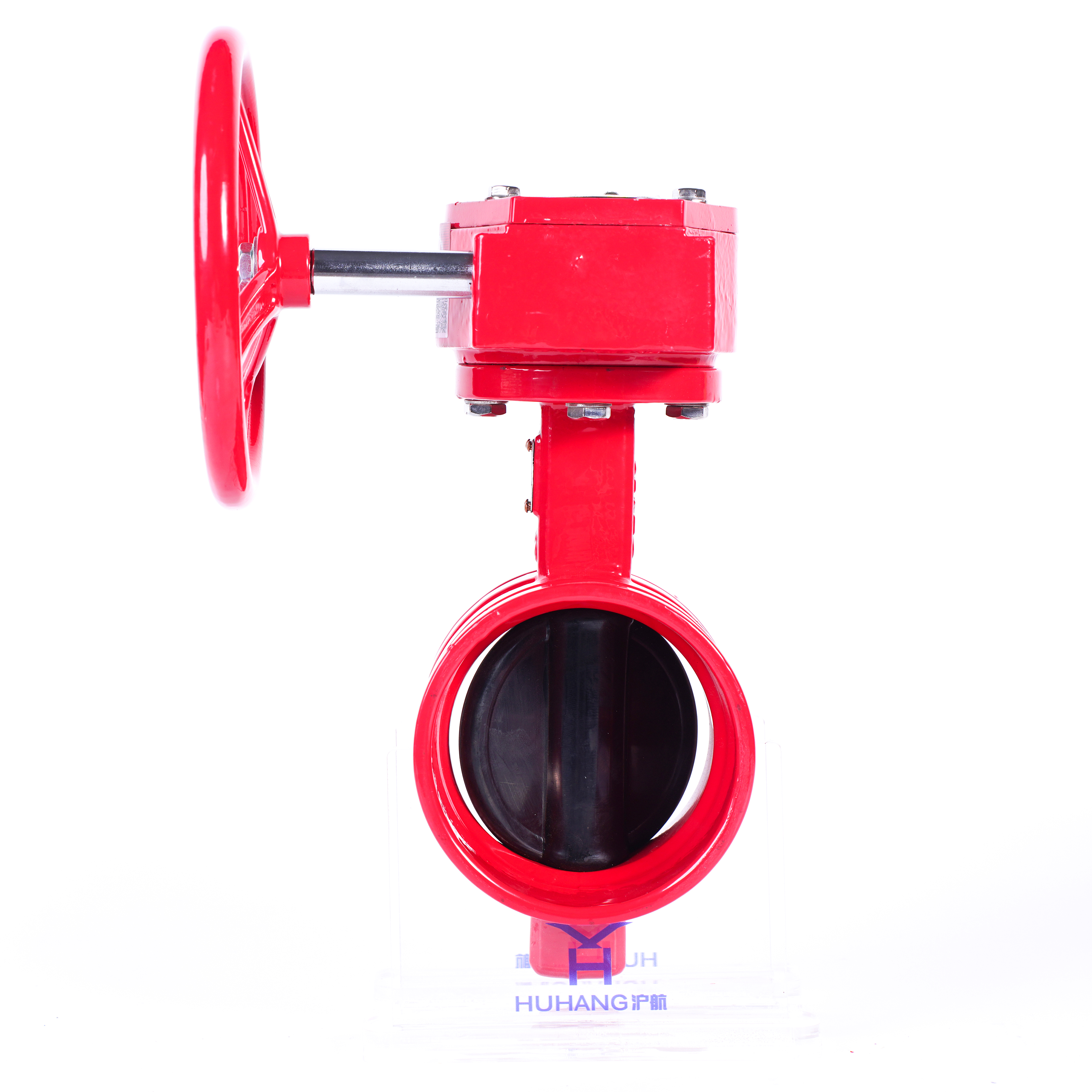

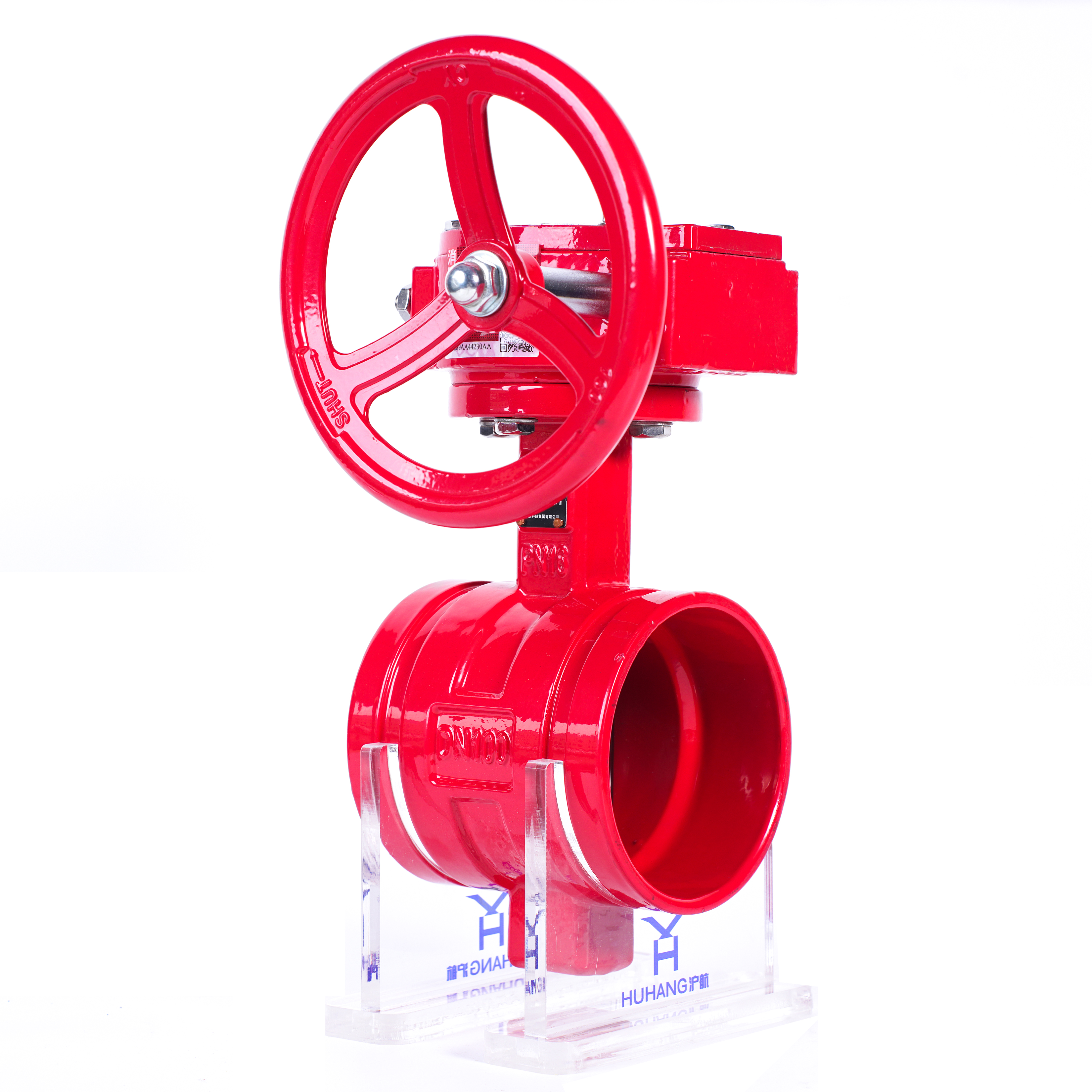

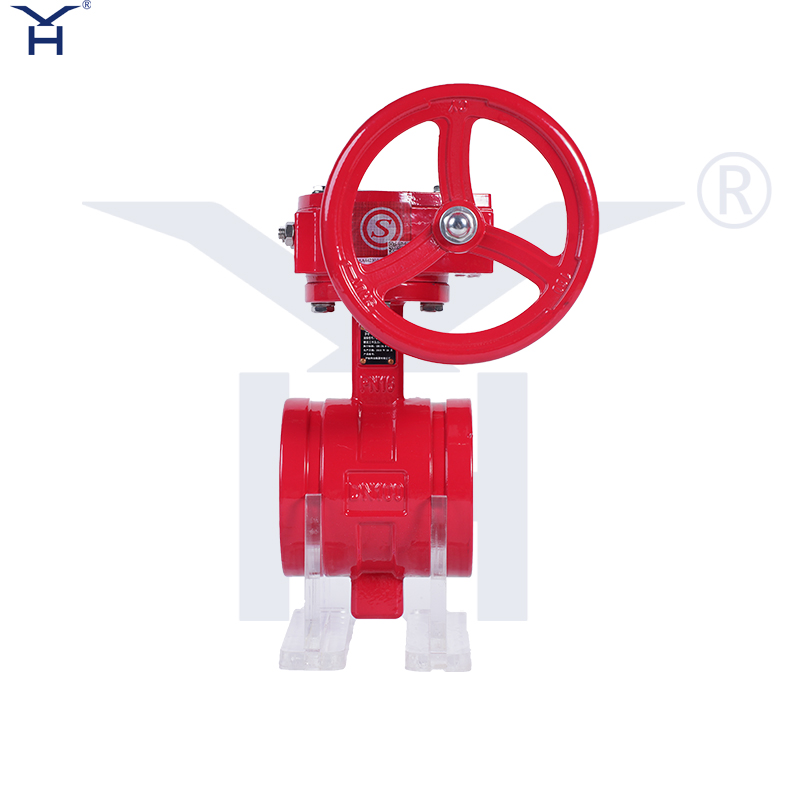

Ductile iron valve body with red epoxy coating, anti‑corrosion, meet fire‑protection industry surface treatment standard
Grooved end connection, quick assembly with fire grooved pipe fittings, convenient for on‑site installation

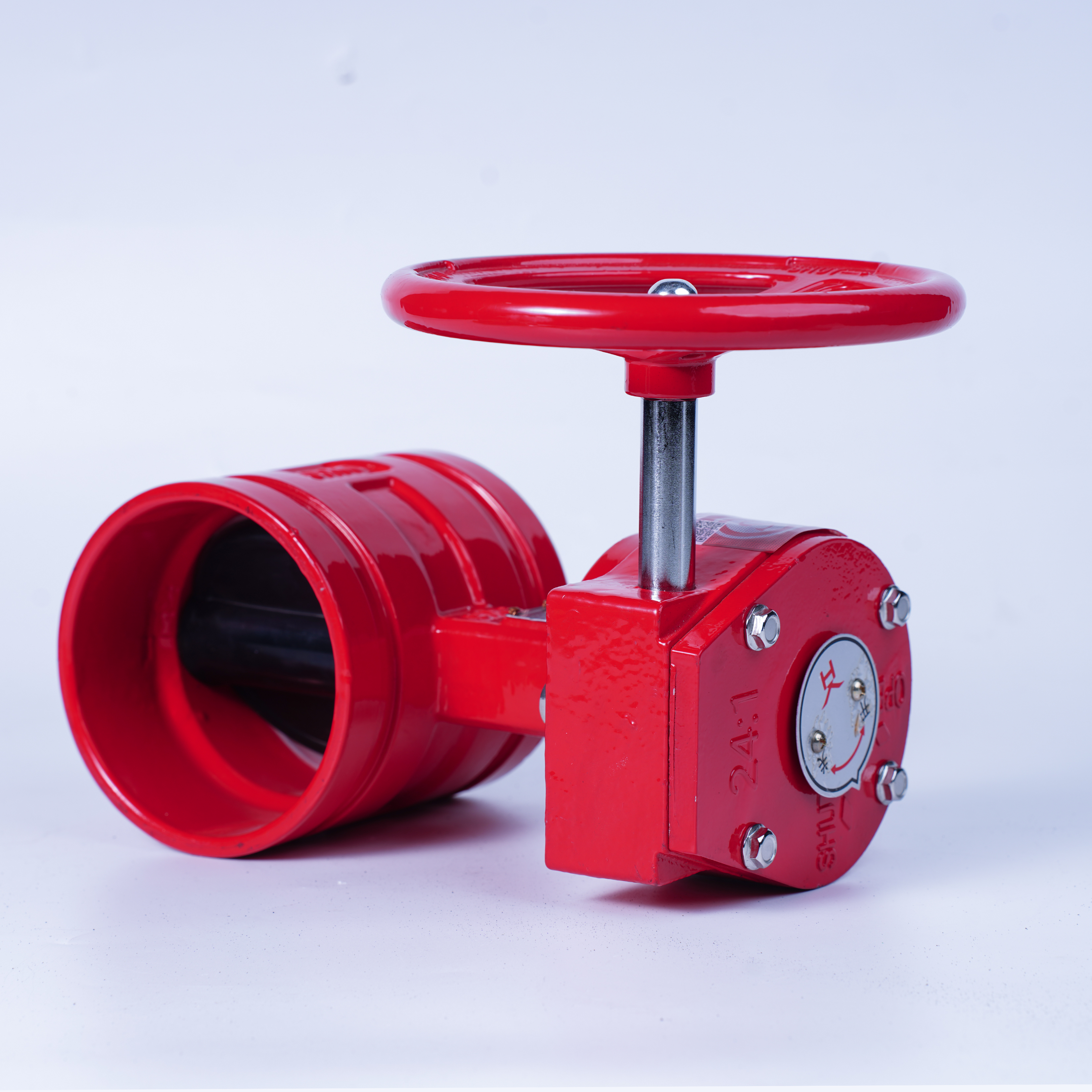

Worm‑gear handwheel driving, labor‑saving operation for large‑size valve opening and closing
Without signal feedback device, simple structure, manual observe opening scale on gear box

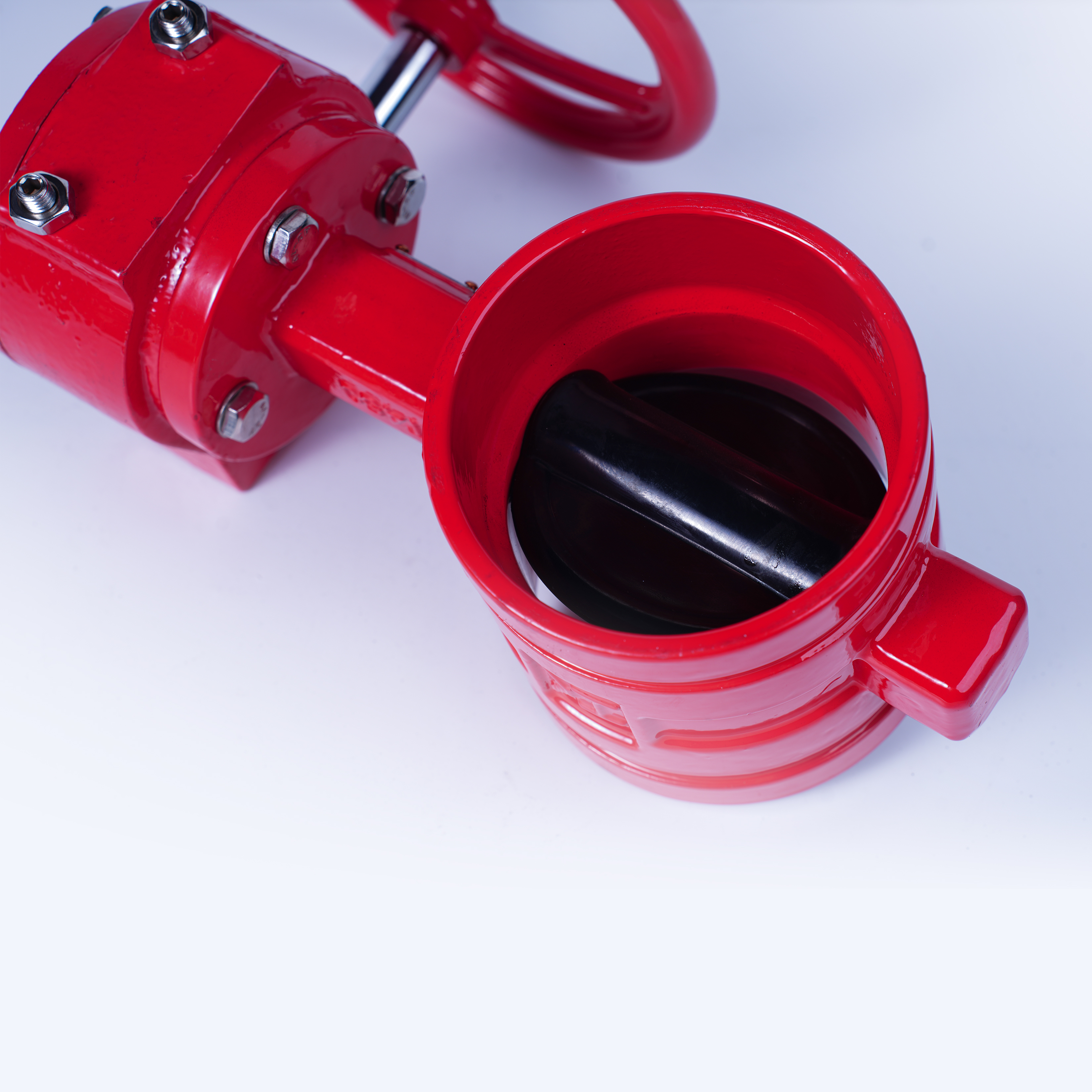

EPDM rubber seat, reliable bidirectional sealing performance for fire‑fighting water medium
Satisfy acceptance requirements for overseas fire‑protection projects
Grooved connection without welding, greatly shorten construction period, easy for later maintenance and replacement
Worm‑gear transmission mechanism, torque amplification, manual operation is light and stable for large diameter
Simple structure without signal component, lower cost, stable performance, low failure rate
EPDM soft seat with good sealing property, long service life under long‑term static water pressure
Compact and light‑weight body, save pipeline space, suitable for narrow pipe shaft and ceiling installation
‑ Building fire sprinkler pipeline systems
‑ Shopping mall, hotel, hospital and public building fire pipe networks
‑ Industrial plant fire‑fighting water piping
‑ Basement & underground garage fire water supply pipelines
‑ Large‑scale complex fire‑safety engineering projects
Professional Valve Manufacturer | Integrated Manufacturing
We select high-quality raw materials according to product specifications and international standards. All incoming materials are carefully inspected to ensure chemical composition, mechanical properties and traceability.
fire hydrant valve surfaces are professionally shot blasted to remove rust, scale and impurities. by epoxy powder coating, red fire‑retardant painting or hot‑dip galvanizing for long‑term anti‑corrosion performance.

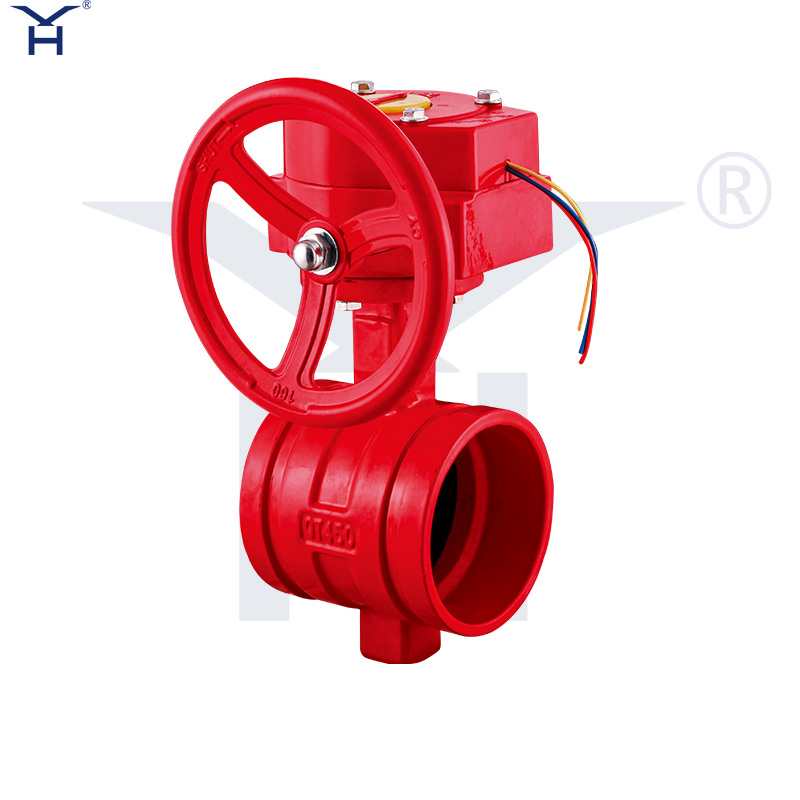

What is the difference compare with signal butterfly valve?
This version has no signal feedback switch, cannot transmit electric signal to fire control cabinet.
Can this butterfly valve be used for flow adjustment?
Only for full‑open / full‑close isolation, throttling regulating service is prohibited.
What are the advantages of grooved connection?
No welding required, fast installation, convenient disassembly for maintenance.
